Description

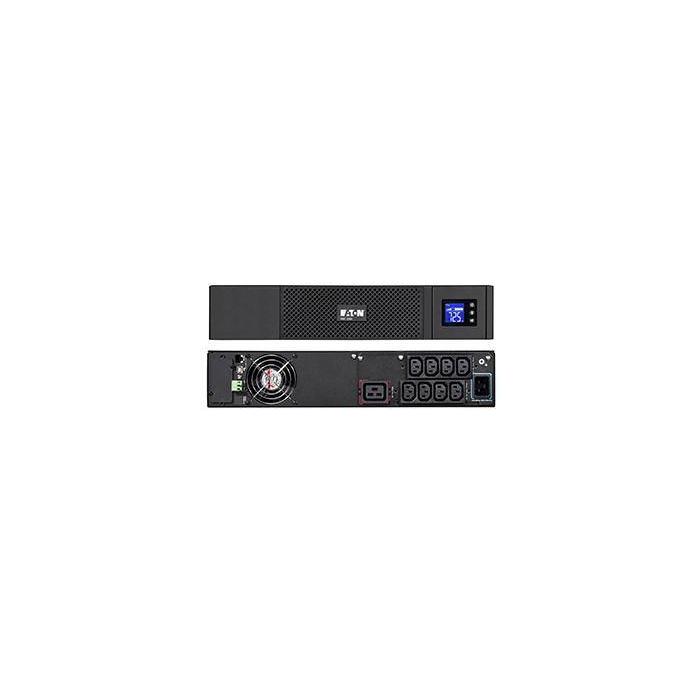

The Eaton 5SC2200IRT is a line-interactive UPS with 2.2 kVA and 1980 W of output power, offering nine AC outlets via C13 and C19 couplers to connect multiple devices. It supports an input voltage between 184 V and 276 V, with regulated output from 220 to 240 V and a frequency of 50/60 Hz, in addition to protecting against excessive surges. It includes a USB port, RS-232 interface, and C20 input connector, with a noise level of 45 dB. Its input accepts frequencies from 45 to 65 Hz, making it compatible with variable network environments.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 2.2 kVA
- Output power: 1980 W
- Input operation voltage (min): 184 V
- Input operation voltage (max): 276 V
- Input frequency: 45/65 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency regulation: 50/60 Hz
- Noise level: 45 dB
- Power protection features: Overdischarge
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 9 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
Battery
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Product colour: Black
- Display type: LED
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
Weight & dimensions
- Width: 441 mm
- Depth: 552 mm
- Height: 86.2 mm
- Weight: 26.5 kg
Logistics data
- Harmonized System (HS) code: 85078000
