Description

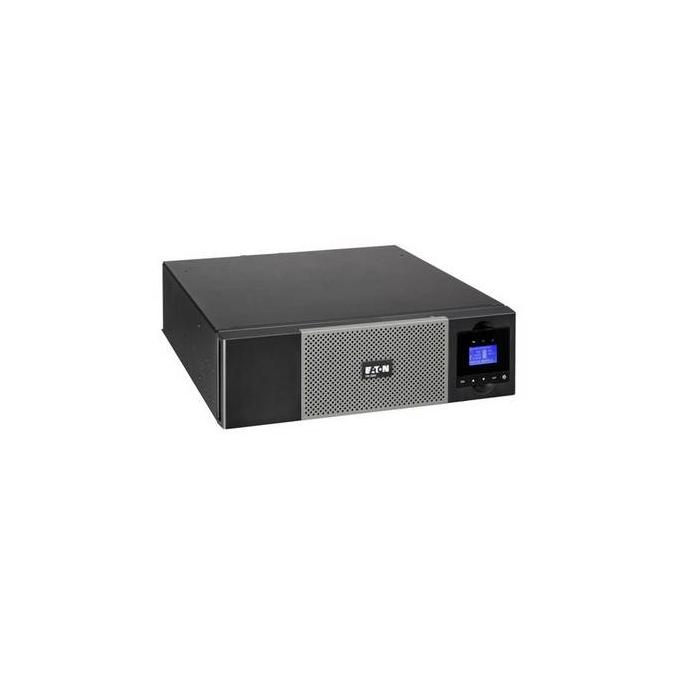

Eaton 5PX Gen2 uninterruptible power supply (UPS) with line-interactive topology, 3 kVA and 3000 W output power, including 10 AC outlets distributed between C13 and C19 couplers, plus a C20 input connector. This model offers pure sine wave output, an input voltage range from 160 to 294 V, a frequency of 47/70 Hz and a noise level of 40 dB for discreet work environments. It features protection against excessive discharge, hot-swap battery for replacement without shutting down the equipment, and connectivity options such as USB port, RS-232 interface and 10/100/1000Base-T(X) wiring technology. Its design integrates a serial port for advanced management, facilitating remote system monitoring.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 3 kVA
- Output power: 3000 W
- Waveform: Pure sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 294 V
- Input frequency: 47/70 Hz
- Noise level: 40 dB
- Power protection features: Overdischarge
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 10 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
- Cabling technology: 10/100/1000Base-T(X)
Battery
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Compliance certificates: CE
- Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL1778, CSA22.2
Sustainability
- Sustainability compliance: Yes
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 438 mm
- Depth: 483 mm
- Height: 85.5 mm
- Weight: 31.7 kg
Packaging data
- Management card included: Yes
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Output connections: 8 x IEC C13 (10A) 2 x IEC C19 (16A)
- Nominal output voltage: 230 V
