Description

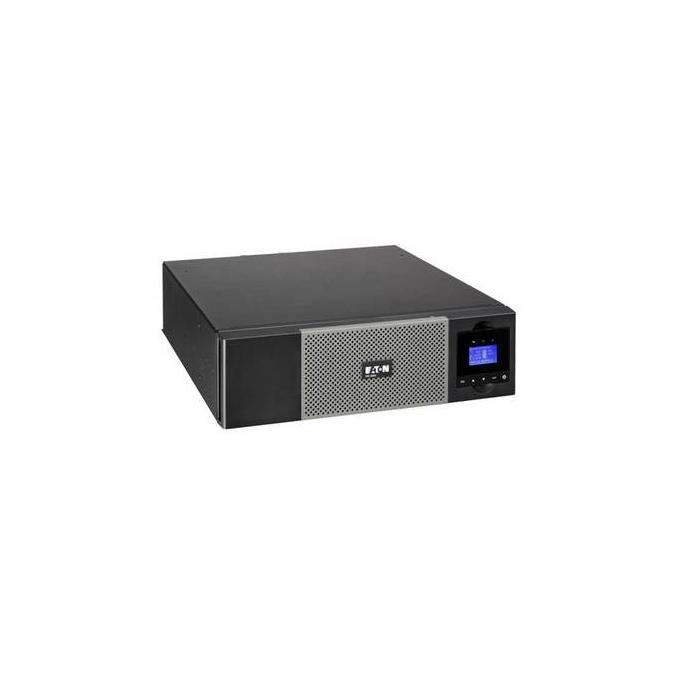

The Eaton 5PX3000IRT2UG2 is a Line-Interactive UPS with 3 kVA and 3000 W of output power, designed to power critical equipment with a pure sine wave. It features 10 AC outputs distributed between C13 and C19 couplers, as well as input via a C20 connector, and offers an RS-232 serial interface and USB port for management and monitoring. It operates with an input voltage between 160 V and 294 V, supporting frequencies from 47 to 70 Hz, and includes a hot-swap battery and automatic battery test to ensure its status. Its noise level is 40 dB, and it protects against excessive discharge, maintaining quiet and reliable operation in professional environments.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 3 kVA
- Output power: 3000 W
- Waveform: Pure sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 294 V
- Input frequency: 47/70 Hz
- Noise level: 40 dB
- Power protection features: Overdischarge
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 10 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
Battery
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Compliance certificates: CE
- Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL1778, CSA22.2
Sustainability
- Sustainability compliance: Yes
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 438 mm
- Depth: 603 mm
- Height: 85.5 mm
- Weight: 31.7 kg
Packaging data
- Management card included: No
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Output connections: 8 x IEC C13 (10A) 2 x IEC C19 (16A)
- Nominal output voltage: 230 V
