Description

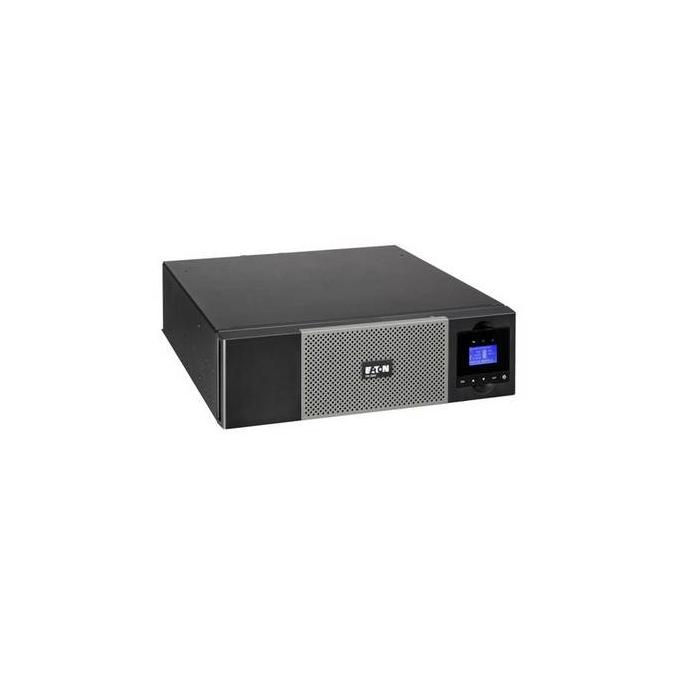

The Eaton 5PX Gen2 is a line-interactive UPS available in tower or rack-mount format, presented in black and with an output capacity of 2.2 kVA and 2200 W, making it suitable for protecting critical equipment. It provides a pure sine wave, with an operational input voltage range between 160 V and 294 V, and an input frequency of 47/70 Hz. It includes protection functions against excessive discharge, automatic battery testing, and a noise level of 40 dB. In terms of connectivity, it features a USB port, an RS-232 serial port, and C20 input couplers along with C13 and C19 output couplers, facilitating the management and connection of various devices.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 2.2 kVA
- Output power: 2200 W
- Waveform: Pure sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 294 V
- Input frequency: 47/70 Hz
- Noise level: 40 dB
- Power protection features: Overdischarge
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
Battery
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Compliance certificates: CE
- Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL1778, CSA22.2
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 438 mm
- Depth: 603 mm
- Height: 85.5 mm
- Weight: 28.2 kg
Packaging data
- Management card included: Yes
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Output connections: 8 x IEC C13 (10A) 2 x IEC C19 (16A)
- Nominal output voltage: 230 V
