Description

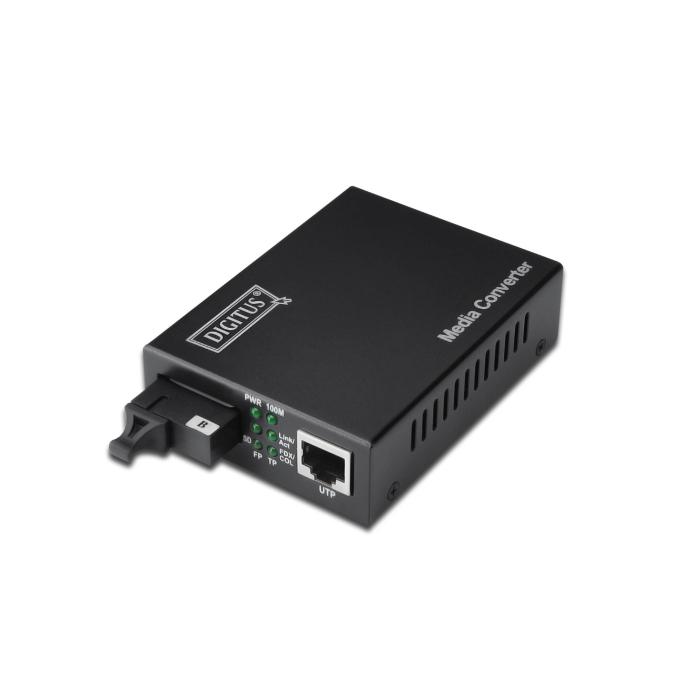

Converts Fast Ethernet traffic between an RJ45 port and a single-mode fibre optic connection with the Digitus bidirectional media converter, which supports speeds of 10 and 100 Mbit/s and operates in full duplex. This model uses a 100Base-TX input interface and a 100Base-FX output with an SC connector, achieving transfer distances of up to 20 km thanks to its 1550 nm wavelength. Its black metal housing integrates LED indicators for LAN, link and status, making link monitoring easy. With plug-and-play configuration and a single-mode fibre structure, this converter is a straightforward solution for extending your network without any additional setup.
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 100Base-TX, 10Base-T
- Converter output interface: 100Base-FX
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Duplex system: Full
Performance
- Maximum transfer distance: 20000 m
- Wavelength: 1550 nm
- Fiber mode structure: Single-mode
Features
- Internal: No
- Plug and Play: Yes

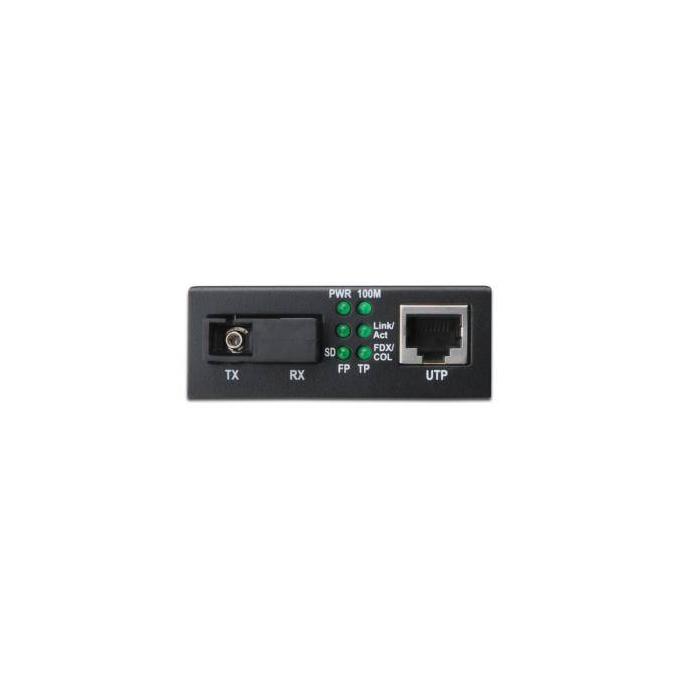

- LED indicators: LAN, Link, Status
- Product colour: Black
- Housing material: Metal
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
- DC-in jack: Yes
Power
- Input voltage: 5 V
- Power over Ethernet (PoE): No
- External power adapter: Yes
Weight & dimensions
- Width: 70 mm
- Depth: 95 mm
- Height: 26 mm
- Weight: 200 g
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
Packaging content
- User guide: Yes
Packaging data
- Package width: 130 mm
- Package depth: 55 mm
- Package volume: 1716 cm³
- Package weight: 450 g
Certificates
- Certification: CE, FCC
Logistics data
- Country of origin: China
- UK Trade Tariff code: 85176200
- Harmonized System (HS) code: 85176990
