Description

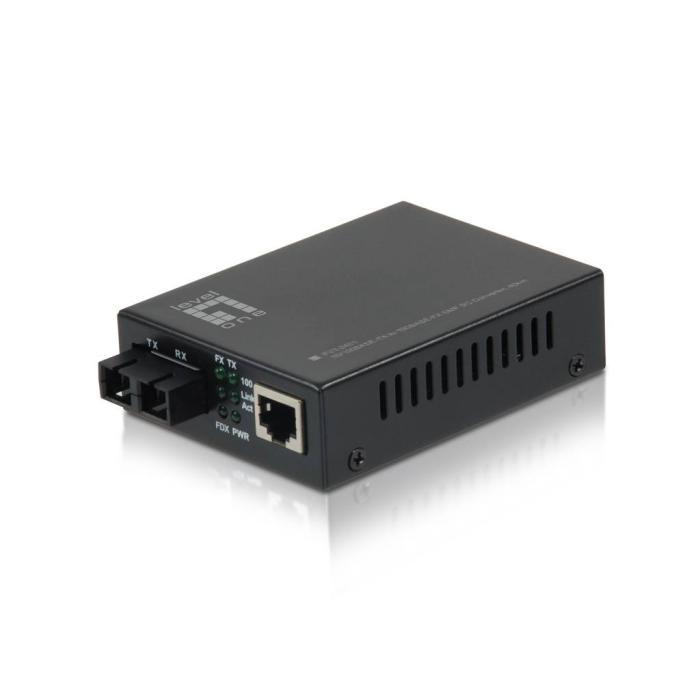

The LevelOne FVT-2401 is a black media converter that connects copper Ethernet networks with single-mode fibre, reaching transfer distances of up to 40 kilometres. This unit operates at a wavelength of 1310 nm and offers a maximum speed of 100 Mbit/s, compatible with the IEEE 802.3, 802.3u and 802.3x standards. It features one RJ-45 port and one SC fibre connector, with support for full or half duplex and flow control. It includes link loss return and pass-through functions, as well as LED indicators for activity, link and power, with a DC input for its power supply. It is a practical solution for extending your network using single-mode fibre with cable diameters of 8.3/125, 9/125 or 10/125 µm.
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Flow control support: Yes
- Store-and-forward: Yes
- Duplex system: Full, Half
- Link Loss Carry Forward (LLCF) supported: Yes
- Link Loss Return (LLR) supported: Yes
Performance
- Maximum transfer distance: 40000 m
- Wavelength: 1310 nm
- Fiber mode structure: Single-mode
- Fiber cable diameters supported (core/cladding): 8.3/125, 9/125, 10/125 µm
Features
- Internal: No
- LED indicators: Activity, Link, Power
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC

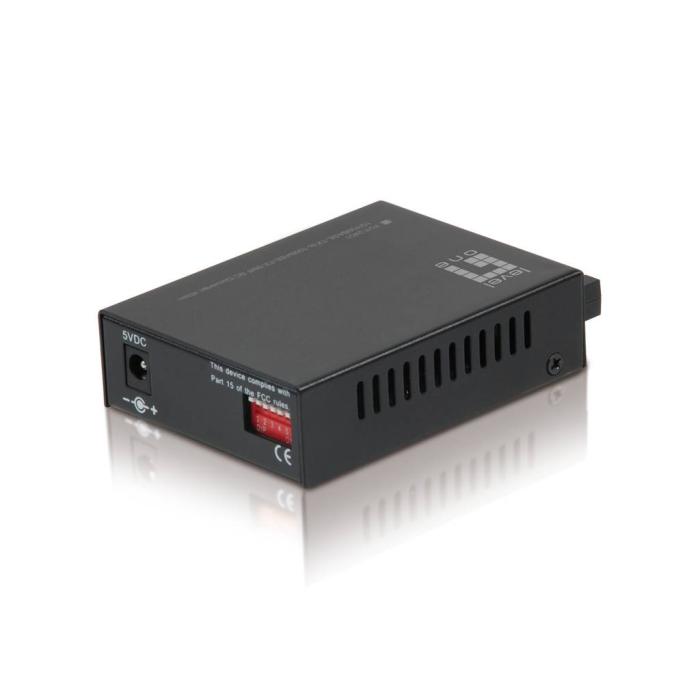

- DC-in jack: Yes
Power
- Input voltage: 5 V
- Input current: 1 A
Weight & dimensions
- Width: 94 mm
- Depth: 70 mm
- Height: 25 mm
- Weight: 420 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 5 - 90%
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 235 mm
- Package depth: 125 mm
- Package height: 55 mm
- Package weight: 494 g
- Package type: Box
Certificates
- Compliance certificates: RoHS
- Certification: FCC, CE
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
