Description

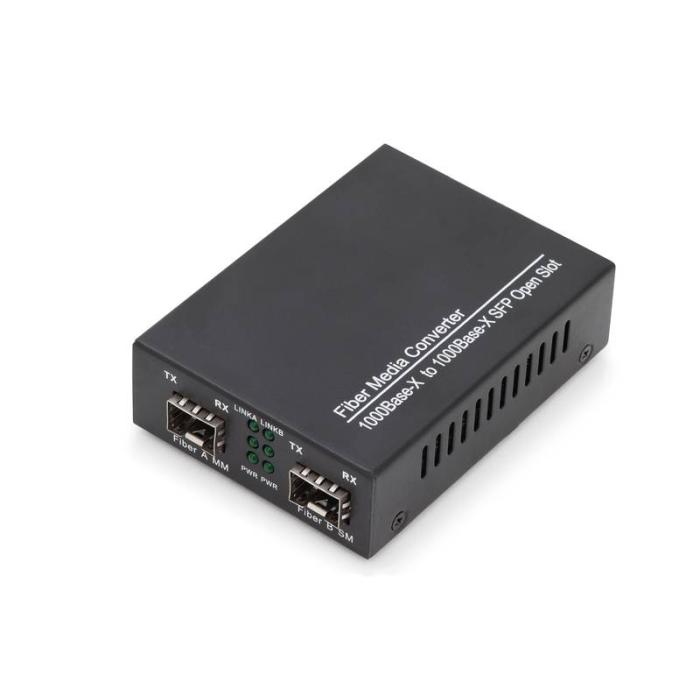

Connect network equipment via fibre optic with the Digitus Gigabit Multimode/Singlemode Media Converter SFP, a wired device that supports transfer speeds of 100, 1000 and 1250 Mbit/s over Ethernet LAN with 100Base-X and 1000Base-X input and output interfaces. This black model supports fibre diameters from 8.3/125 to 100/140 µm and operates in both multimode and singlemode, with a wavelength of 1550 nm and two fibre channel ports with SFP connector. It includes LED indicators for activity, link, power and status, plus a DC input plug and external power adapter for operation, while its internal design is not integrated into the chassis.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 1000Base-X
- Converter output interface: 100Base-X, 1000Base-X
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 100, 1000 Mbit/s
- Fiber ethernet cabling technology: 100BASE-X, 1000BASE-X
- Data transfer rate: 1250 Mbit/s
Performance
- Wavelength: 1550 nm
- Fiber mode structure: Multi-mode, Single-mode
- Fiber cable diameters supported (core/cladding): 8.3/125, 8.7/125, 9/125, 10/125, 50/125, 62.5/125, 100/140 µm
Features
- Internal: No
- LED indicators: Activity, Link, Power, Status
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Fiber ports quantity: 2
- Fiber optic connector: SFP
- DC-in jack: Yes
Power
- Input voltage: 5 V
- Input current: 1 A
- Power consumption (typical): 3.5 W
- Power over Ethernet (PoE): No
- External power adapter: Yes
Weight & dimensions
- Width: 95 mm
- Depth: 70 mm
- Height: 26 mm
- Weight: 300 g
Operational conditions
- Operating temperature (T-T): -10 - 55 °C
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 130 mm
- Package depth: 250 mm
- Package height: 55 mm
- Package volume: 1787.5 cm³
- Package weight: 350 g
Logistics data
- Country of origin: China
- UK Trade Tariff code: 85176200
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 394 mm
- Master (outer) case length: 550 mm
- Master (outer) case height: 254 mm
- Master (outer) case gross weight: 7 kg
- Master (outer) case volume: 55041.8 cm³
- Products per master (outer) case: 20 pc(s)
