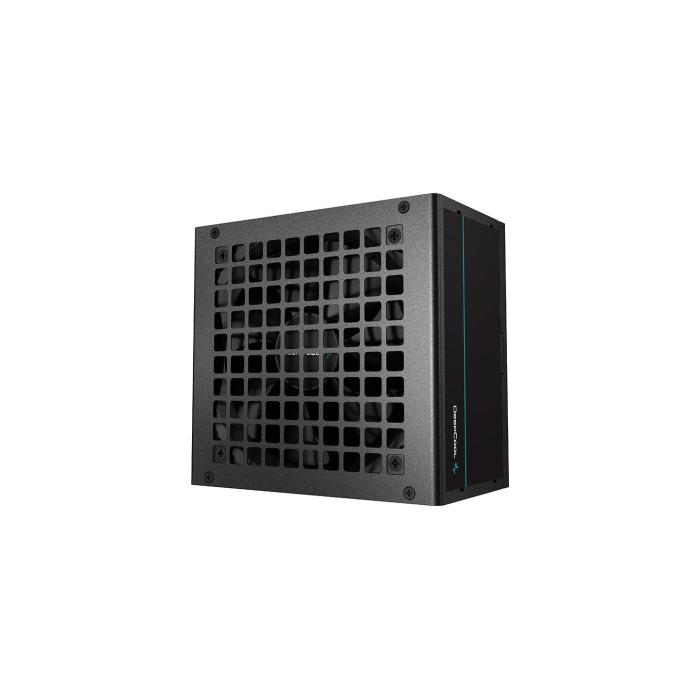

DeepCool PF500 power supply unit 500 W 20+4 pin ATX ATX Black

$36.18
$36.18 without VAT

DeepCool PF500, 500 W, 220 - 240 V, 50 Hz, 100 W, 480 W, 100 W.   More info

Brand: DEEPCOOL
SKU: 100433 PRC: 440160 EAN: 6933412711254 PN: R-PF500D-HA0B-EU

Description

DeepCool PF500, 500 W, 220 - 240 V, 50 Hz, 100 W, 480 W, 100 W

Specifications

Power

  • Total power: 500 W
  • AC input voltage: 220 - 240 V
  • AC input frequency: 50 Hz
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 480 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 12.5 W
  • Max output current (+3.3V): 15 A
  • Max output current (+12V): 40 A
  • Max output current (+5V): 15 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 2.5 A
  • Hold time: 16 ms
  • Efficiency: 85%
  • Power protection features: Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 55 cm
  • Number of SATA power connectors: 4
  • SATA power cable length: 450, 600, 750, 900 mm
  • EPS power connector (4+4 pin): Yes
  • PCI Express power connectors (6+2 pin): 2

Performance

  • 80 PLUS certification: 80 PLUS
  • Purpose: PC/Server
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.4
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Cooling type: Active

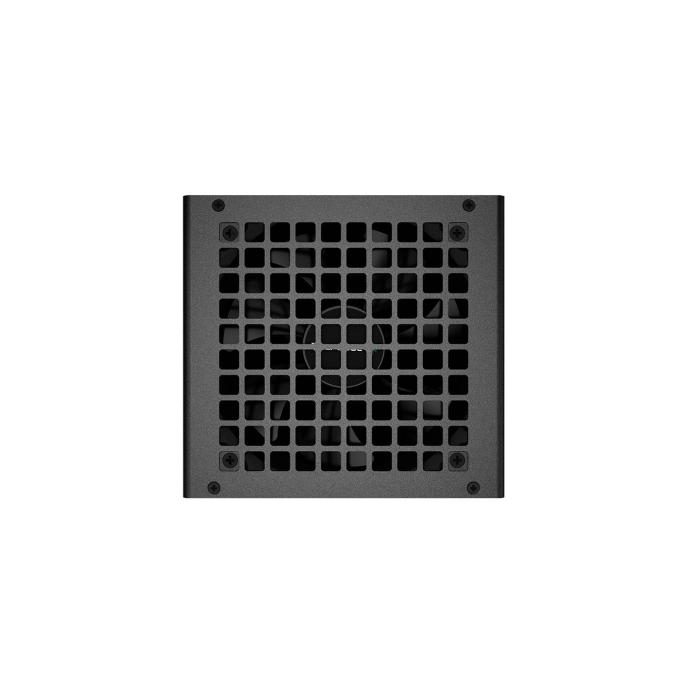

  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • On/off switch: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C

Packaging content

  • Cables included: AC

Weight & dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm

Packaging data

  • Package type: Box
