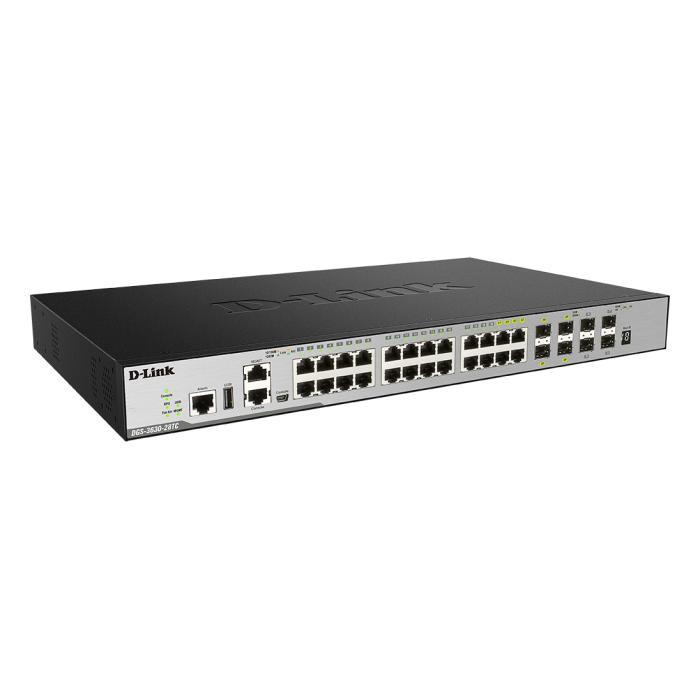

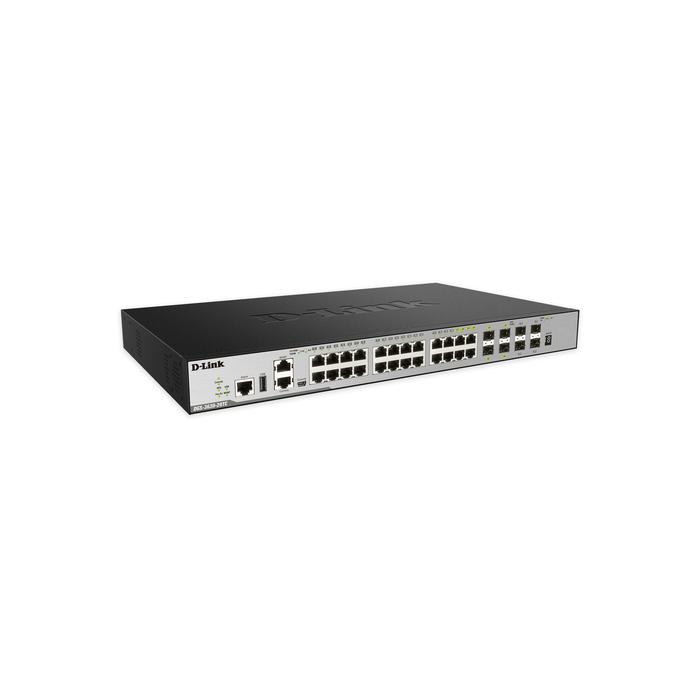

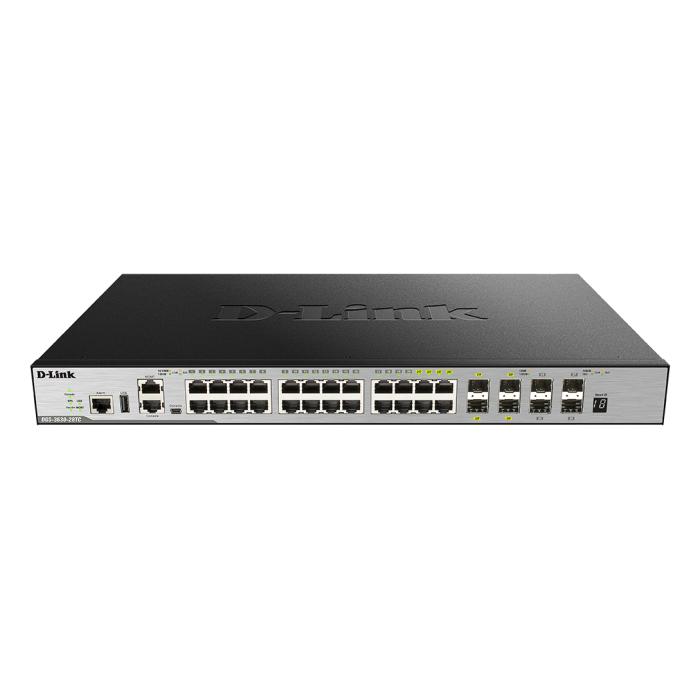

Name: D-Link Gigabit L3 Stackable Managed Switches DGS-3630 Series Standard Image
Brand: D-LINK
Availability: OutOfStock

D-Link Gigabit L3 Stackable Managed Switches DGS-3630 Series Standard Image

Not avaliable

D-Link Gigabit L3 Stackable Managed Switches DGS-3630 Series Standard Image. More info

Amount

Brand: D-LINK

SKU: 78292 PRC: 148574 EAN: 790069425622 PN: DGS-3630-28TC/SI

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic classification: Yes
ARP inspection: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 20
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 20
Combo SFP ports quantity: 4
SFP+ module slots quantity: 4
Console port: RJ-45/Mini-USB
USB 2.0 ports quantity: 1
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Routing entries: 16000
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Ethernet Ring Protection Switching (ERPS): Yes
VLAN support: Yes
Virtual LAN features: IP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacke
Number of VLANs: 4094

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.24 Mpps
MAC address table: 68000 entries
Number of queues: 8
Static route: Yes
Number of static routes: 512
Number of IP interfaces: 256
Jumbo frames support: Yes
Jumbo frames: 12000
Packet buffer memory: 4 MB

Security

DHCP features: DHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SSH, SSH-2, SSL/TLS
MAC address filtering: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN, Port-based authentication
Root protection: Yes
Authentication type: IEEE 802.1x
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)

Multicast features

Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Yes

Protocols

Management protocols: SNMP, NTPv3/v4, Telnet
Routing protocols: BGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP
IP Source Guard (IPSG): Yes

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)
Safety: cUL, CB, CE, CCC, BSM
Electromagnetic compatibility: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC

Performance

Virtual stacking (units): 32
Noise level: 52.7 dB
Dying Gasp: Yes
Mean time between failures (MTBF): 300190.46 h

Power

Power source: AC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 42.4 W
Surge protection: Yes
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 144.58 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 259.8 mm
Height: 44 mm
Weight: 3.74 kg

Packaging data

Package width: 415 mm
Package depth: 528 mm
Package height: 91 mm
Package weight: 5.33 kg

Technical details

Shipping (inner) case height: 45 cm
Shipping (inner) case width: 29.6 cm
Shipping (inner) case length: 54.9 cm
Shipping (inner) case net weight: 14.1 kg
Products per shipping (inner) case: 3 pc(s)
Pallet gross weight (air): 562.8 kg
Master (outer) cases per pallet (air): 32 pc(s)
Products per pallet (air): 96 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 193.5 cm
Pallet gross weight (sea): 562.8 kg
Master (outer) cases per pallet (sea): 32 pc(s)
Products per pallet (sea): 96 pc(s)
Pallet height (sea): 193.5 cm
Shipping (inner) case gross weight: 17 kg

Certificates

Compliance certificates: BSMI, CCC, CE, Federal Communications Commission (FCC), RoHS, VCCI

Logistics data

Harmonized System (HS) code: 85176990
