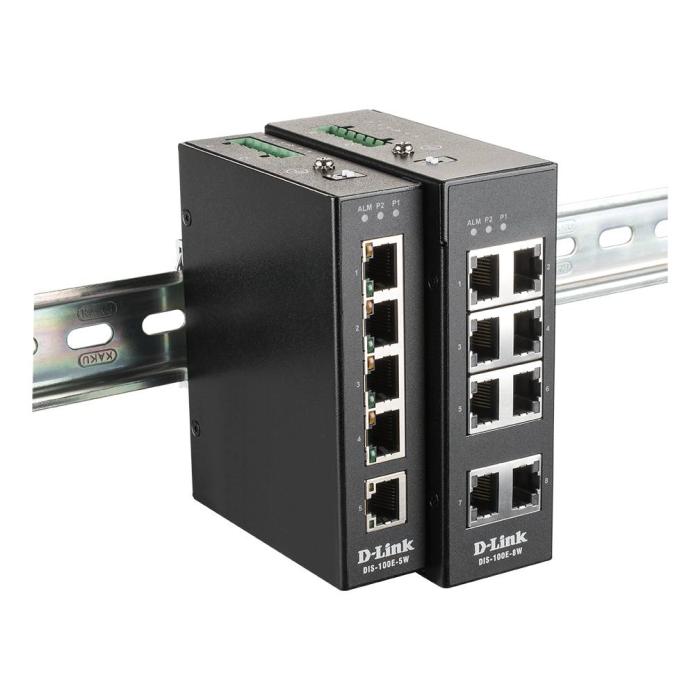

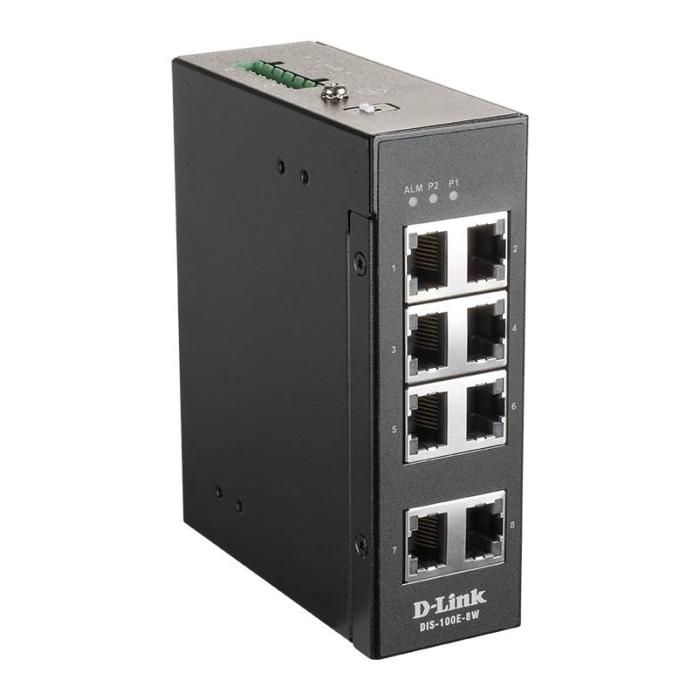

D-Link 8-Port Unmanaged Industrial Switch with 8 x 10/100 BaseT(X) ports

$201.86
$201.86 without VAT

D-Link 8-Port Unmanaged Industrial Switch with 8 x 10/100 BaseT(X) ports.   More info

Brand: D-LINK
SKU: 81324 PRC: 237291 EAN: 790069441288 PN: DIS-100E-8W

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Switch layer: L2

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Relay outputs: 1

Network

  • Networking standards: IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T
  • Full duplex: Yes
  • Flow control support: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • MAC address table: 1000 entries
  • Store-and-forward: Yes

Design

  • Rack mounting: Yes
  • Stackable: Yes
  • Product colour: Black
  • International Protection (IP) code: IP30
  • Wall mountable: Yes
  • DIN rail mounting: Yes

Performance

  • Plug and Play: Yes
  • Mean time between failures (MTBF): 219000 h

Power

  • DC input voltage: 12 - 58 V
  • Power consumption (typical): 1.41 W
  • Power consumption (max): 1.64 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): -40 - 75 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 39 mm
  • Depth: 96.9 mm
  • Height: 117.8 mm
  • Weight: 405 g

Packaging data

  • Package width: 140 mm
  • Package depth: 178 mm
  • Package height: 83 mm
  • Package weight: 570 g

Technical details

  • Shipping (inner) case height: 20 cm
  • Shipping (inner) case width: 30.5 cm
  • Shipping (inner) case length: 43 cm
  • Shipping (inner) case net weight: 6.64 kg
  • Products per shipping (inner) case: 10 pc(s)
  • Pallet gross weight (air): 257.4 kg
  • Master (outer) cases per pallet (air): 36 pc(s)
  • Products per pallet (air): 360 pc(s)
  • Pallet gross length: 120 cm
  • Pallet gross width: 110 cm
  • Pallet height (air): 135 cm
  • Pallet gross weight (sea): 377.1 kg
  • Master (outer) cases per pallet (sea): 54 pc(s)
  • Products per pallet (sea): 540 pc(s)
  • Pallet height (sea): 195 cm
  • Shipping (inner) case gross weight: 6.65 kg

Certificates

  • Certification: UL 60950‑1 CE FCC

Logistics data

  • Harmonized System (HS) code: 85176990
