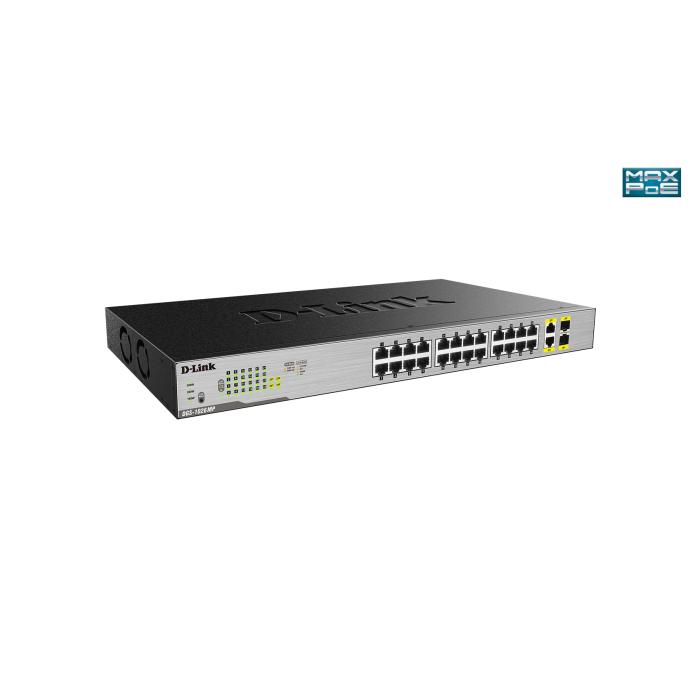

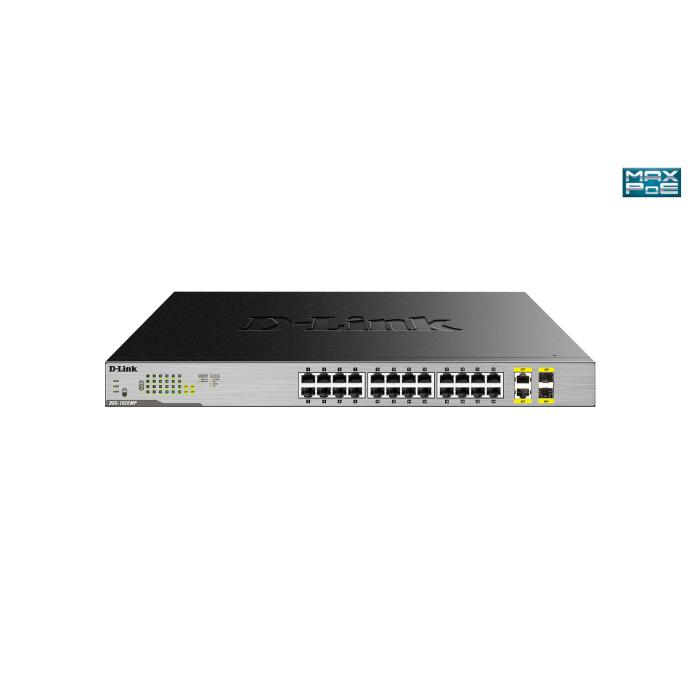

Name: D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports
Brand: D-LINK
Price: 438.95 USD
Availability: InStock

D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports

$438.95

$438.95 without VAT

D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports. More info

Amount

Brand: D-LINK

SKU: 77545 PRC: 138430 EAN: 790069426667 PN: DGS-1026MP

Description

Specifications

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Auto MDI/MDI-X: Yes

Data transmission

Switching capacity: 52 Gbit/s
Throughput: 38.69 Mpps
Forwarding rate: 38.69 Mpps
MAC address table: 8192 entries
Store-and-forward: Yes
Packet buffer memory: 0.512 MB

Design

Rack mounting: Yes
Product colour: Black, Grey
LED indicators: Activity, Link, PoE, Power, Power fail, Speed
Number of fans: 2 fan(s)
Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1

Performance

Buffer size: 512 KB
Mean time between failures (MTBF): 205975 h

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 444.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1515 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 250.4 mm
Height: 44 mm
Weight: 3.1 kg

Packaging data

Package width: 388 mm
Package depth: 506 mm
Package height: 90 mm
Package weight: 3.7 kg

Technical details

Shipping (inner) case height: 41 cm
Shipping (inner) case width: 20.5 cm
Shipping (inner) case length: 52 cm
Shipping (inner) case net weight: 8.39 kg
Products per shipping (inner) case: 2 pc(s)
Pallet gross weight (air): 281.8 kg
Master (outer) cases per pallet (air): 30 pc(s)
Products per pallet (air): 60 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 136.5 cm
Pallet gross weight (sea): 369.8 kg
Master (outer) cases per pallet (sea): 40 pc(s)
Products per pallet (sea): 80 pc(s)
Pallet height (sea): 177.5 cm
Shipping (inner) case gross weight: 8.79 kg

Certificates

Compliance certificates: BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Certification: FCC Class A CE CCC RoHS VCCI BSMI RCM

Logistics data

Harmonized System (HS) code: 85176990
