Description

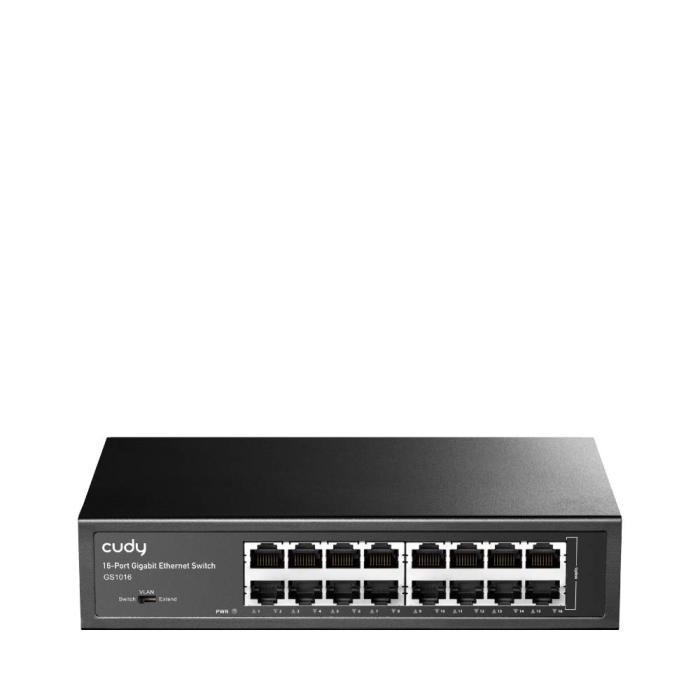

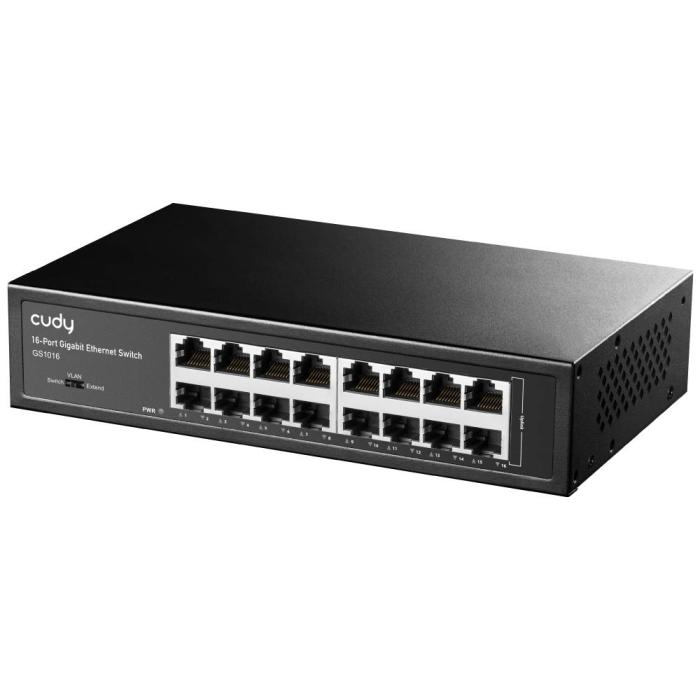

The Cudy GS1016 switch in black expands your office or home network with sixteen Gigabit Ethernet ports (10/100/1000), all featuring auto-negotiation and automatic MDI/MDI-X cable detection for hassle-free installation. With a switching capacity of 32 Gbit/s and support for jumbo frames up to 9216 bytes, this device manages data traffic through store-and-forward, reducing collisions and optimising transmission. Its compatibility with Cat3, Cat4, Cat5, Cat5e and Cat6 cables, along with the IEEE 802.3, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x standards, ensures a stable connection at speeds of 10, 100 or 1000 Mbit/s.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
Optical fiber
- Transmission distance (max): 0.1 km
Data transmission
- Switching capacity: 32 Gbit/s
- MAC address table: 8 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 4.1 MB
Design
- Rack mounting: Yes
- Product colour: Black
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- Power consumption (typical): 15 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage relative humidity (H-H): 5 - 85%
Weight & dimensions
- Width: 118 mm
- Depth: 200 mm
- Height: 44 mm

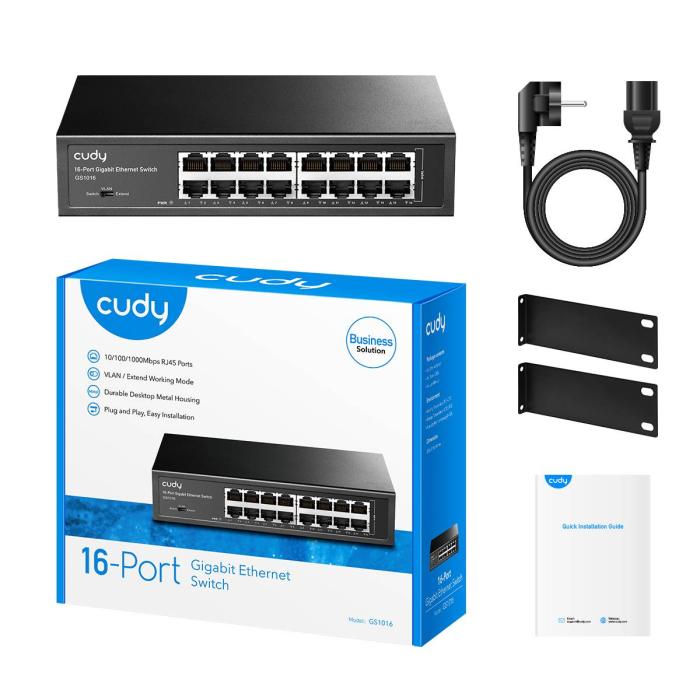

Packaging content
- Cables included: AC
- Manual: Yes
