Description

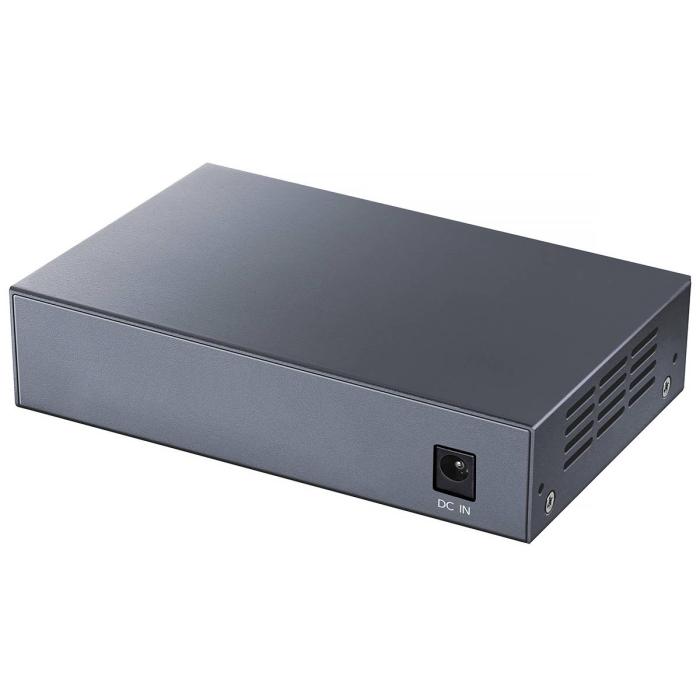

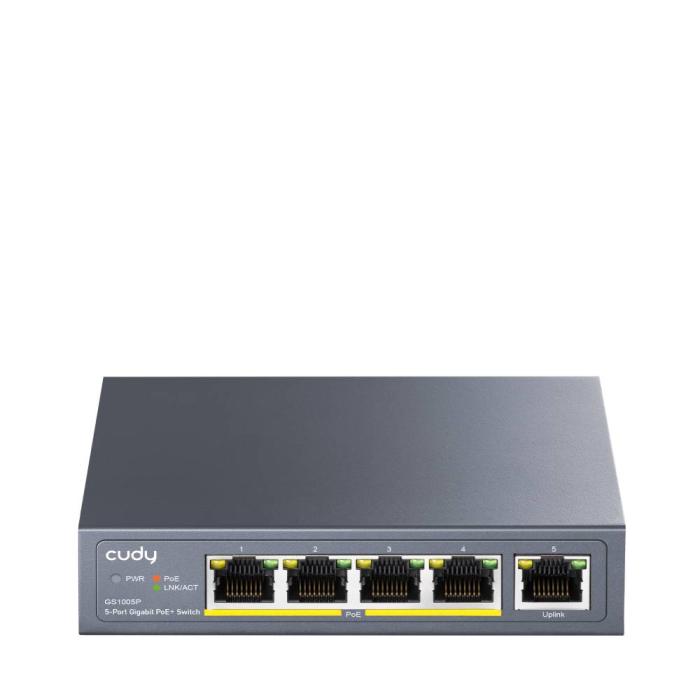

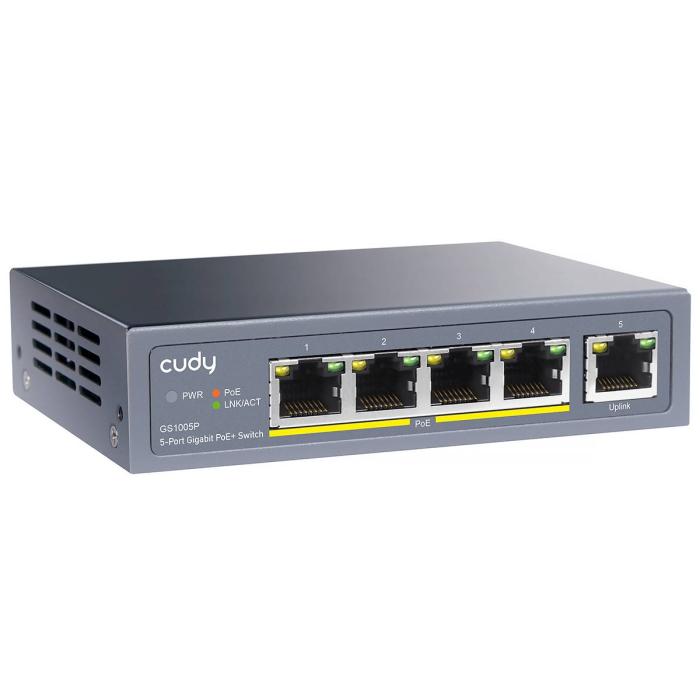

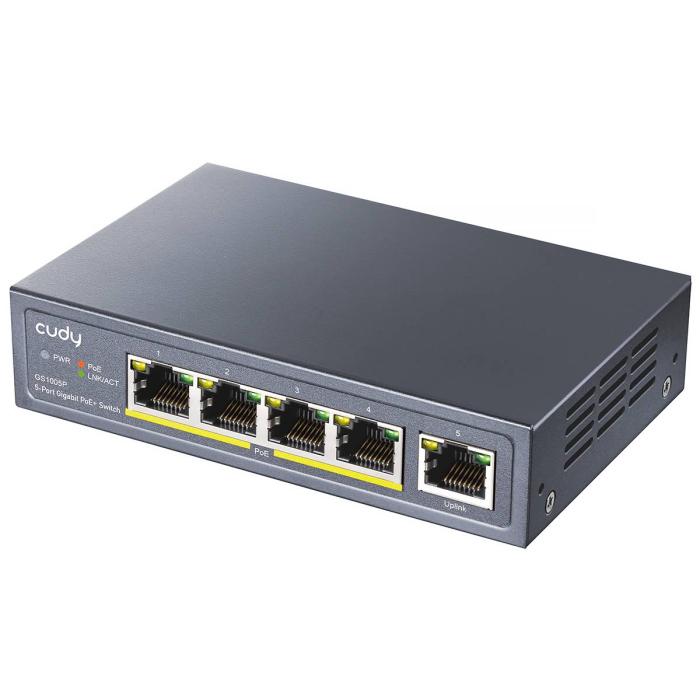

The Cudy GS1005P is a Gigabit Ethernet switch with 5 RJ-45 ports (10/100/1000) and one uplink port, all in a grey finish with a metal housing. Compatible with IEEE 802.3, 802.3ab, 802.3af and 802.3at standards, it supports Power over Ethernet (PoE) on its connections, with flow control and transfer speeds of up to 1000 Mbit/s. It offers a switching capacity of 10 Gbit/s, a MAC address table with 2000 entries and packet forwarding of 1488000 pps at 1 Gbps. This model is plug and play, fanless, with rack mounting and LED indicators for activity, link, PoE and power, consuming only 5 W.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Uplink ports quantity: 1
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
- Flow control support: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
Design
- Rack mounting: Yes
- Product colour: Grey
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power
Performance
- Plug and Play: Yes
- Fanless: Yes
Power
- Power source: AC/DC
- Power supply included: Yes
- DC input voltage: 48 - 57 V
- Power consumption (typical): 5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet plus (PoE+) ports quantity: 1
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 119 mm
- Depth: 85 mm
- Height: 28 mm
Packaging content
- Cables included: AC, DC
- User guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
