Description

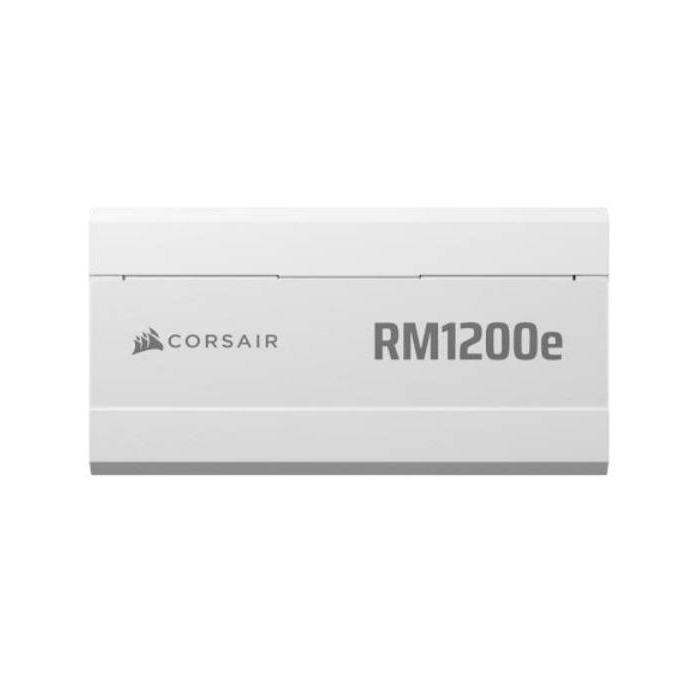

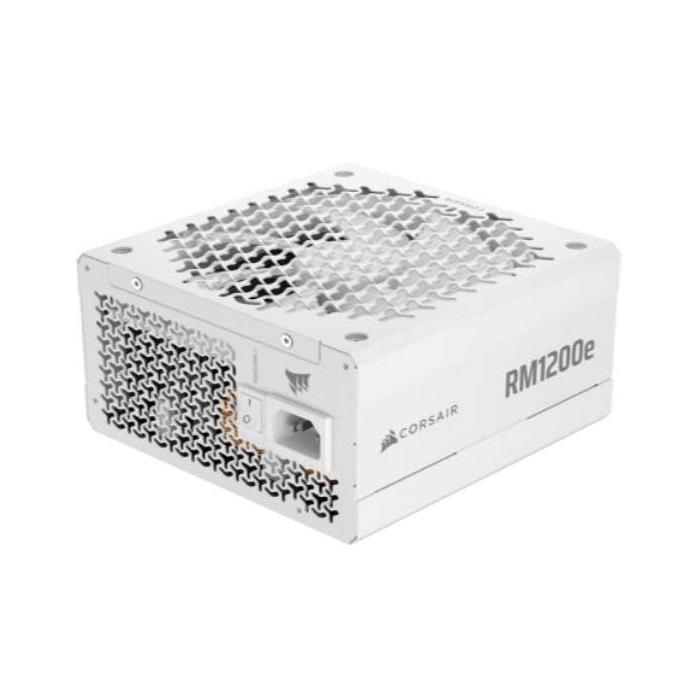

With 1200 W and 80 PLUS Platinum certification, the Corsair RM1200e is a white ATX power supply unit. It powers the motherboard via a 24-pin connector with a 61 cm cable and offers three SATA power connectors and four 4-pin peripheral Molex connectors. It supports an input voltage of 100 to 240 V with a frequency of 47 to 63 Hz and an input current of 15 A, in a format compatible with the ATX 3.1 version. Cooling is active via a 14 cm fan, and its dimensions are 150 mm wide, 150 mm deep and 86.5 mm high, with a weight of 1.69 kg. It delivers 150 W on the 3.3 V rail and 15 W on the +5 VSB rail, with a maximum output current of 20 A at +3.3V. The SATA cables reach lengths of 115, 455 and 800 mm, and the Molex cables 100 and 450 mm.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 15 A
- Combined power (+3.3V): 150 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 150 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 100 A
- Max output current (+5V): 20 A
- Max output current (+5Vsb): 3 A
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 3
- SATA power cable length: 115, 455, 800 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 100, 450 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 60 cm
- Number of EPS connectors: 2
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
Design
- Product colour: White
- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Weight & dimensions
- Width: 150 mm
- Depth: 150 mm
- Height: 86.5 mm
- Weight: 1.69 kg
