Description

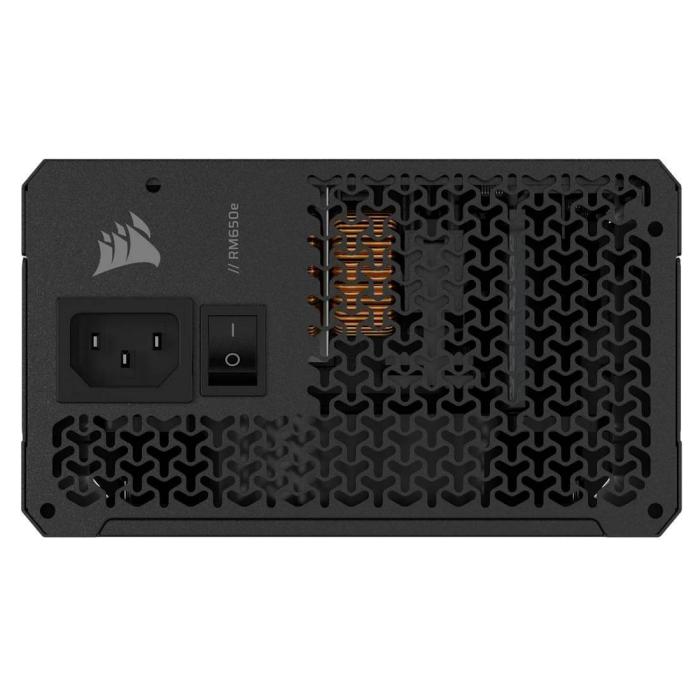

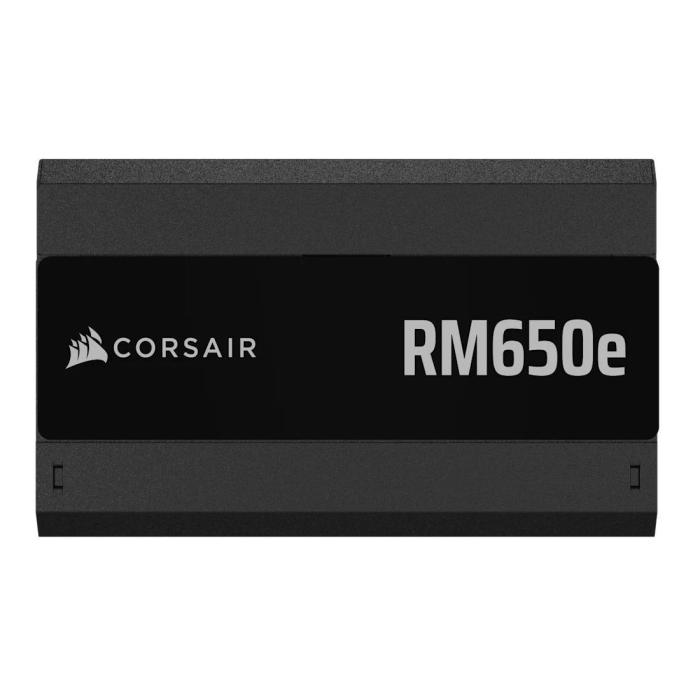

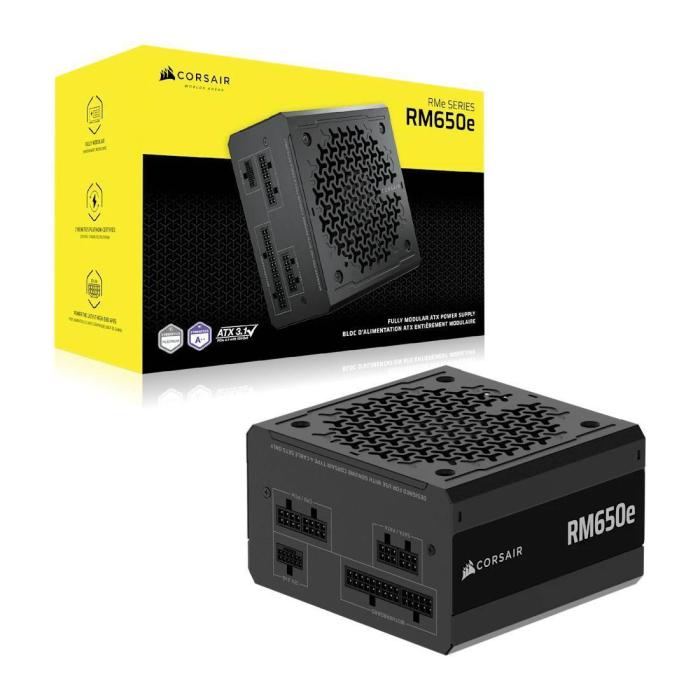

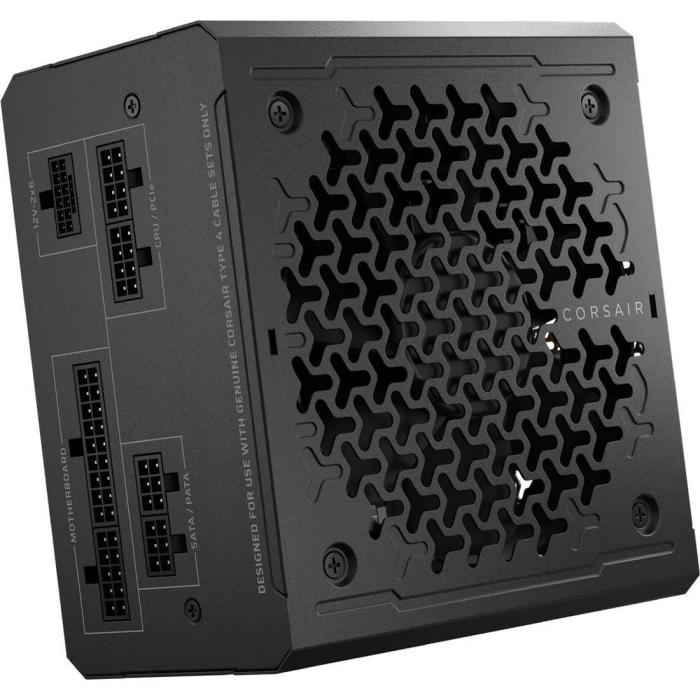

The Corsair RMe Series RM650e is an ATX power supply unit with 650 W in a black finish, designed for desktop builds with a 24-pin main connector and 4+4-pin CPU support. It delivers a maximum current of 54.2 A on the +12 V rail, with combined power of 110 W for +5 V and +3.3 V, and supports an AC input voltage between 100 and 240 V with a frequency of 47 to 63 Hz. It features two 6+2-pin PCI Express connectors, a 12+4-pin ATX connector, two PATA ports, and a PCI Express connector, covering the power needs of graphics cards and peripherals. This unit offers stable power delivery for mid-range systems, with cabling that facilitates internal management.
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 10 - 5 A
- Combined power (+3.3V): 110 W
- Combined power (+12V): 650 W
- Combined power (+5V): 110 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 54.2 A
- Max output current (+5V): 20 A
- Max output current (+5Vsb): 3 A

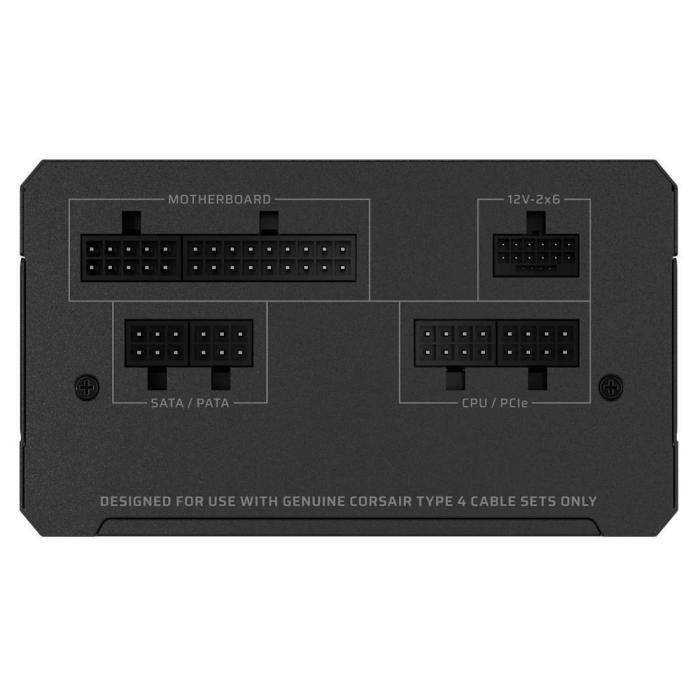

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 6
- Number of PATA power connectors: 2
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): Yes
- ATX power connector (12+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: Rifle
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Front
- On/off switch: Yes
Certificates
- Compliance certificates: CE, RoHS, UKCA
Weight & dimensions
- Width: 140 mm
- Depth: 86 mm
- Height: 150 mm
- Weight: 2.73 kg
Packaging data
- Package type: Box
