Description

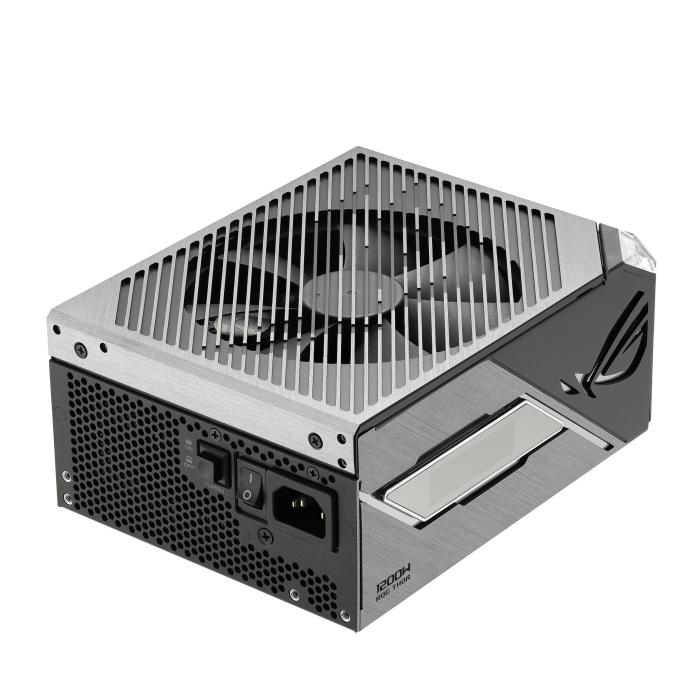

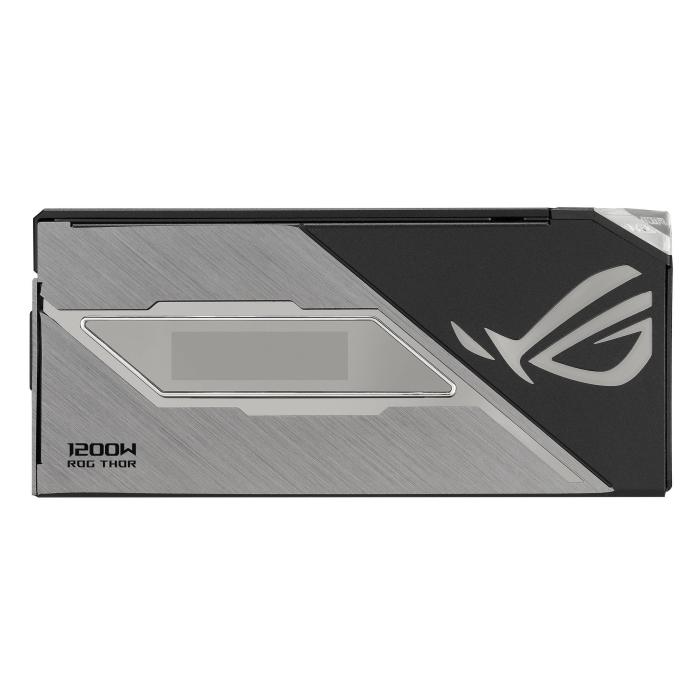

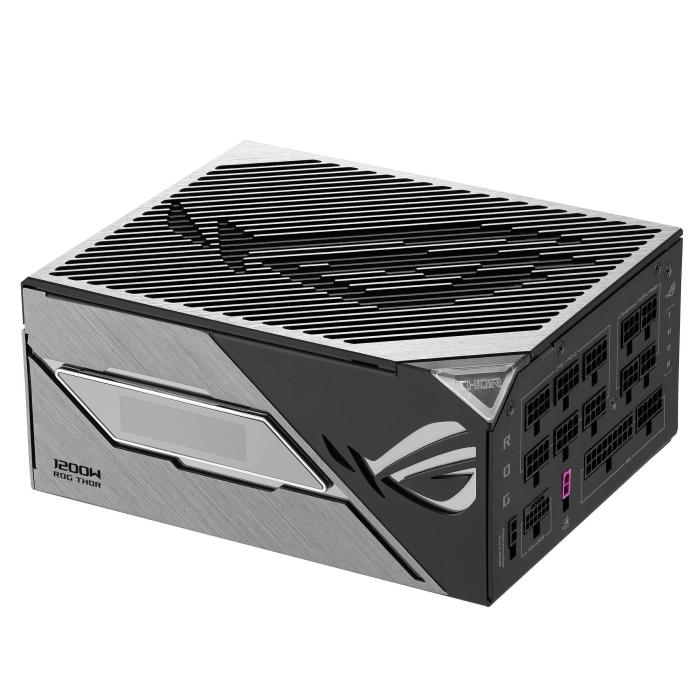

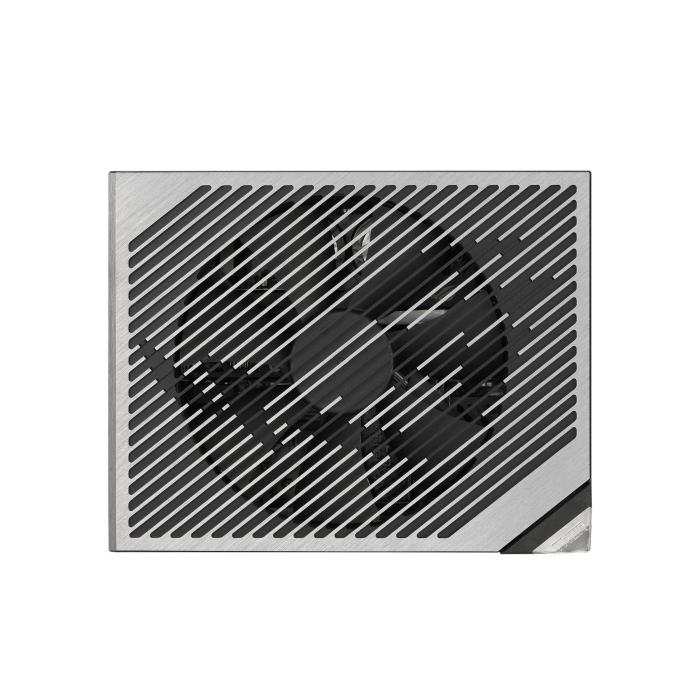

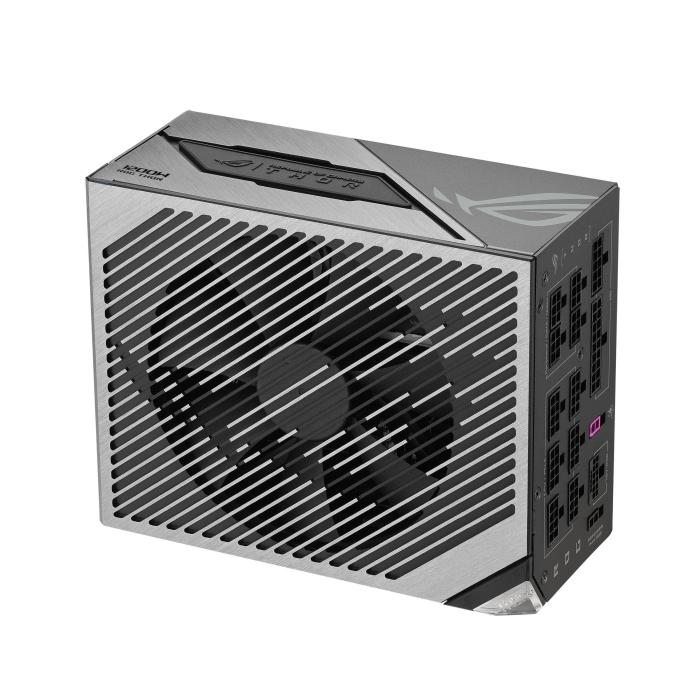

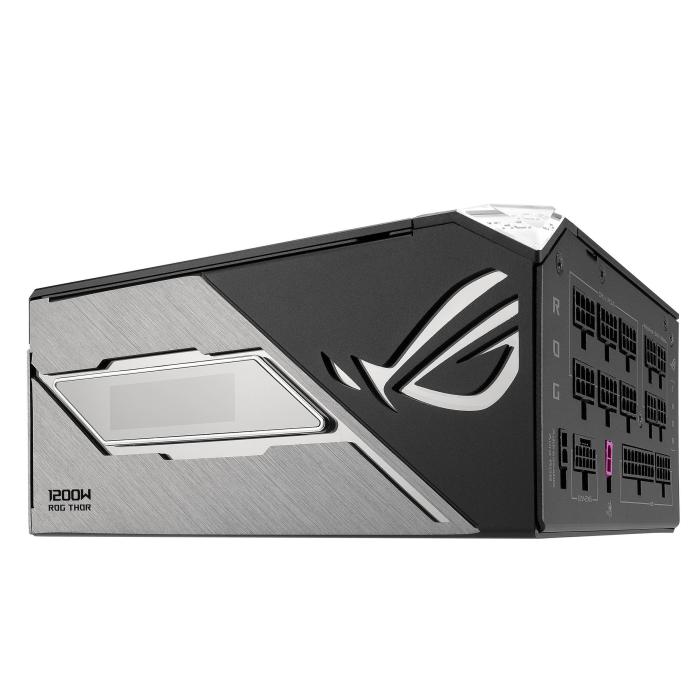

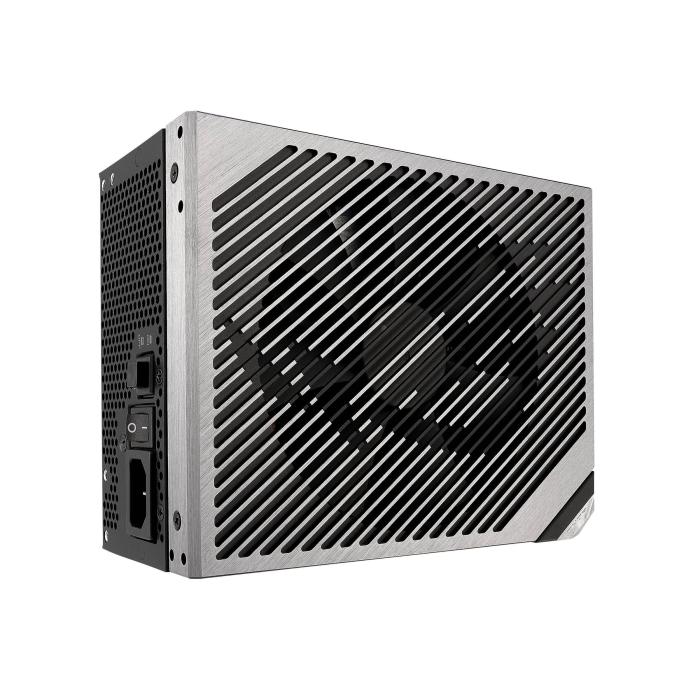

The ASUS ROG Thor is a 1200 W power supply unit with a black colour certification and 20+4 pin ATX format, designed for high-performance systems. Its power factor correction is active and it supports an AC input voltage of 100 to 240 V, with a maximum output current of 100 A on the +12 V rail and a combined power of 1200 W on that same rail. It completes the distribution with 30 A on +3.3 V and 25 A on +5 V, both with 125 W combined, 3 A on +5Vsb and 0.3 A on -12 V. It includes protection features against overheating, overcurrent, overvoltage, overvoltage, short circuit and under power. The motherboard power cable measures 61 cm and the PCI Express one 75 cm, and it includes a 16-pin PCI Express connector and a 400 and 150 mm Molex peripheral cable. Its dimensions are 190 x 86 x 150 mm (width x height x depth) and it weighs 2.37 kg, in black.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 100 - 240 V
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 125 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 30 A
- Max output current (+12V): 100 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Ports & interfaces

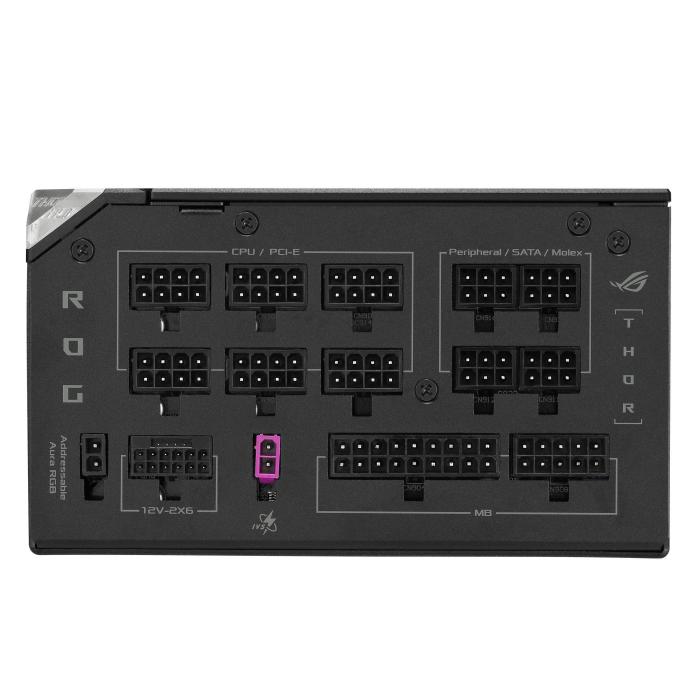

- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 7
- SATA power cable length: 400, 120 mm
- Peripheral (Molex) power connectors (4-pin): 6
- Peripheral (Molex) power cable length: 400, 150 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (16-pin): 1
- PCI Express power cable length: 75 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 100 cm
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: DBB
- Mean time between failures (MTBF): 120000 h
Design
- Product colour: Black
- Cooling type: Active
- Number of fans: 1 fan(s)
- Fan location: Top
- Illumination: Yes
Packaging content
- Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
- Width: 190 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 2.37 kg
Packaging data
- Package width: 379 mm
- Package depth: 241 mm
- Package height: 127 mm
- Package weight: 5.14 kg
- Package type: Box
