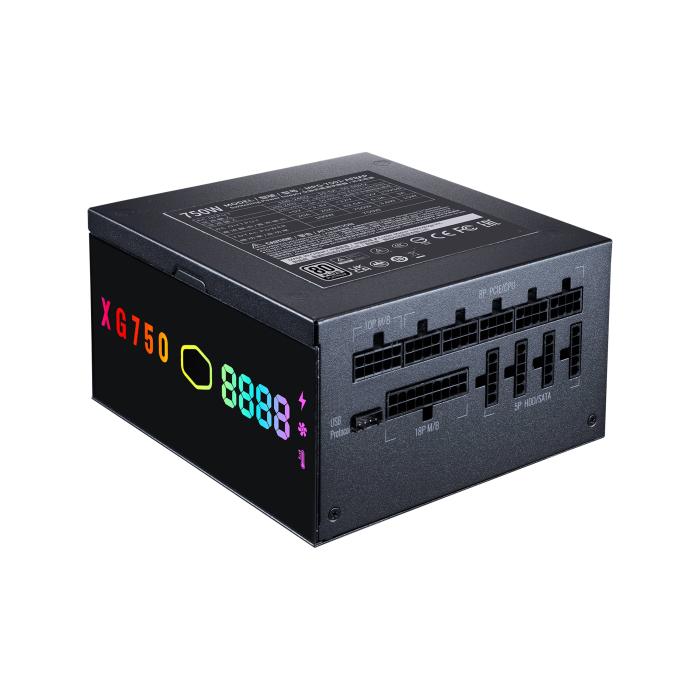

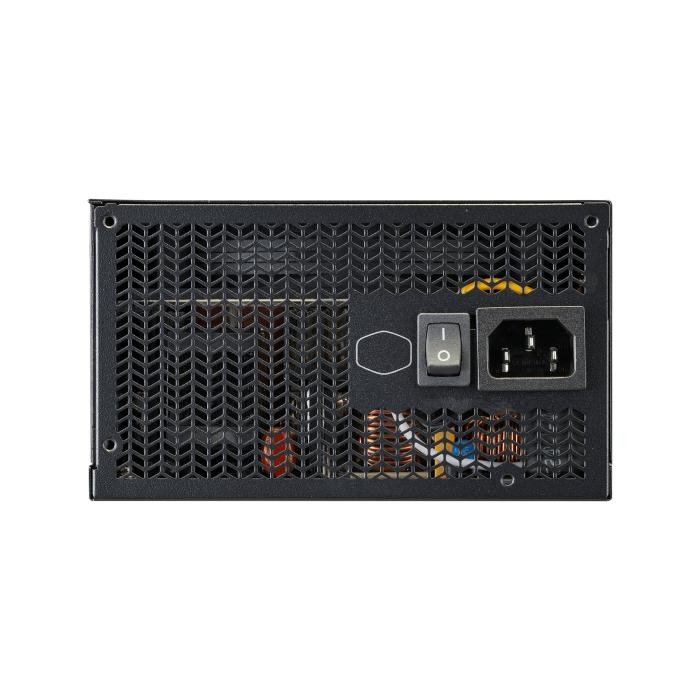

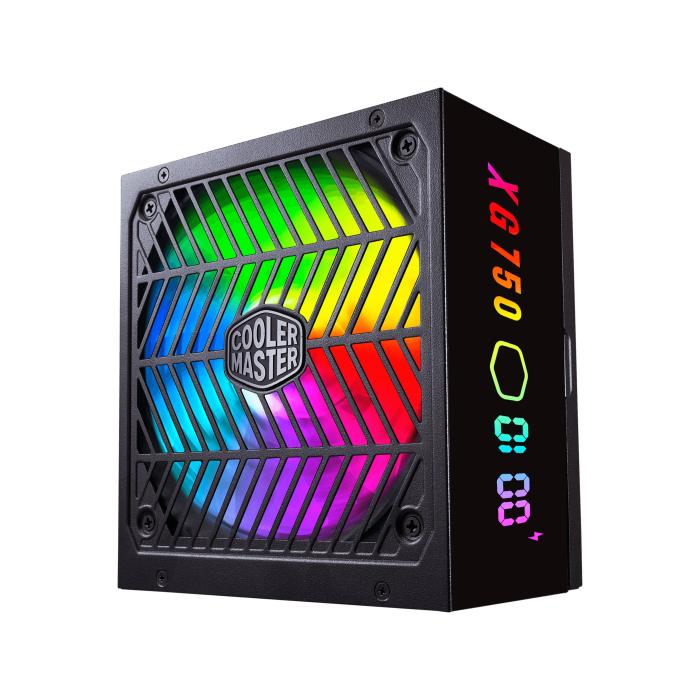

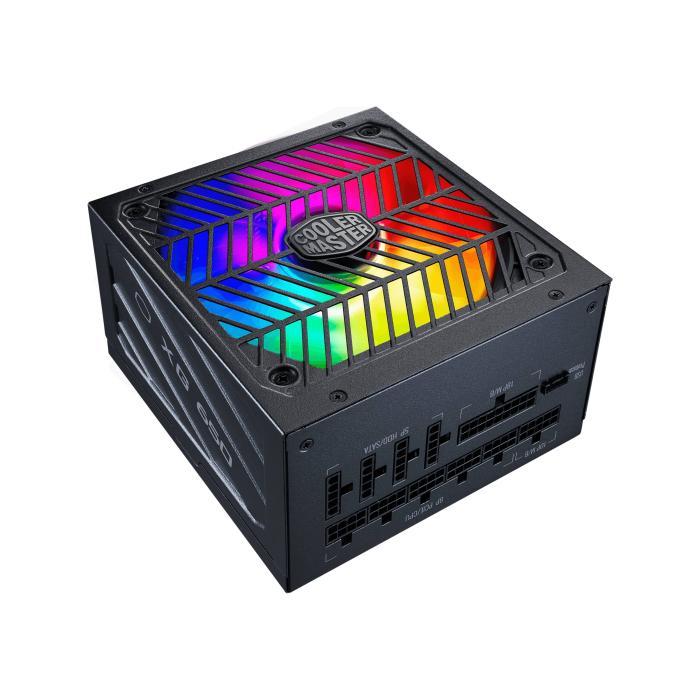

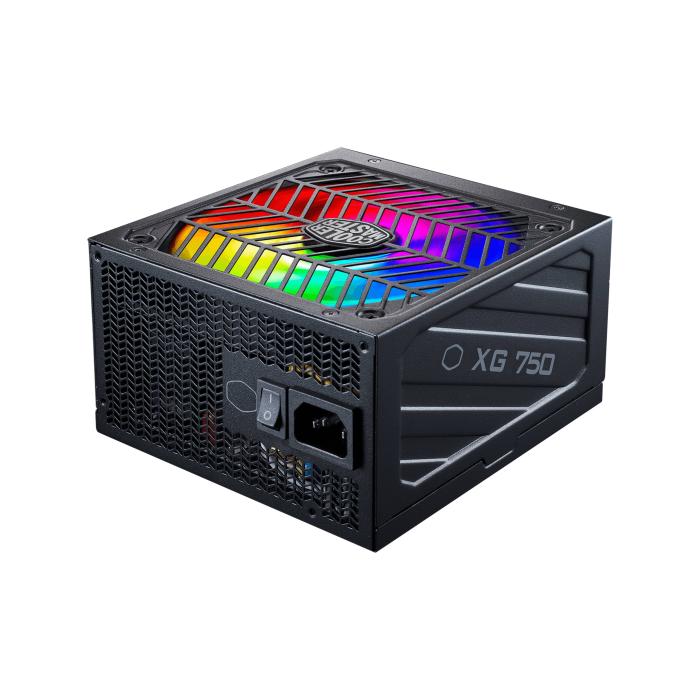

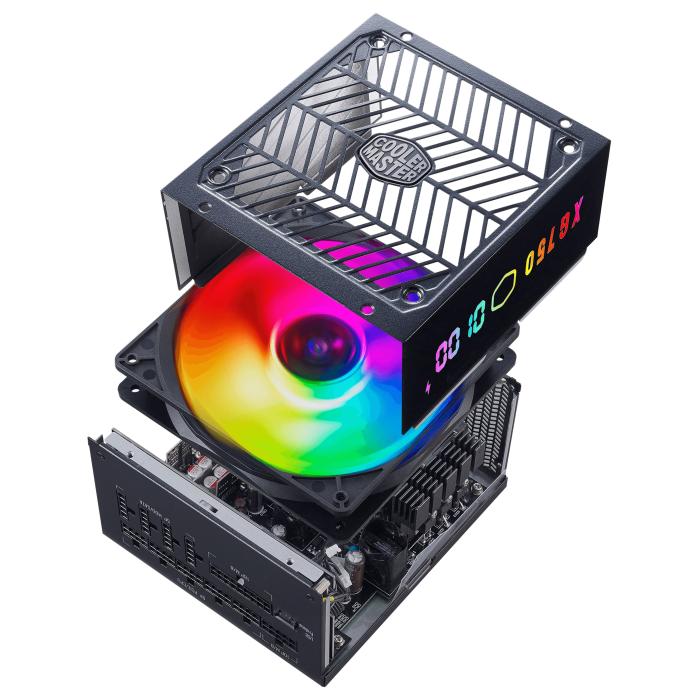

Cooler Master XG750 power supply unit 750 W 24-pin ATX ATX Black
More info
Brand: COOLER MASTER
99,00 €Stock available: 0 units.
Unavailable
SKU:
97004
PRC:
401936
EAN:
4719512112229
PN:
mpg-7501-afbap-xeu
Description
Cooler Master XG750 power supply unit in black with ATX format and a total power of 750 W, designed for desktop systems requiring a stable and efficient supply. It offers 92% efficiency and an active power factor, with a Power Good signal delay margin of 100 to 500 ms and a hold-up time of 16 ms. It supports an AC input voltage of 100 to 240 V with a frequency of 50 to 60 Hz, and manages maximum currents of 20 A on the +3.3 V and +5 V lines, as well as 3 A on +5Vsb and 0.3 A on -12V. It includes protections against overvoltage, overheating, undervoltage, overcurrent, and short circuit, with a combined power of 750 W on the +12 V line and a 24-pin main connectivity.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 5 - 10 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 750 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62.5 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 16 ms
- Efficiency: 92%
- Power Good signal delay range: 100 - 500 ms
- Power protection features: Over power, Overheating, Over voltage, Under voltage, Over current, Short circuit

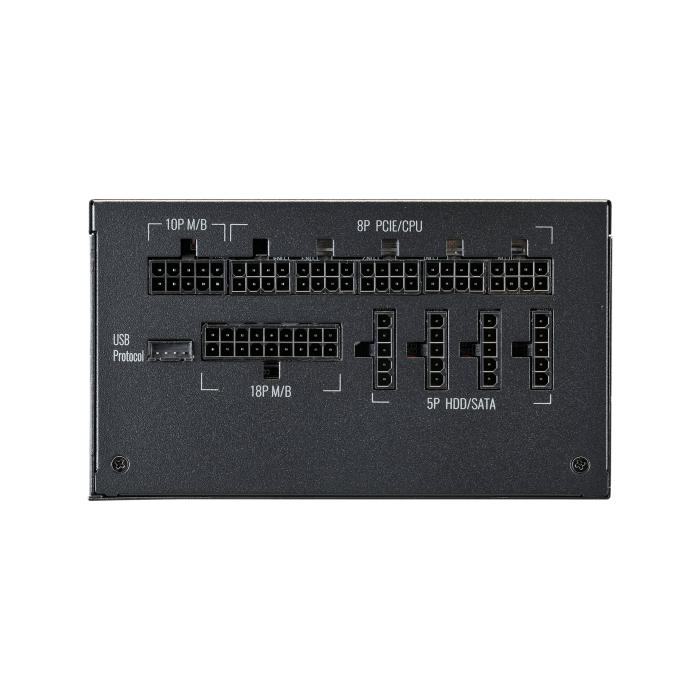

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 65 cm
- Number of SATA power connectors: 12
- SATA power cable length: 860, 740, 620, 500 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 860, 740, 620, 500 mm
- EPS power connector (8-pin): Yes
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 67 cm
- Cabling type: Fully-Modular
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.53
- Noise level: 25 dB
- Mean time between failures (MTBF): 100000 h
- 80 PLUS certification: 80 PLUS Platinum
- Supported motherboard form factors: ATX
Design
- Product colour: Black

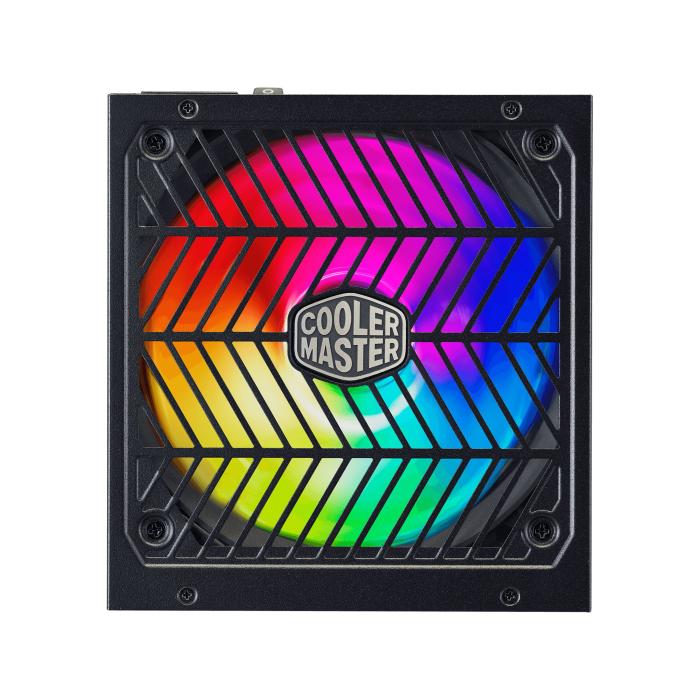

- Cooling type: Active
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 1800 RPM

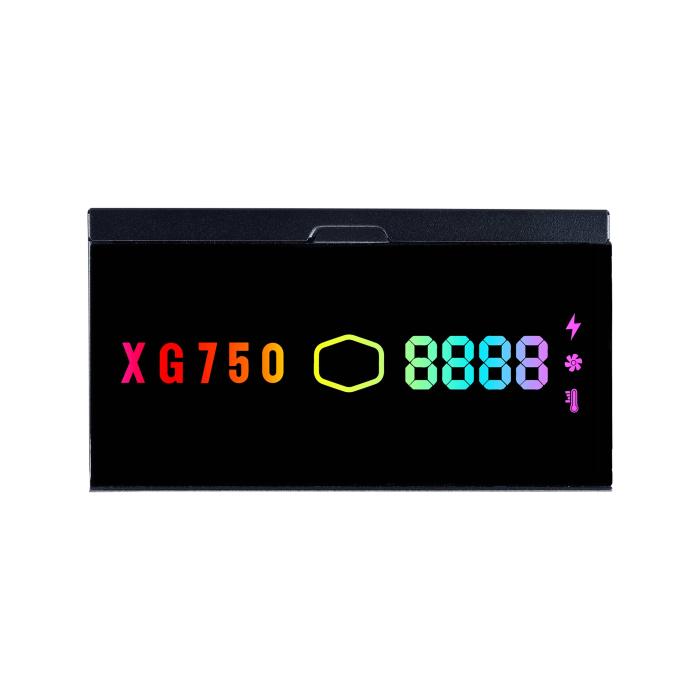

- Illumination: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Certificates
- Certification: ErP 2014 Lot 3, TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
Weight & dimensions
- Width: 150 mm
- Depth: 86 mm
- Height: 160 mm
Packaging data
- Package width: 214 mm
- Package depth: 125 mm
- Package height: 300 mm
Logistics data
- Master (outer) case width: 318 mm
- Master (outer) case length: 250 mm
- Master (outer) case height: 520 mm
- Products per master (outer) case: 4 pc(s)
Other features
- EPS cable length: 65 cm
- Illumination colour: Multi
