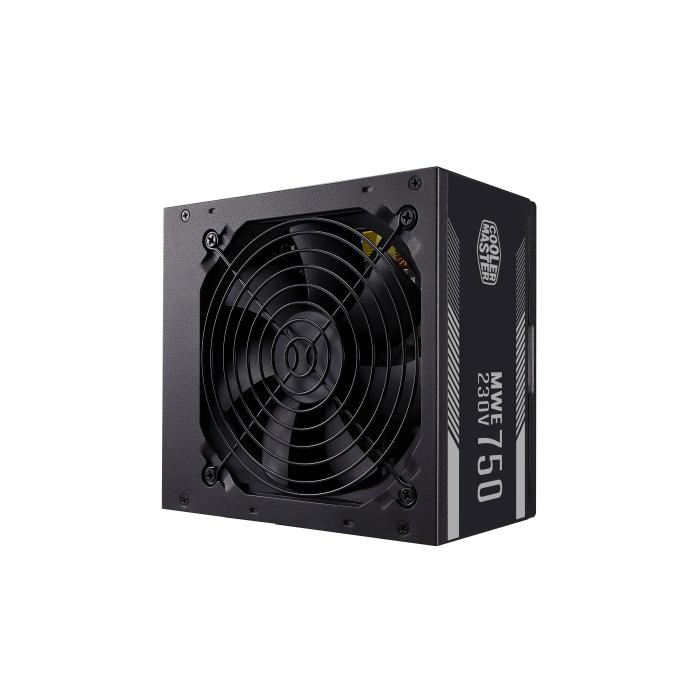

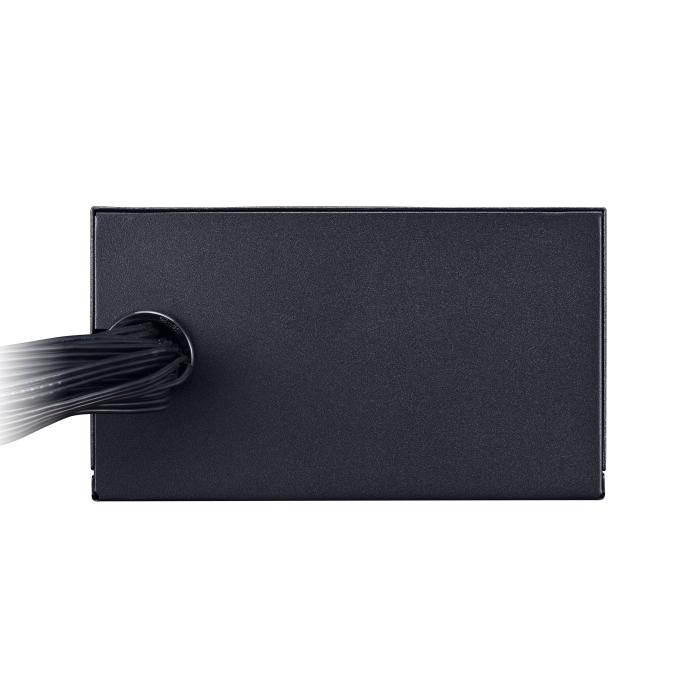

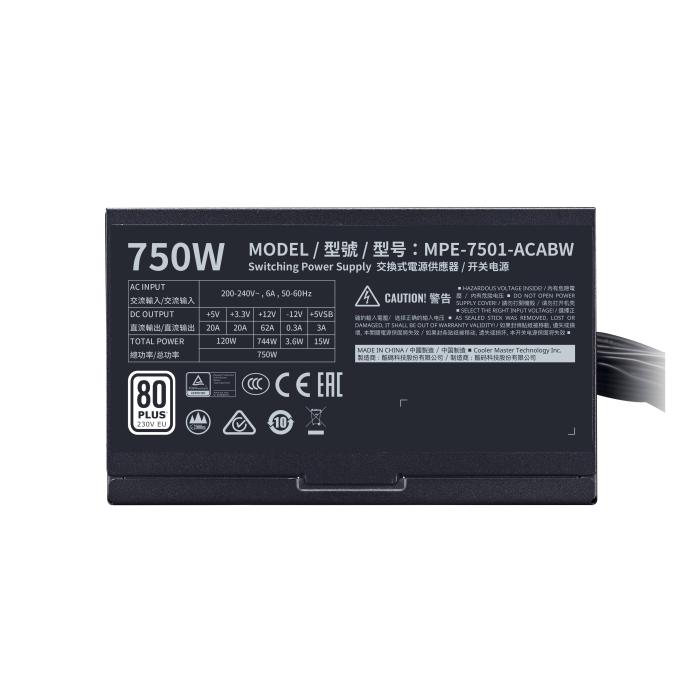

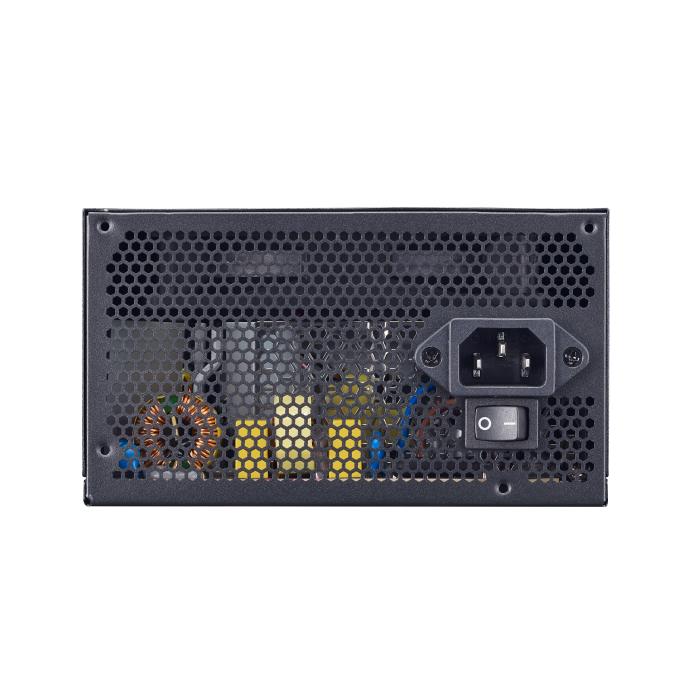

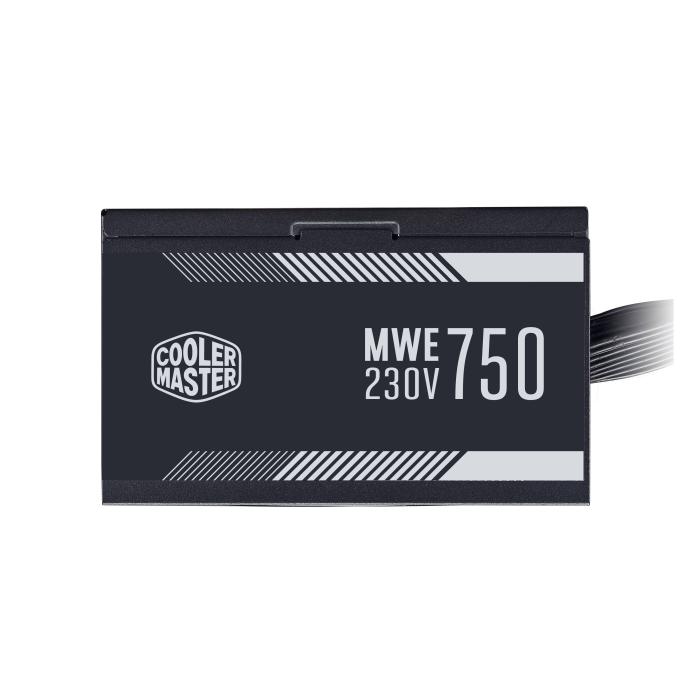

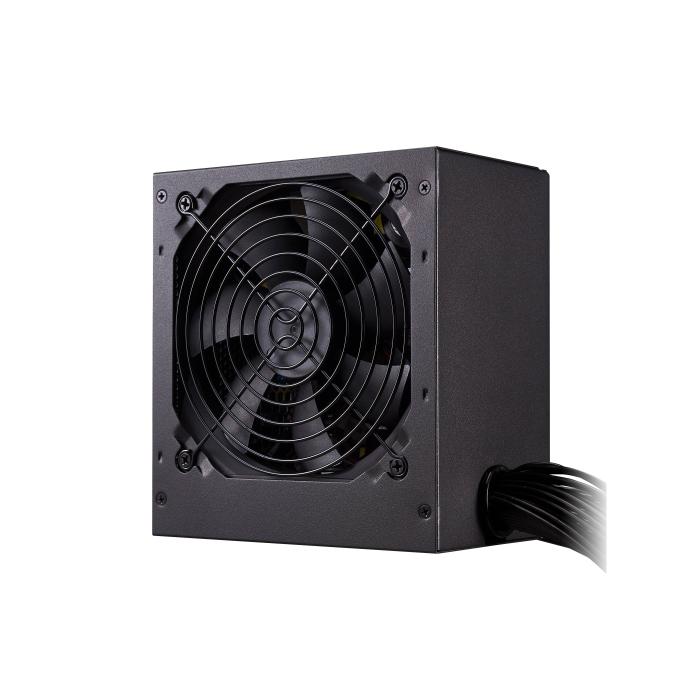

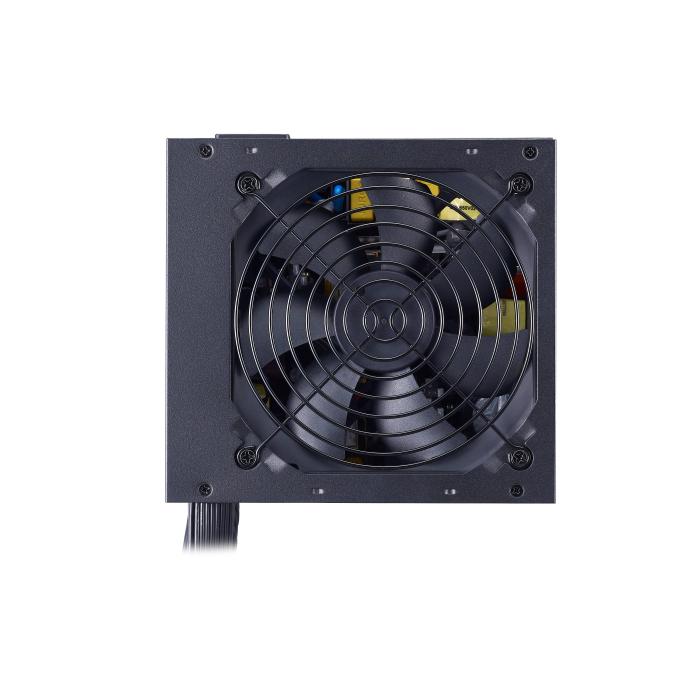

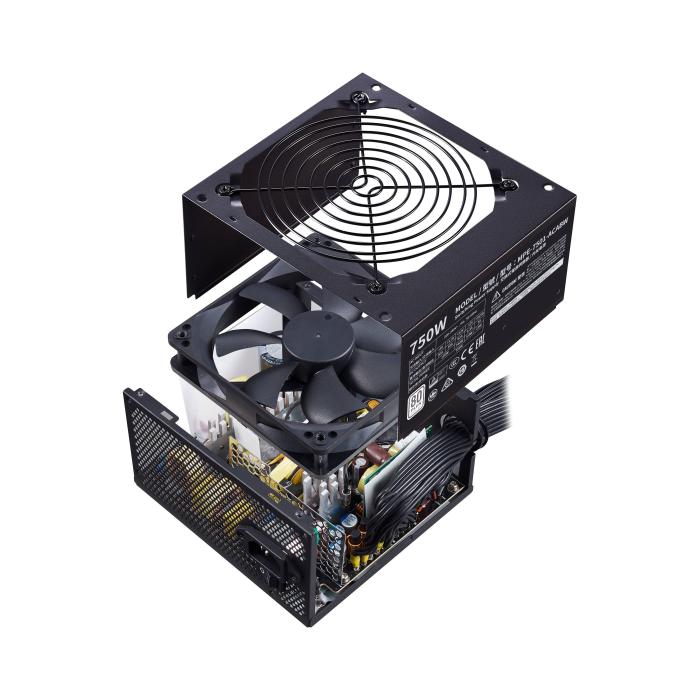

Cooler Master MWE 750 White 230V - V2 power supply unit 750 W 24-pin ATX ATX Black

$89.51
$89.51 without VAT

More info

Brand: COOLER MASTER
SKU: 102584 PRC: 460616 EAN: 4719512083208 PN: mpe-7501-acabw-eu

Description

Specifications

Power

  • Total power: 750 W
  • AC input voltage: 200 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 6 A
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 120 W
  • Combined power (+12V): 744 W
  • Combined power (+5V): 120 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 62 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Hold time: 14 ms
  • Efficiency: 85%
  • Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

  • Motherboard power connector: 24-pin ATX
  • Motherboard power cable length: 50 cm
  • Number of SATA power connectors: 6
  • SATA power cable length: 400, 550, 700 mm
  • Peripheral (Molex) power connectors (4-pin): 3
  • Peripheral (Molex) power cable length: 400, 550, 700 mm
  • PCI Express power connectors (6+2 pin): 4
  • PCI Express power cable length: 60 cm
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 67 cm
  • Cabling type: Non-Modular

Performance

  • 80 PLUS certification: 80 PLUS
  • Supported motherboard form factors: ATX
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.52
  • Bearing technology: HDB
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan speed: 0 - 2400 RPM

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C

Certificates

  • Certification: CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB

Weight & dimensions

  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
  • Weight: 1.51 kg

Packaging data

  • Package width: 190 mm
  • Package depth: 245 mm
  • Package height: 110 mm
  • Package weight: 1.91 kg
  • Package type: Box

Logistics data

  • Products per pallet: 32 pc(s)
  • Master (outer) case width: 260 mm
  • Master (outer) case length: 570 mm
  • Master (outer) case height: 215 mm
  • Harmonized System (HS) code: 84733020
  • Products per master (outer) case: 5 pc(s)

Other features

  • Noise level (silent mode, <30%): 11.12 dB
  • Noise level (quiet mode, 50%): 20.3 dB
  • Noise level (full-load mode, 100%): 39.5 dB
