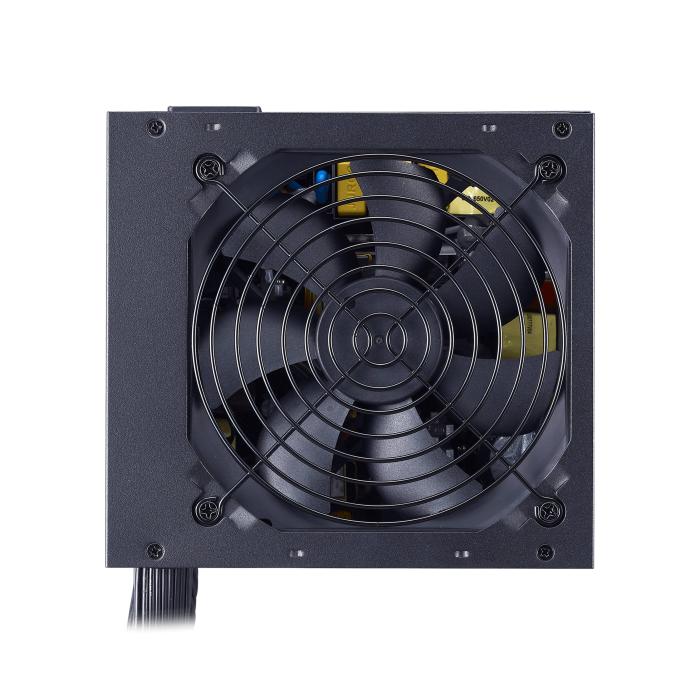

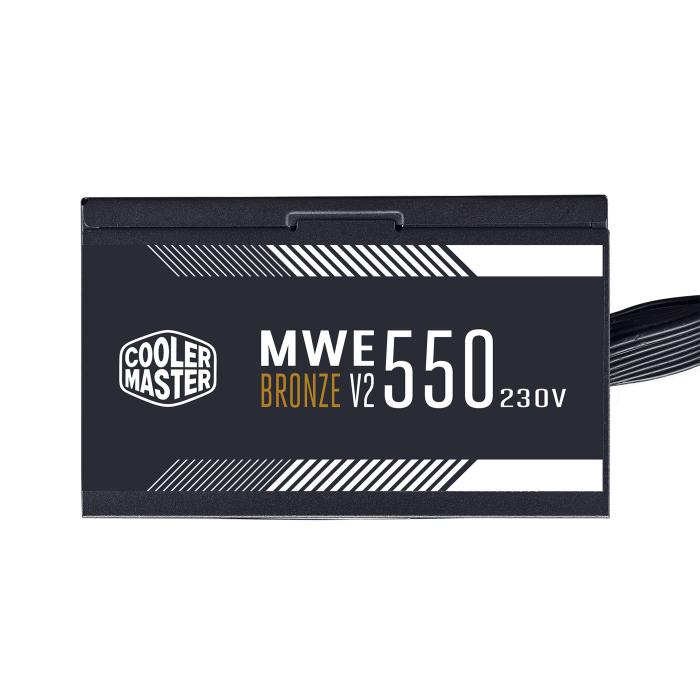

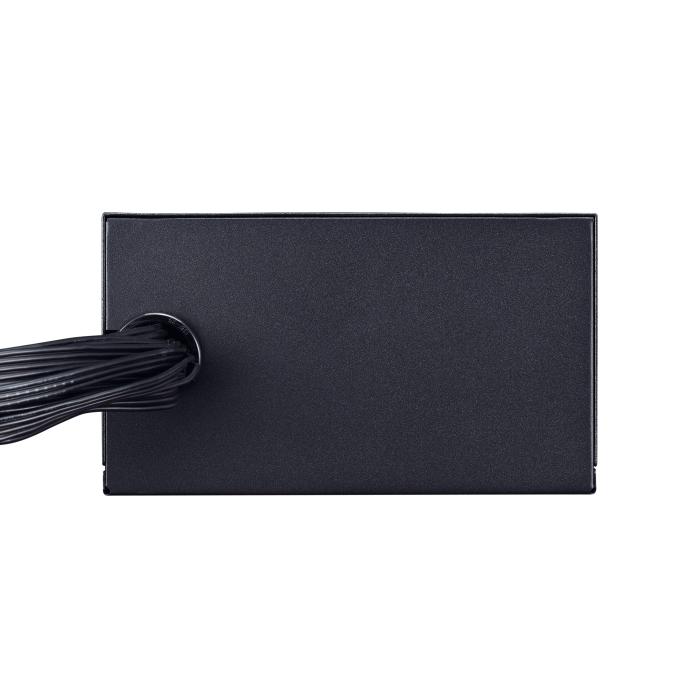

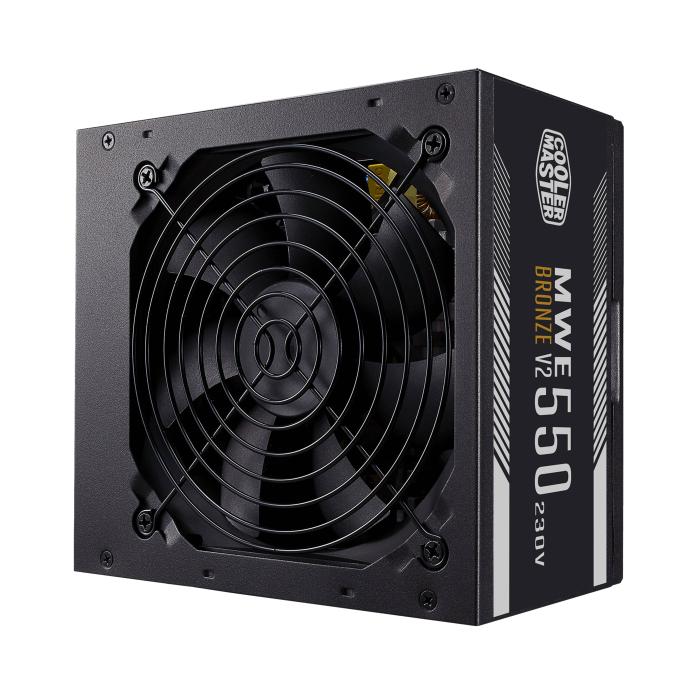

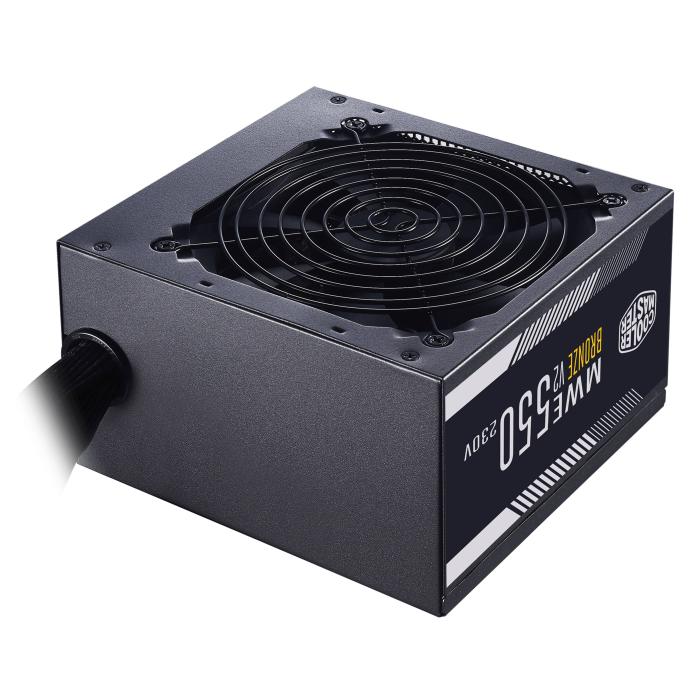

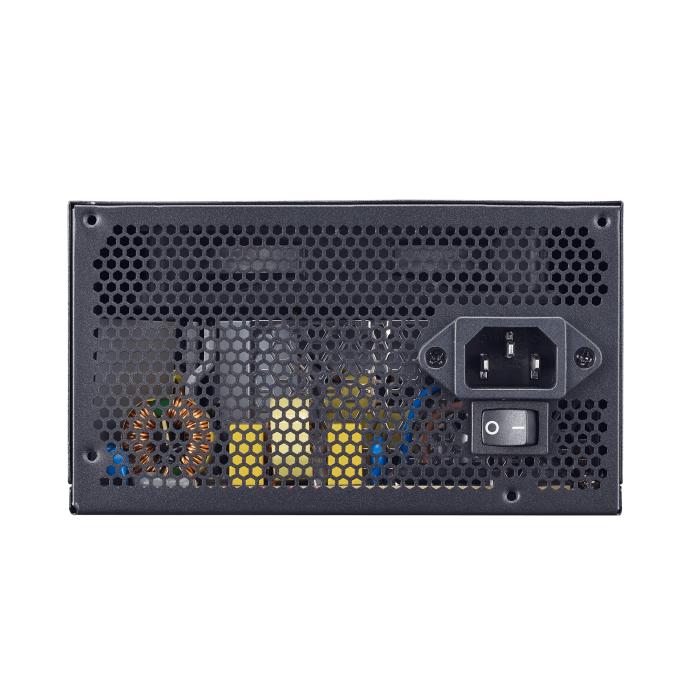

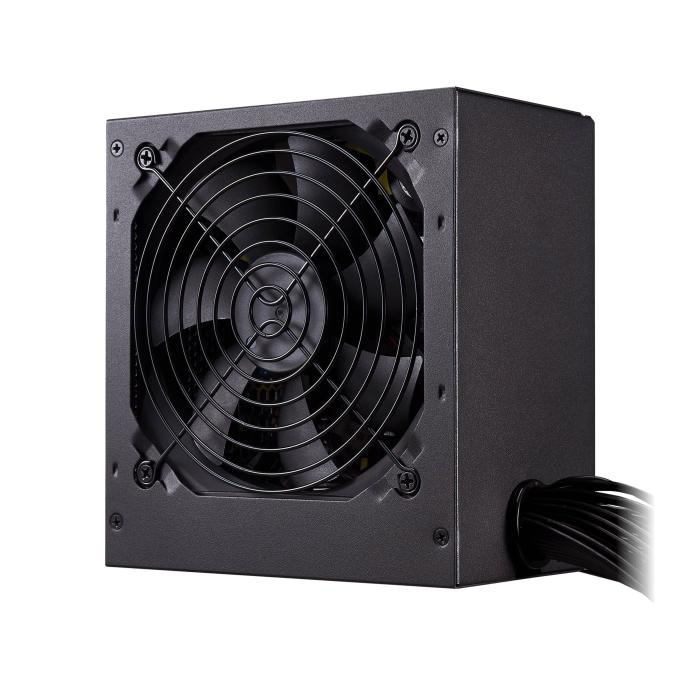

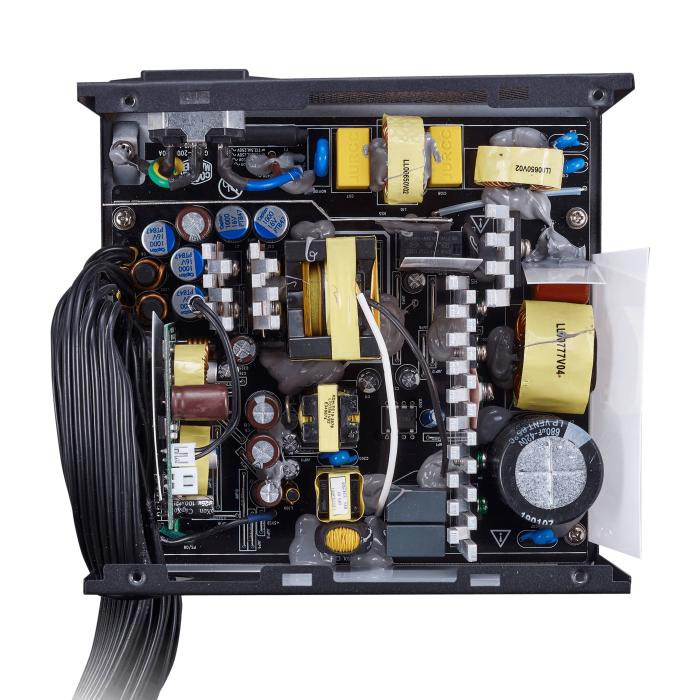

Cooler Master MWE 550 Bronze 230V V2 power supply unit 550 W 24-pin ATX ATX Black

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Product 7 image

Product 8 image

Product 9 image

Product 10 image

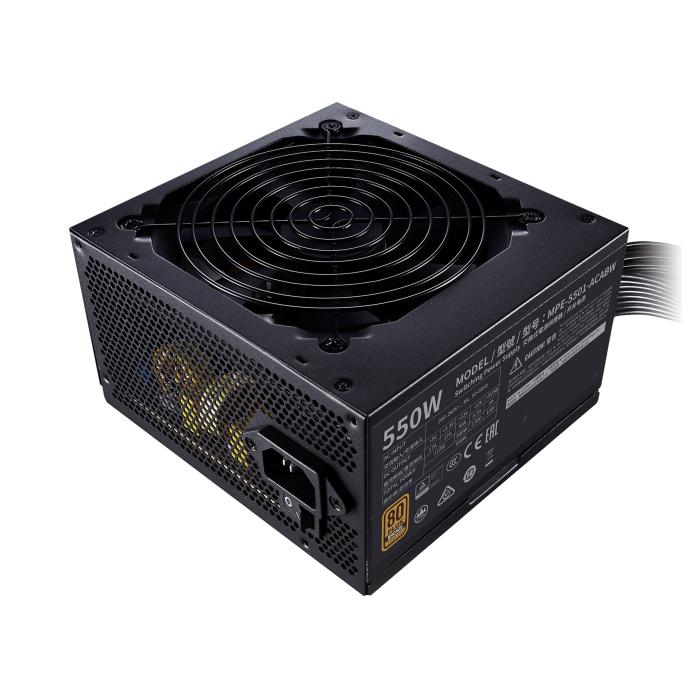

Cooler Master MWE 550 Bronze 230V V2 power supply unit 550 W 24-pin ATX ATX Black

Not avaliable

Amount

Brand: COOLER MASTER

SKU: 85666 PRC: 296431 EAN: 4719512104071 PN: MPE-5501-ACABW-BEU

Description

Specifications

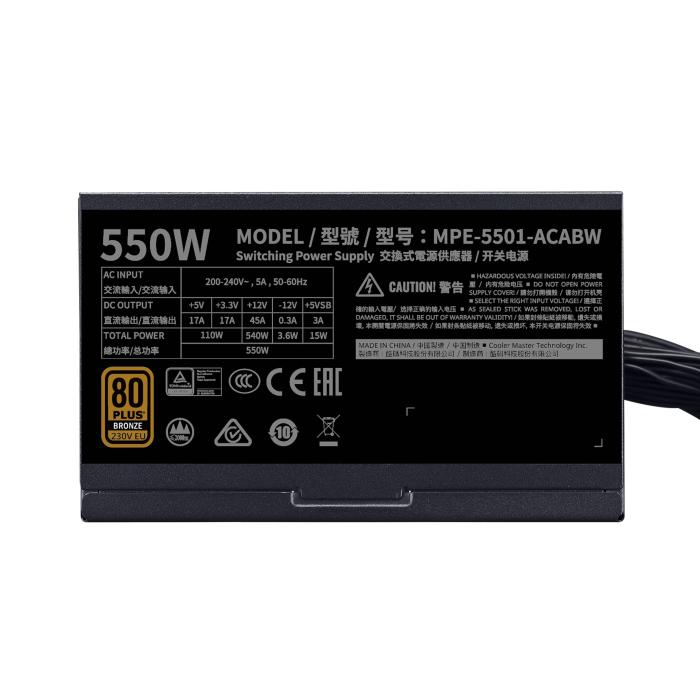

Power

Total power: 550 W
AC input voltage: 200 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 540 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 17 A
Max output current (+12V): 45 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 14 ms
Efficiency: 88%
Power Good signal delay range: 100 - 500 ms
Power protection features: Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
ATX Power connector (24-pin): Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Silver
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.52
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes

Certificates

Certification: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.27 kg

Packaging data

Package width: 190 mm
Package depth: 245 mm
Package height: 110 mm
Package weight: 1.67 kg

Logistics data

Harmonized System (HS) code: 84733020

Other features

Noise level (quiet mode, 50%): 18.4 dB
Noise level (full-load mode, 100%): 31.2 dB
