Description

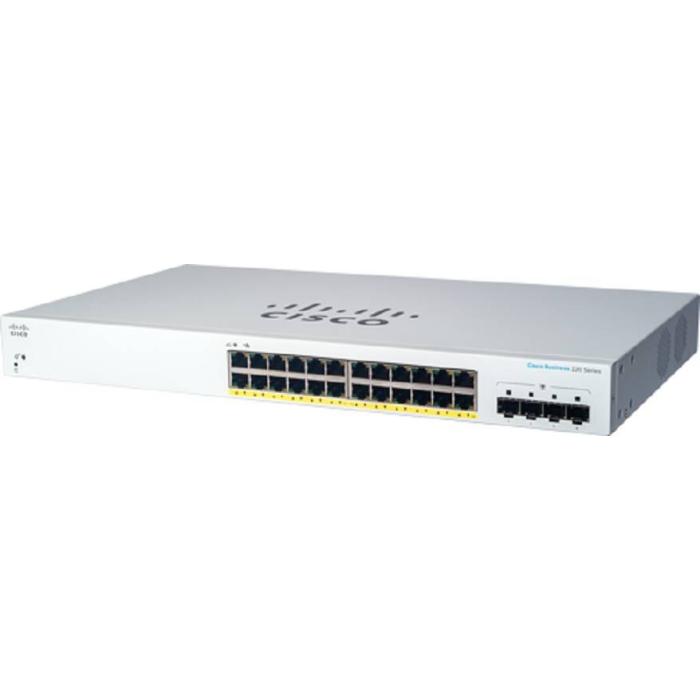

Managed Cisco CBS220-24P-4G switch with 24 Gigabit Ethernet ports (10/100/1000) and 4 SFP slots, in 1U format and white colour, designed for business networks that require PoE on each basic port thanks to its support for Power over Ethernet. With L2 switching layer, this unit enables web administration, quality of service (QoS), event logging and flow control, as well as including advanced features such as VLAN (up to 256), spanning tree protocol, link aggregation, HOL blocking and basic IP routing. The model incorporates auto MDI/MDI-X, support for speeds of 10, 100 and 1000 Mbit/s, and compatibility with 10G connections, making it a robust access point for deploying an office wired network without technical complications.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Number of VLANs: 256
Data transmission
- Switching capacity: 56 Gbit/s
- Forwarding rate: 41.66 Mpps
- MAC address table: 8192 entries
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 4.1 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SSH, SSH-2, SSL/TLS
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication type: IEEE 802.1x, RADIUS
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
- Multicast MAC address table: 8192 entries
Protocols
- Management protocols: SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: White
- Reset button: Yes
- LED indicators: Yes
- Number of fans: 1 fan(s)
Performance
- Built-in processor: Yes
- Internal memory: 256 MB
- Flash memory: 64 MB
- Firmware upgradeable: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 833.59 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 203 mm
- Height: 44 mm
- Weight: 2.75 kg
Logistics data
- Harmonized System (HS) code: 85176990
