Description

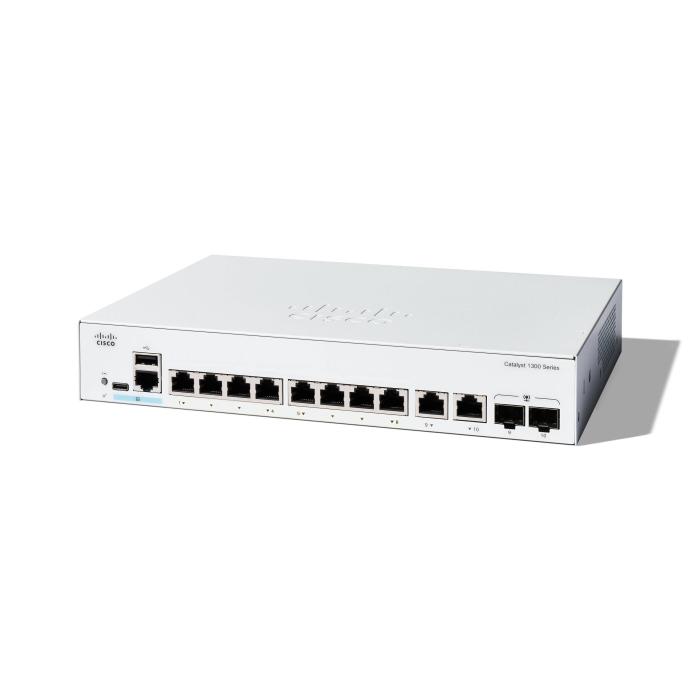

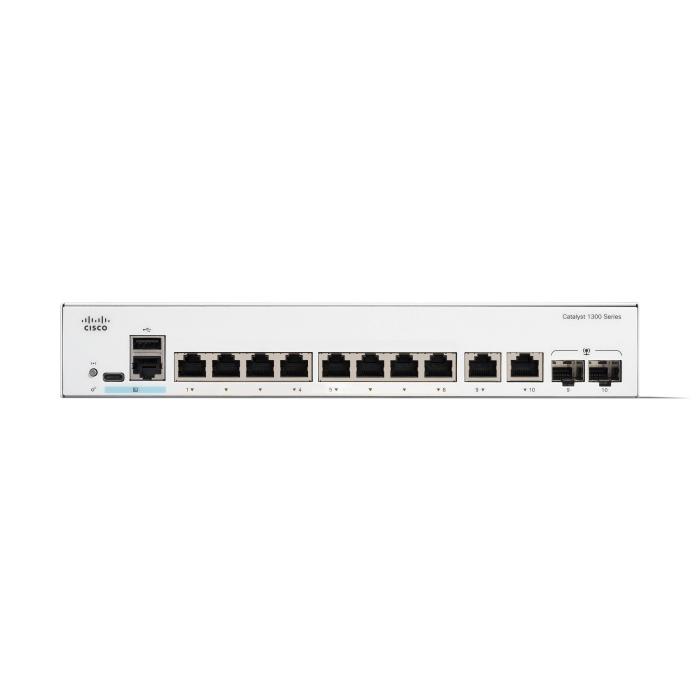

Connect up to 8 devices with the Cisco Catalyst 1300 managed switch, an L2 Gigabit Ethernet (10/100/1000) model in grey that integrates 2 SFP combo ports for additional links. Its web-based management, MIB support and CLI allow location settings to be configured, while Quality of Service (QoS), storm control and port mirroring optimise the network. This switch supports 4093 VLANs, Spanning Tree Protocol, link aggregation, jumbo frames and static routes, with an RJ-45/USB Type-C console port for local management.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
- Console port: RJ-45/USB Type-C
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Number of VLANs: 4093
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 16000 entries
- Static route: Yes
- Number of static routes: 990
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP Option 82, DHCP client, DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- IGMP entries: 2000
- SSH/SSL support: Yes
- Loop protection: Yes
- Authentication: MAC-based authentication, Web-based authentication
- Authentication type: RADIUS
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Grey
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 2171669 h
Power
- Power source: AC
- AC input voltage: 110 - 220 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 12.56 W
- Power plug type: Type C
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
Other features
- Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 42.86 BTU/h
Weight & dimensions
- Width: 184.9 mm
- Depth: 268.2 mm
- Height: 43.9 mm
- Weight: 1.39 kg
Packaging data
- Package width: 299 mm
- Package depth: 544.8 mm
- Package height: 103.9 mm
- Package weight: 2.47 kg
Logistics data
- Country of origin: China
