Description

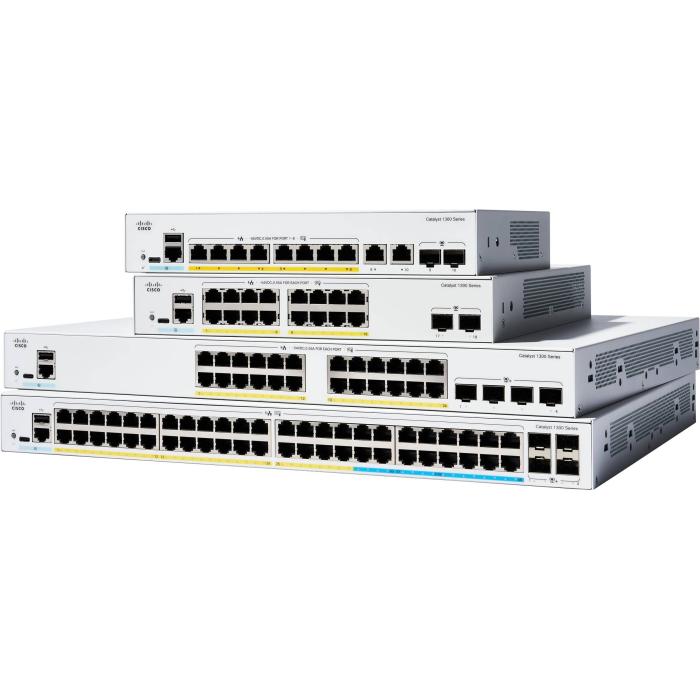

The Cisco Catalyst 1300 switch is a managed Layer 2 device with eight Gigabit Ethernet ports (10/100/1000) that include PoE support, and it comes in a grey colour. It also has two SFP combo ports for fibre options, along with an RJ-45/USB Type-C console port for administration. Management is carried out via a web interface, CLI or through MIB, and it incorporates features such as QoS, VLANs (up to 4093), storm control, port mirroring and trunking. With a packet buffer of 1.5 MB and support for static routes, this model is suitable for small or medium-sized networks that require uncomplicated traffic segmentation and prioritisation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
- Console port: RJ-45/USB Type-C
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Number of VLANs: 4093
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 16000 entries
- Static route: Yes
- Number of static routes: 990
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP Option 82, DHCP client, DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- IGMP entries: 2000
- SSH/SSL support: Yes
- Loop protection: Yes
- Authentication: MAC-based authentication, Web-based authentication
- Authentication type: RADIUS
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Grey
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 1706649 h
Power
- Power source: AC
- AC input voltage: 110 - 220 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 80.86 W
- Power plug type: Type C
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 60 W
Other features
- Packaging content: Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 275.91 BTU/h
Weight & dimensions
- Width: 184.9 mm
- Depth: 268.2 mm
- Height: 43.9 mm
- Weight: 1.53 kg
Packaging data
- Package width: 299 mm
- Package depth: 544.8 mm
- Package height: 103.9 mm
- Package weight: 3.07 kg
Logistics data
- Country of origin: China
