Description

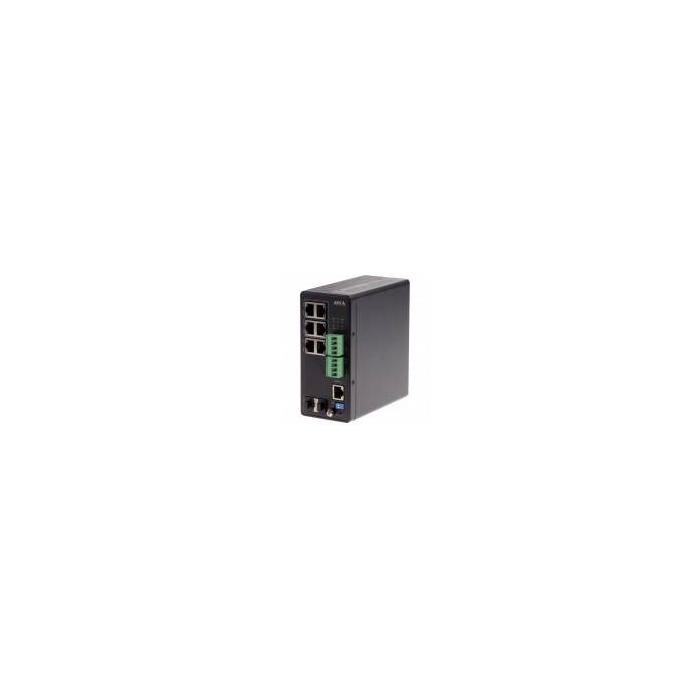

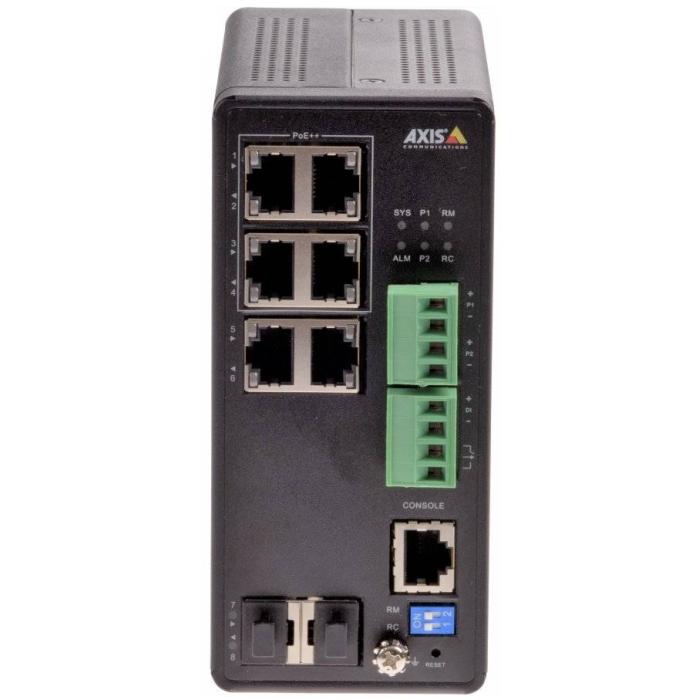

Axis 01633-001 managed switch, in black, integrates four RJ-45 Gigabit Ethernet ports (10/100/1000) with PoE support plus one SFP slot for fibre optic, along with an RJ-45 console port and a DC input socket. With a switching capacity of 16 Gbit/s and a forwarding rate of 11.9 Mpps, it manages up to 8000 entries in its MAC address table and supports jumbo frames of 9216 bytes. It includes advanced management features such as VLAN, RADIUS authentication, password protection, and security algorithms HTTPS, SNMP, and SNMPv3, following IEEE 802.1Q and IEEE 802.1x standards. This unit does not support 10G but offers a solid solution for local networks requiring segmentation and access control.
Specifications
Management features
- Switch type: Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fiber optic connector: SFP
- Console port: RJ-45
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1x
- 10G support: No
- VLAN support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Throughput: 11.9 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- Security algorithms: HTTPS, SNMP, SNMPv3
- Password protection: Yes
- Authentication type: RADIUS
Design
- Product colour: Black
- Housing material: Aluminium
Power
- DC input voltage: 54 - 57 V
- Surge protection: Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet (PoE) power per port: 60 W
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 62 mm
- Depth: 130 mm
- Height: 135 mm
- Weight: 600 g
Packaging content
- Quick start guide: Yes
Packaging data
- Mounting brackets included: Yes
Certificates
- Certification: EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
Logistics data
- Harmonized System (HS) code: 85176990
