Description

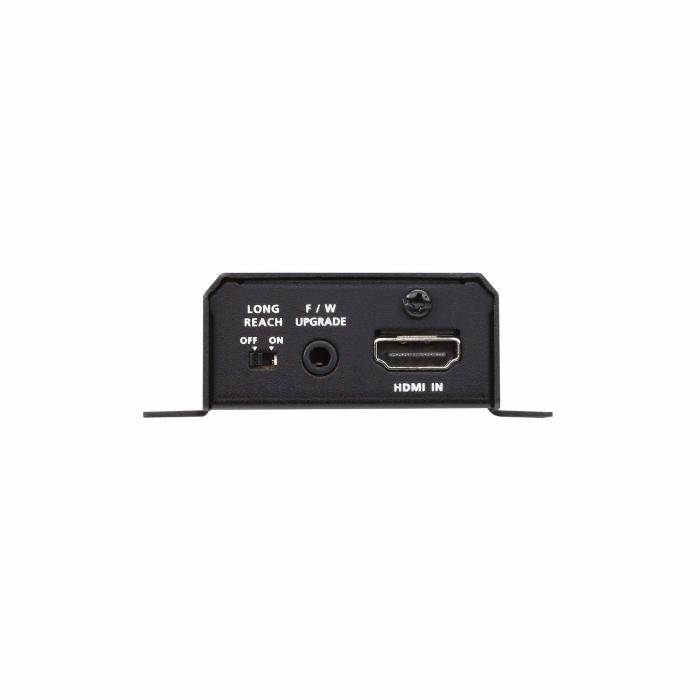

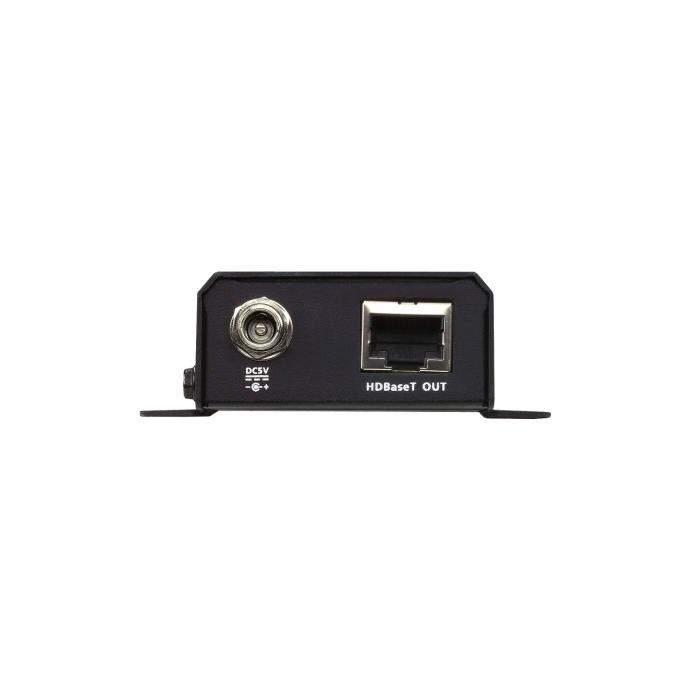

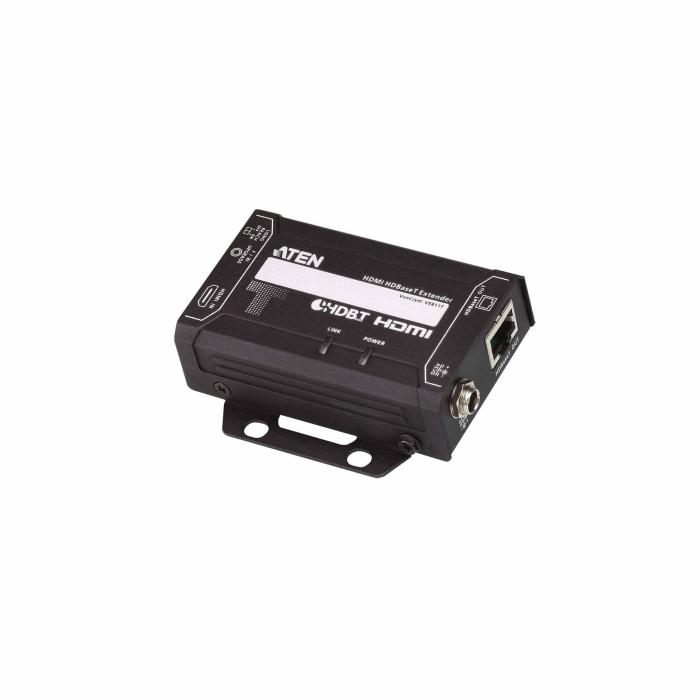

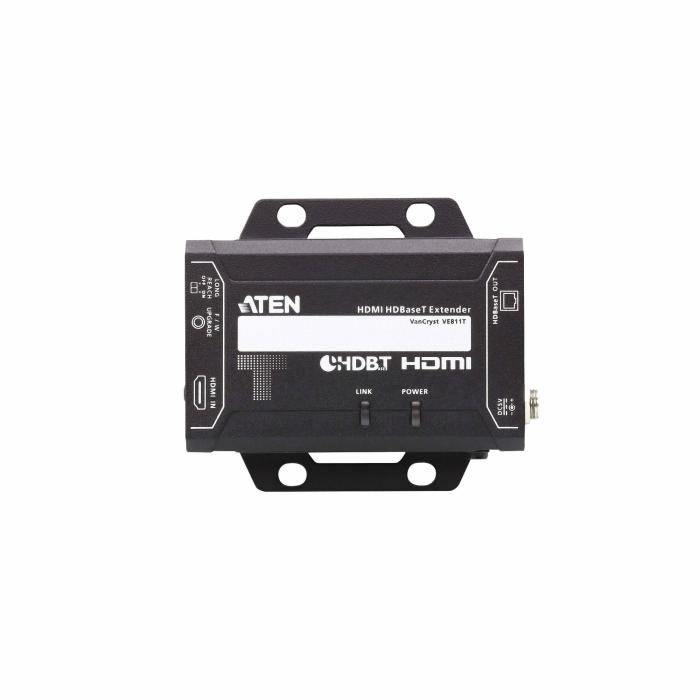

ATEN's black AV signal transmitter with a metal casing, designed to extend an HDMI signal up to 100 metres via Cat5, Cat5e, Cat6 or Cat6a network cabling. It achieves a maximum resolution of 4096 x 2160 pixels at 60 Hz and supports 340 MHz bandwidth, HDCP compliant. It includes an HDMI input, an audio input and an RJ-45 input port, powered via a 5-volt DC connector with a power consumption of 3.77 watts. Its impedance is 100 ohms and it supports a relative storage humidity between 0 and 80%.
Specifications
Features
- Type: AV transmitter
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5, Cat5e, Cat6, Cat6a
- Maximum transfer distance: 100 m
- Maximum refresh rate: 60 Hz
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- Impedance: 100 Ω
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- HDMI in: 1
- Audio input: 1
- DC-in jack: Yes
Power
- Operating voltage: 5 V
- Power consumption (typical): 3.77 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 86.4 mm
- Depth: 73 mm
- Height: 24.7 mm
- Weight: 280 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 59 mm
- Package depth: 119 mm
- Package height: 160 mm
- Package weight: 370 g
Packaging content
- Quick start guide: Yes
Logistics data
- Master (outer) case width: 250 mm
- Master (outer) case length: 325 mm
- Master (outer) case height: 175 mm
- Master (outer) case gross weight: 2.56 kg
- Master (outer) case net weight: 2.8 kg
- Products per master (outer) case: 10 pc(s)
