Description

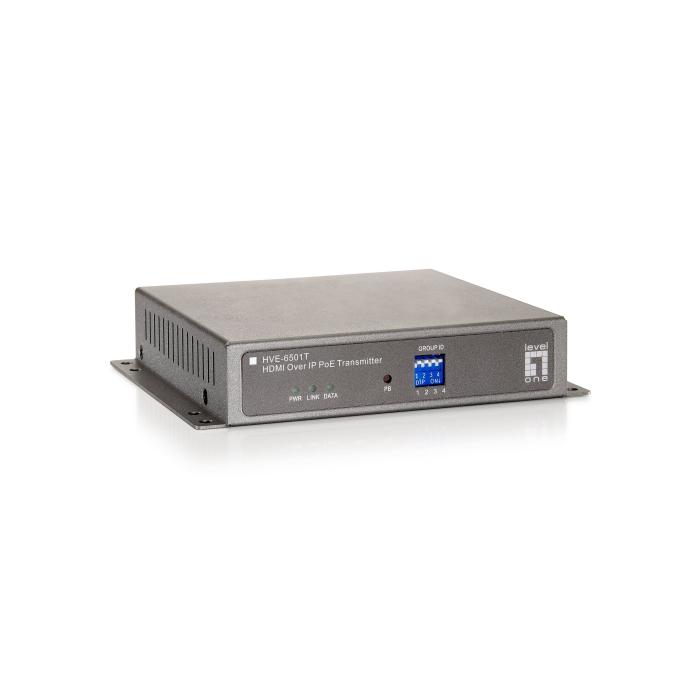

The LevelOne HVE-6501T is an AV signal transmitter with RJ-45 output that sends video and audio over a network cable. It supports 720p and 1080p video modes, with a maximum resolution of 1920 x 1080 pixels, and its HDMI 1.3 input allows a source device to be connected. It supports Cat5e, Cat6 and Cat7 cables, and includes HDCP with HDCP bypass and EDID. Power can be supplied via PoE according to the IEEE 802.3af standard or by means of the 5 V DC input socket. It includes an RS-232 serial port and three LED indicators for data, link and power to monitor its operation. It comes in grey, with a weight of 800 g and dimensions of 114 x 28 x 140 mm (width x height x depth).
Specifications
Features
- Type: AV transmitter
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5e, Cat6, Cat7
- LED indicators: Data, Link, Power
- Supported video modes: 720p, 1080p
- HDCP: Yes
- HDCP & EDID bypass: Yes
- Networking standards: IEEE 802.3af
- Product colour: Grey
- Certification: CE, FCC
Ports & interfaces
- RJ-45 output ports: 1
- HDMI in: 1
- HDMI version: 1.3
- Serial ports quantity: 1
- Serial interface type: RS-232
- DC-in jack: Yes
Power
- Operating voltage: 5 V
- Current: 1 A
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 80 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 114 mm
- Depth: 140 mm
- Height: 28 mm
- Weight: 800 g
- Transmitter dimensions (WxDxH): 140 x 114 x 28 mm
- Transmitter weight: 800 g
Packaging data
- Package width: 148 mm
- Package depth: 240 mm
- Package height: 80 mm
- Package weight: 740 g
Packaging content
- AC adapter included: Yes
- Quick start guide: Yes
Technical details
- Audio support: Yes
- Country of origin: Taiwan
