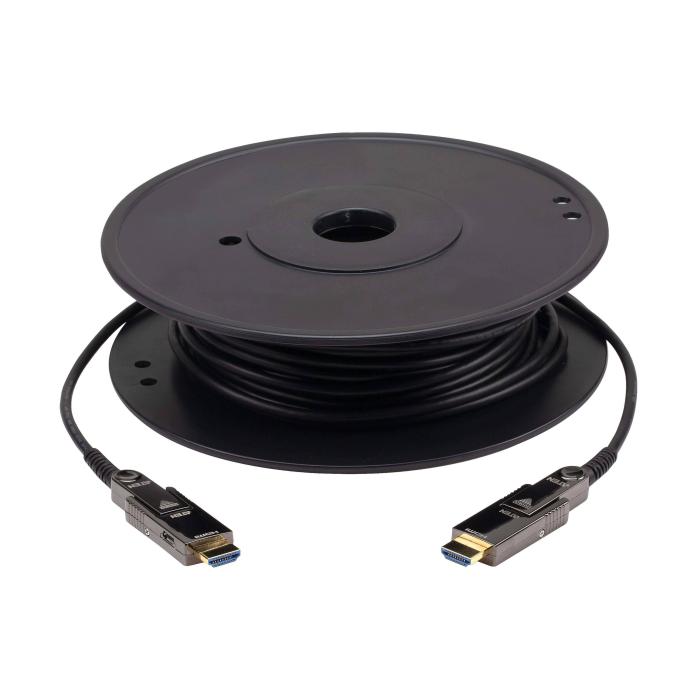

ATEN 20M True 4K HDMI Active Optical Cable

$131.40
$131.40 without VAT

ATEN 20M True 4K HDMI Active Optical Cable.   More info

Brand: ATEN
SKU: 97227 PRC: 413222 EAN: 4710469341625 PN: VE7832A-AT

Description

20M True 4K HDMI Active Optical Cable

Specifications

Features

  • Cable length: 20 m
  • Connector 1: HDMI Type D (Micro)
  • Connector 2: HDMI Type D (Micro)
  • Connector 1 gender: Male
  • Connector 2 gender: Male
  • Connector 1 form factor: Straight
  • Connector 2 form factor: Straight
  • Product colour: Black
  • 3D: Yes
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Dolby technologies: Dolby TrueHD, DTS-HD Master Audio
  • Pull-resistant connector(s): Yes
  • Pull-off force: 10 kg
  • Audio Return Channel (ARC): Yes
  • HDMI Ethernet channel: Yes
  • HDCP: Yes
  • HDCP version: 2.2
  • Data transfer rate: 18 Gbit/s
  • High Dynamic Range (HDR) supported: Yes
  • Bandwidth: 600 MHz
  • Maximum refresh rate: 60 Hz
  • Connector contacts plating: Gold
  • Cable material: Copper
  • Cable jacket material: Plenum (OFNP)
  • Bending radius (min): 2 cm
  • Cable shielding: Aluminum mylar foil
  • Plug and Play: Yes
  • Colour sampling: 4:4:4
  • Extended display identification data (EDID): Yes

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 0 - 85%

Certificates

  • Certification: CE, FCC, RoHS2, UL CMP-OF

Weight & dimensions

  • Cable diameter: 4.5 mm
  • Weight: 950 g
  • Package volume: 3964.359 cm³

Packaging content

  • Interface adapters included: Micro HDMI female - HDMI male
  • Manual: Yes
  • Screwdriver included: Yes

Packaging data

  • Package width: 225 mm
  • Package depth: 235 mm
  • Package height: 74 mm
  • Package weight: 1.03 kg
  • Quantity per pack: 1 pc(s)

Logistics data

  • Country of origin: China
  • Master (outer) case net weight: 9.5 kg
  • Master (outer) case width: 385 mm
  • Master (outer) case length: 470 mm
  • Master (outer) case height: 265 mm
  • Master (outer) case gross weight: 10.5 kg
  • Master (outer) case volume: 47855.471 cm³
