Description

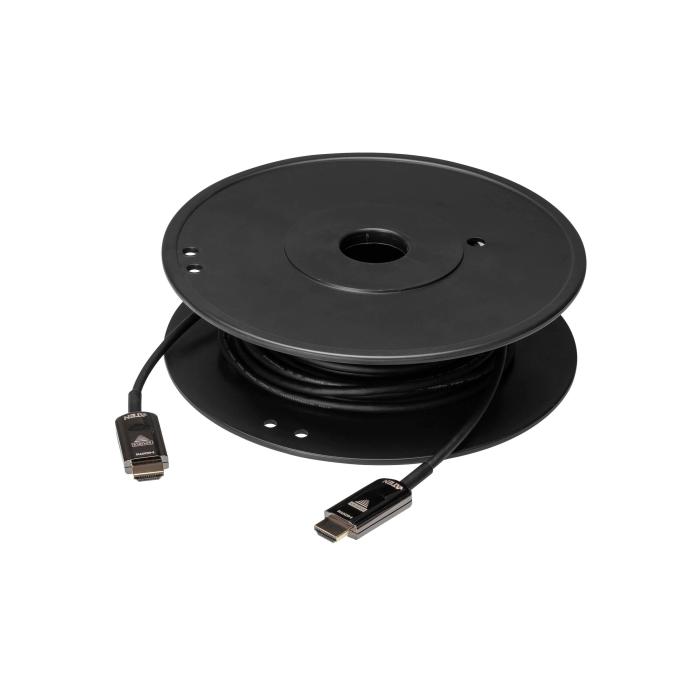

Connect your equipment with the ATEN HDMI 2.0 active optical cable, a solution designed for long signal runs. Its 20 m cable allows you to connect a source and a display separated by a considerable distance without losing image quality. Black colour and a weight of 650 g, details worth bearing in mind when installing it through walls or ceilings. It features two standard type A HDMI connectors, both male and straight, which make connection easier in tight spaces. The HDMI 2.0 version supports resolutions of 3840 x 2160 and 4096 x 2160, with a data transfer rate of 18 Gbit/s. It also offers compatibility with 3D content and with HDCP 2.0, and includes an audio return channel (ARC). As for sound, it supports formats such as DTS-HD Master Audio and Dolby TrueHD, thanks to its 600 MHz bandwidth and a refresh rate of up to 60 Hz. The contacts of its connectors are gold-plated.
Specifications
Features
- Cable length: 20 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- HDMI version: 2.0
- 3D: Yes
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
- Audio Return Channel (ARC): Yes
- HDCP: Yes
- HDCP version: 2.0
- Data transfer rate: 18 Gbit/s
- Bandwidth: 600 MHz
- Maximum refresh rate: 60 Hz
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 85%
Certificates
- Compliance certificates: RoHS
- Certification: CE / FCC/ REACH / UL VW-1/ EMC Class-A / Class-B
Weight & dimensions
- Cable diameter: 4.5 mm
- Weight: 650 g
Packaging data
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
