Description

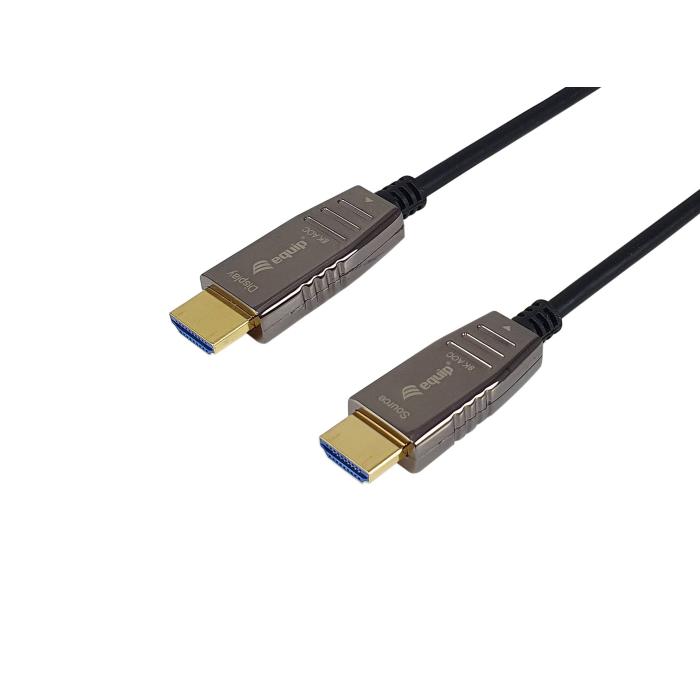

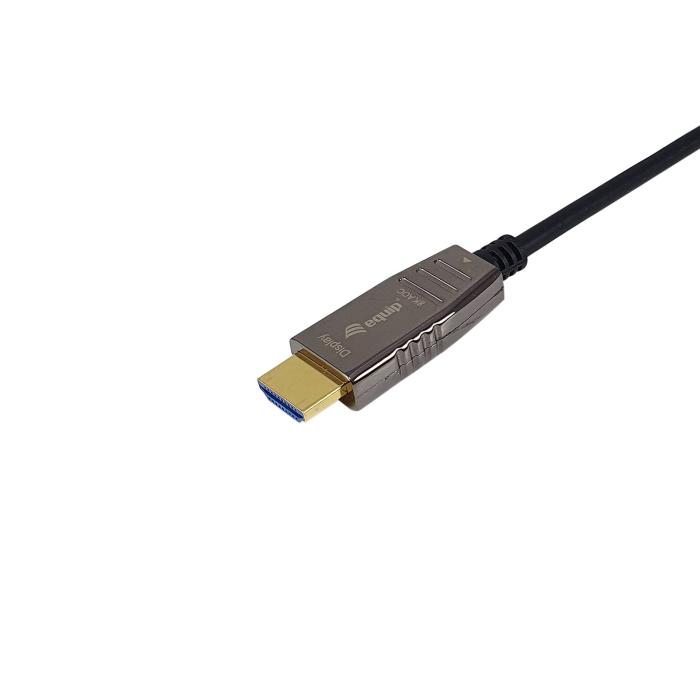

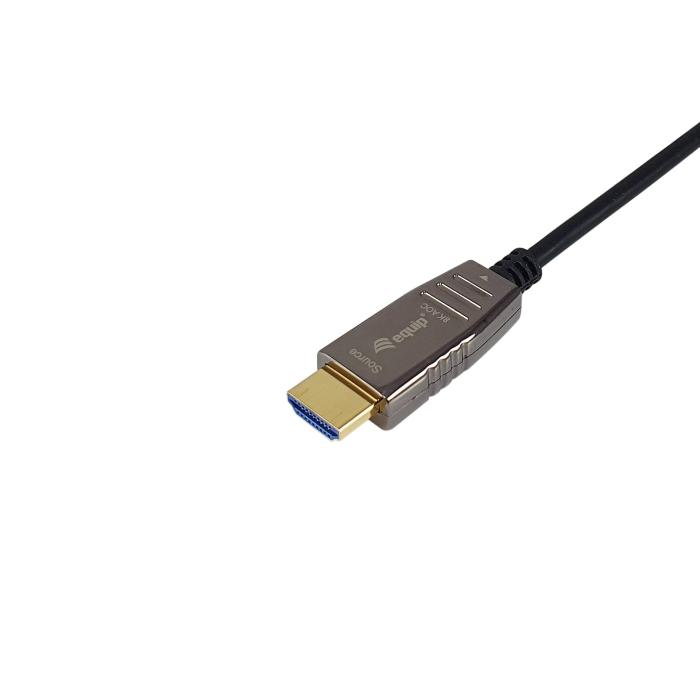

The EQUIP HDMI 2.1 active optical cable is the solution for carrying video signal over long distances without loss of quality. With a 30 m cable and black colour, it allows devices separated by an entire room to be connected while maintaining signal integrity. Its standard type A HDMI connectors, both male and straight format, feature gold-plated contacts to ensure reliable contact. It supports HDMI 2.1 version with a bandwidth of 48000 MB/s and resolutions of up to 7680 x 4320, as well as 3840 x 2160, 2560 x 1440, 5120 x 2880 and 1920 x 1200. The refresh rate reaches 120 Hz, and it is compatible with 3D content. It includes audio return channel, HDMI Ethernet channel and HDCP version 2.2 protection, along with full screen identification data (EDID). All of this in an assembly weighing 810 g, designed for installations where the run between the equipment and the screen is extensive.
Specifications
Features
- Cable length: 30 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- HDMI version: 2.1
- 3D: Yes
- Supported graphics resolutions: 3840 x 2160, 2560 x 1440, 5120 x 2880, 7680 x 4320, 1920 x 1200 (WUXGA)
- Audio Return Channel (ARC): Yes
- HDMI Ethernet channel: Yes
- HDCP: Yes
- HDCP version: 2.2
- Bandwidth: 48000 MB/s
- Maximum refresh rate: 120 Hz
- Connector contacts plating: Gold
- Extended display identification data (EDID): Yes
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: RoHS, CE
Weight & dimensions
- Weight: 810 g
Packaging data
- Package width: 205 mm
- Package depth: 65 mm
- Package height: 205 mm
- Package weight: 1 kg

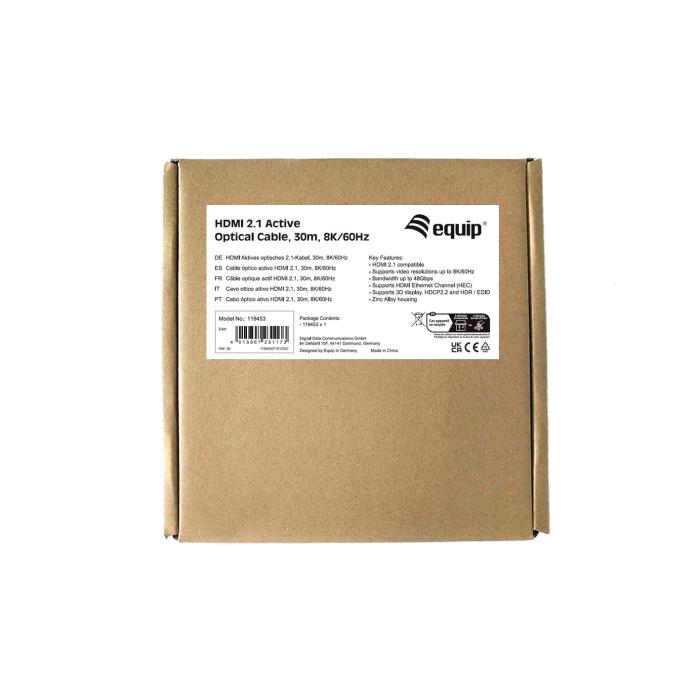

- Package type: Box
- Quantity per pack: 1 pc(s)
Logistics data
- Country of origin: China
- Master (outer) case width: 300 mm
- Master (outer) case length: 230 mm
- Master (outer) case height: 460 mm
- Master (outer) case gross weight: 10 kg
- Products per master (outer) case: 10 pc(s)
