Description

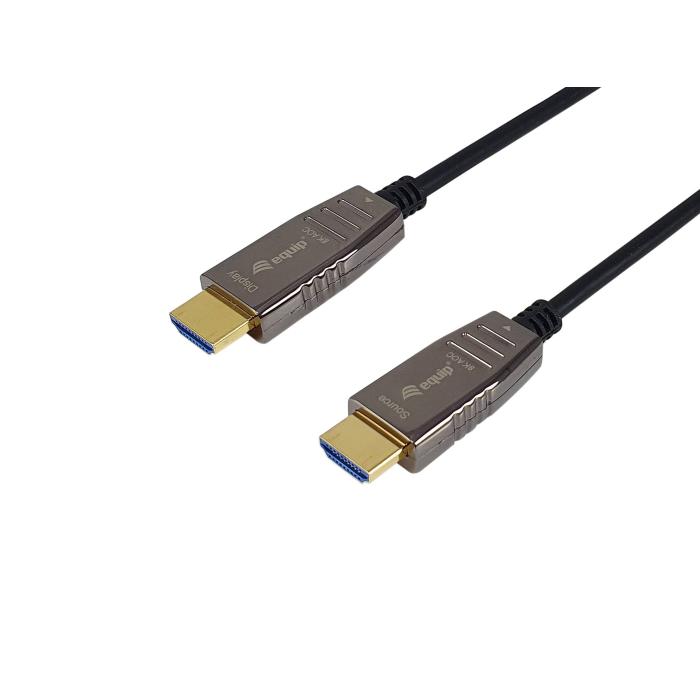

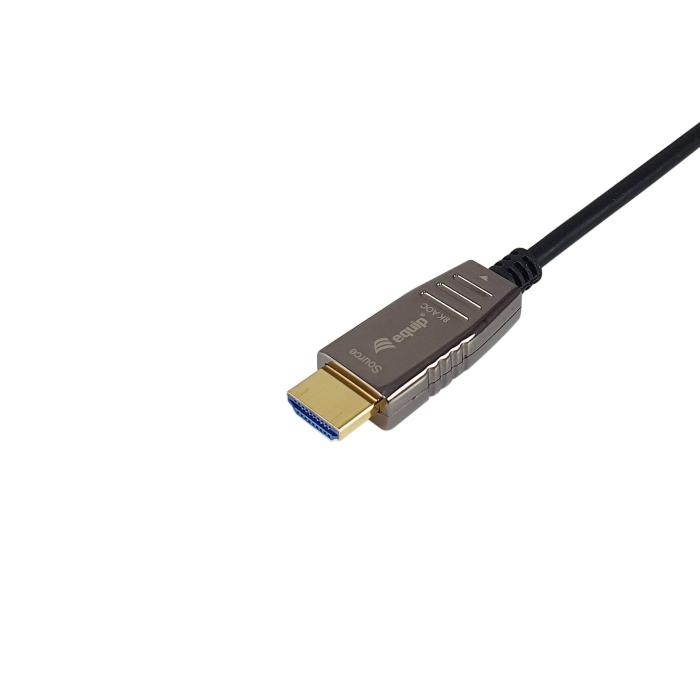

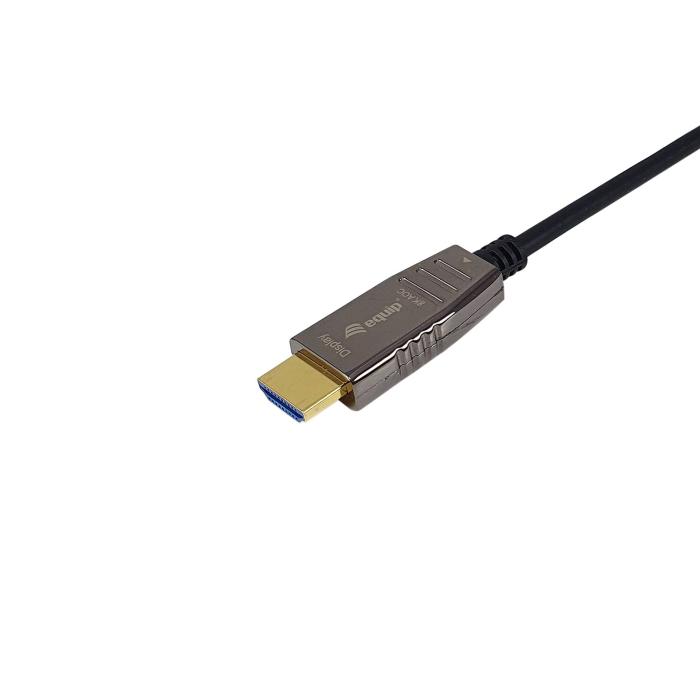

EQUIP HDMI 2.1 Active Optical Cable, 20m, black, designed to transmit 8K video at 60 Hz or 4K at 120 Hz with a bandwidth of 48 Gbps and HDR support. Its HDMI type A male connectors with gold-plated contacts and straight form factor ensure a stable and durable connection. Compatible with graphics resolutions from WUXGA up to 7680 x 4320, and integrates ARC, HDMI Ethernet, HDCP and EDID functions for a complete installation. This active cable allows devices to be linked over long distances without signal loss, maintaining the maximum refresh rate of 120 Hz for dynamic content.
Specifications
Features
- Cable length: 20 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- HDMI version: 2.1
- 3D: Yes
- Supported graphics resolutions: 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
- Audio Return Channel (ARC): Yes
- HDMI Ethernet channel: Yes
- HDCP: Yes
- HDCP version: 2.2
- Bandwidth: 48000 MB/s
- High Dynamic Range (HDR) supported: Yes
- Maximum refresh rate: 120 Hz
- Connector contacts plating: Gold
- Extended display identification data (EDID): Yes
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, RoHS
Weight & dimensions
- Weight: 460 g
Packaging data
- Package width: 205 mm
- Package depth: 65 mm
- Package height: 205 mm
- Package weight: 650 g

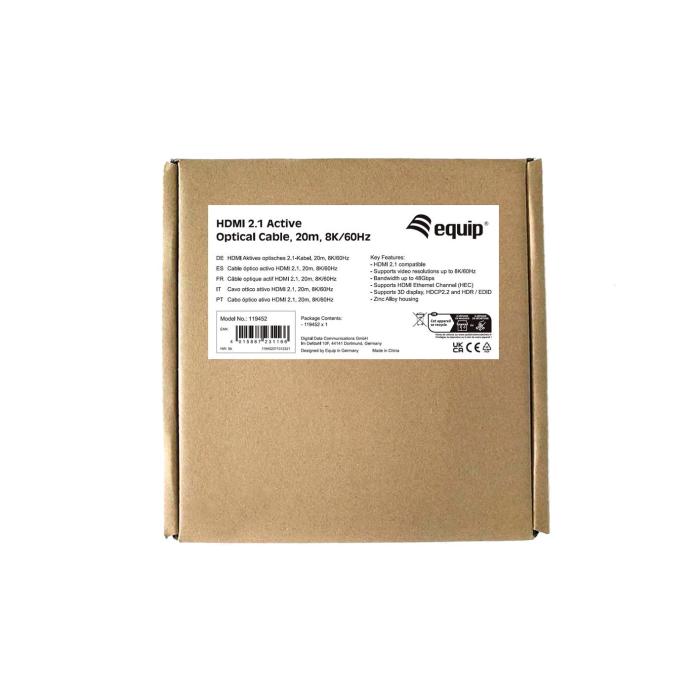

- Package type: Box
- Quantity per pack: 1 pc(s)
Logistics data
- Country of origin: China
- Master (outer) case width: 300 mm
- Master (outer) case length: 230 mm
- Master (outer) case height: 460 mm
- Master (outer) case gross weight: 6.5 kg
- Products per master (outer) case: 10 pc(s)
