Description

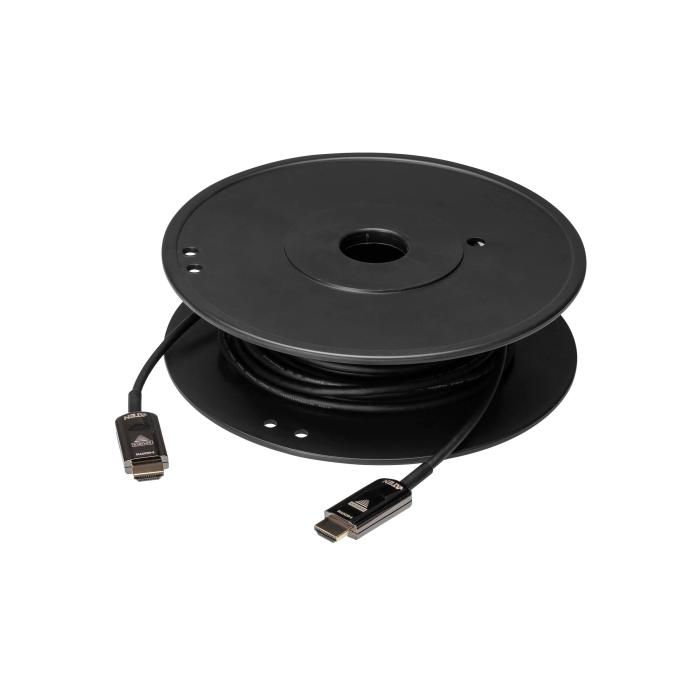

The ATEN HDMI 2.0 active optical cable, in black and with a 30 m cable, connects devices with a standard male type A HDMI connector at both ends. Its polyvinyl chloride (PVC) jacket protects the run in long installations and its gold-plated contacts favour stable transmission. With HDMI 2.0 version, it reaches a data transfer rate of 18 Gbit/s and a bandwidth of 600 MHz, as well as a maximum refresh rate of 60 Hz. It is compatible with graphic resolutions of 3840 x 2160 and 4096 x 2160, and supports 3D content and HDCP. In the audio section, it supports DTS-HD Master Audio and Dolby TrueHD. Both connectors are straight type, which makes connection easier in tight spaces. All of this in a set with a weight of 900 g.
Specifications
Features
- Cable length: 30 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- HDMI version: 2.0
- 3D: Yes
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
- Audio Return Channel (ARC): Yes
- HDCP: Yes
- HDCP version: 2.2
- Data transfer rate: 18 Gbit/s
- Bandwidth: 600 MHz
- Maximum refresh rate: 60 Hz
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
Operational conditions
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 85%
Certificates
- Compliance certificates: RoHS
- Certification: CE / FCC/ REACH / UL VW-1/ EMC Class-A / Class-B
Weight & dimensions
- Cable diameter: 4.5 mm
- Weight: 900 g
Packaging data
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
