Description

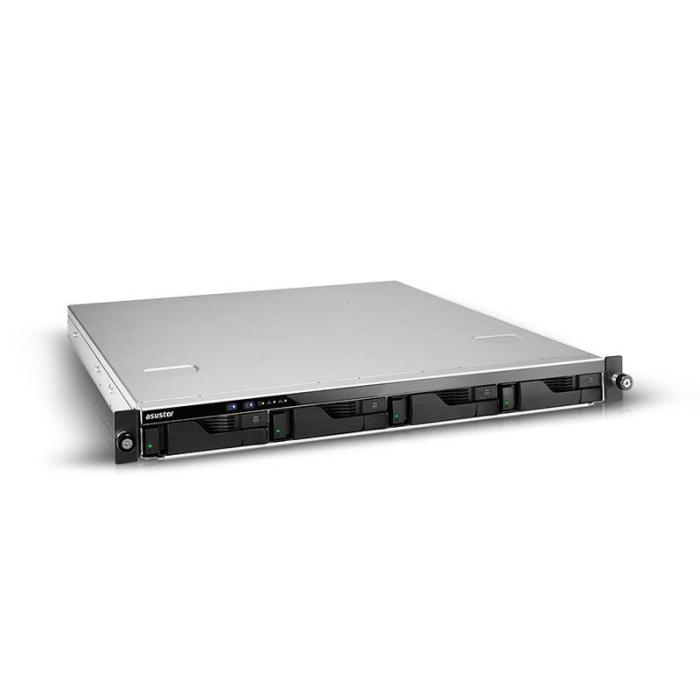

Asustor AS6504RD NAS rack unit (1U) with Intel Atom® C3538 processor, 8 GB DDR4 RAM, 0 TB storage, and ADM in black. The rackmount Asustor AS6504RD in 1U format features an Intel Atom C3538 processor, 8 GB of DDR4 memory, and ships without storage drives, leaving its four hot-swap bays ready for 2.5-inch or 3.5-inch SATA III drives. This black model supports RAID 0, 1, 5, 6, 10, and JBOD configurations, with online RAID level migration and bad sector detection to maintain data integrity. Compatible with HDDs and SSDs, it offers support for file systems such as BTRFS, ext4, NTFS, or exFAT, facilitating integration into mixed environments. With its compact rack design, this ASUSTOR device is designed to progressively expand capacity as your needs grow.
Specifications
Storage
- Storage drive capacity: 0 GB
- Supported storage drive interfaces: Serial ATA III
- Storage drive sizes supported: 2.5, 3.5"
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Online RAID migration: Yes
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 4
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
- Bad block scan: Yes
Processor
- Processor manufacturer: Intel
- Processor family: Intel Atom®
- Processor model: C3538
- Processor frequency: 2.1 GHz
- Processor cores: 4
- CPU configuration (max): 1
- Conflict-Free processor: Yes
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 128 GB
- Memory slots: 4
- Memory form factor: SO-DIMM
- Flash memory: 8000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
- Link aggregation: Yes
- Load balancing system: Yes
- Dynamic DNS (DDNS): Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 4
- PCI Express x8 (Gen 3.x) slots: 1
Design
- Chassis type: Rack (1U)
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 6 cm
- LED indicators: Yes
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Multilingual support: Yes
- Snapshot: Yes
- Web-based management: Yes
- Security algorithms: 256-bit AES, HTTPS, SNMP, SNMPv2, SNMPv3, SSL/TLS, WPA-Enterprise, WPA2-Enterprise
- Access Control List (ACL): Yes
- Built-in UPnP AV media server: Yes
- Browser supported: Firefox, Chrome, Safari, Microsoft Edge
- System log: Yes
- S.M.A.R.T. support: Yes
Software
- Operating system installed: ADM
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 250 W
- Number of power supply units: 2
- Redundant power supply (RPS) support: Yes
- Power consumption (typical): 65 W
- Power consumption (HDD standby): 42.4 W
- AC input voltage: 100-240 V
Weight & dimensions
- Width: 439 mm
- Depth: 515 mm
- Height: 44 mm
- Weight: 9.3 kg
Packaging content
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
Processor special features
- Embedded options available: Yes
- Execute Disable Bit: Yes
- Intel QuickAssist Technology: Yes
- Intel Secure Boot: Yes
- Intel Secure Boot Technology version: 1.00
- Intel Secure Key Technology version: 1.00
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 90%
Logistics data
- Harmonized System (HS) code: 84714100
Other features
- Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
