Description

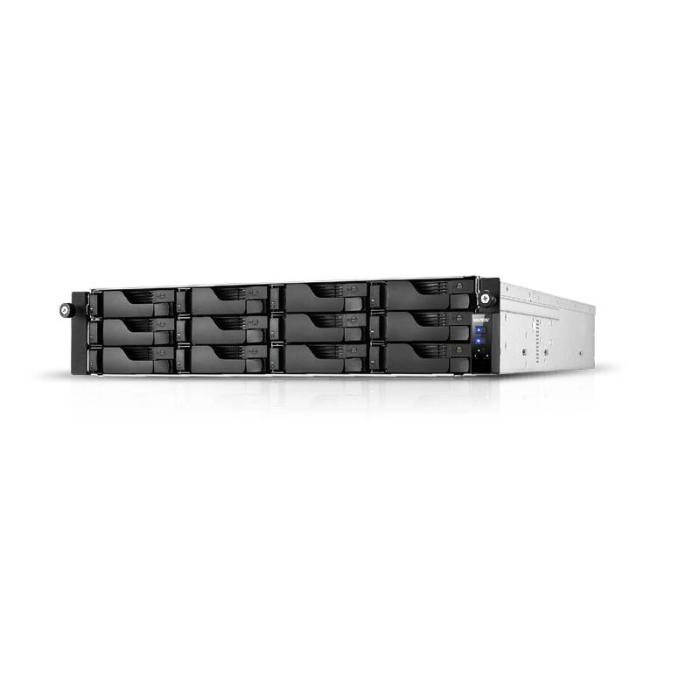

The Asustor AS6512RD rack NAS, in 2U format with black finish, integrates an Intel Atom C3538 processor with 8 GB DDR4, ready for you to install your own drives. This model without included units supports up to 12 hot-swap bays for 2.5 or 3.5-inch drives with SATA III interface, reaching a maximum storage capacity of 216 TB. With support for RAID levels 0, 1, 5, 6, 10 and JBOD, as well as online RAID migration and bad sector detection, it manages backups and critical data with flexibility. Compatible with HDDs and SSDs, and with file systems such as BTRFS, exFAT or ext4, it offers a robust solution for professional environments requiring high density and reliability.
Specifications
Storage
- Storage drive capacity: 0 GB
- Supported storage drive interfaces: Serial ATA III
- Storage drive sizes supported: 2.5, 3.5"
- Maximum supported storage capacity: 216 TB
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Online RAID migration: Yes
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 12
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
- Bad block scan: Yes
Processor
- Processor manufacturer: Intel
- Processor family: Intel Atom®
- Processor model: C3538
- Processor frequency: 2.1 GHz
- Processor cores: 4
- CPU configuration (max): 1
- Conflict-Free processor: Yes
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 128 GB
- Memory slots: 4
- Memory form factor: SO-DIMM
- Flash memory: 8000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
- Link aggregation: Yes
- Load balancing system: Yes
- Dynamic DNS (DDNS): Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 4
- PCI Express x8 (Gen 3.x) slots: 1
Design
- Chassis type: Rack (2U)
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 6 cm
- LED indicators: Yes
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Multilingual support: Yes
- Snapshot: Yes
- Web-based management: Yes
- Security algorithms: 256-bit AES, HTTPS, SNMP, SNMPv2, SNMPv3, SSL/TLS, WPA-Enterprise, WPA2-Enterprise
- Access Control List (ACL): Yes
- Built-in UPnP AV media server: Yes
- Browser supported: Firefox, Chrome, Safari, Microsoft Edge
- System log: Yes
- S.M.A.R.T. support: Yes
Software
- Operating system installed: ADM
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 350 W
- Number of power supply units: 2
- Redundant power supply (RPS) support: Yes
- Power consumption (typical): 115 W
- Power consumption (HDD standby): 67 W
- AC input voltage: 100-240 V
Weight & dimensions
- Width: 439 mm
- Depth: 535 mm
- Height: 88 mm
- Weight: 11.7 kg
Packaging content
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
Processor special features
- Embedded options available: Yes
- Execute Disable Bit: Yes
- Intel QuickAssist Technology: Yes
- Intel Secure Boot: Yes
- Intel Secure Boot Technology version: 1.00
- Intel Secure Key Technology version: 1.00
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 90%
Logistics data
- Harmonized System (HS) code: 84714100
Other features
- Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
