Description

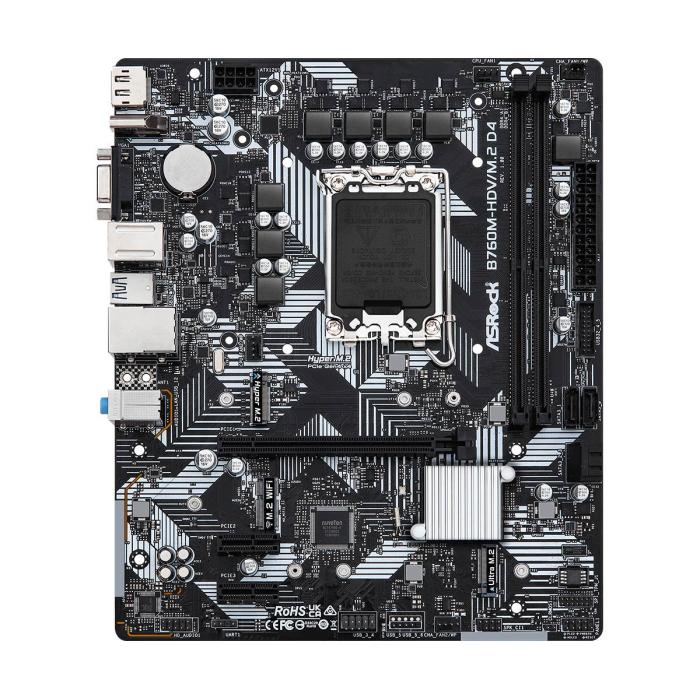

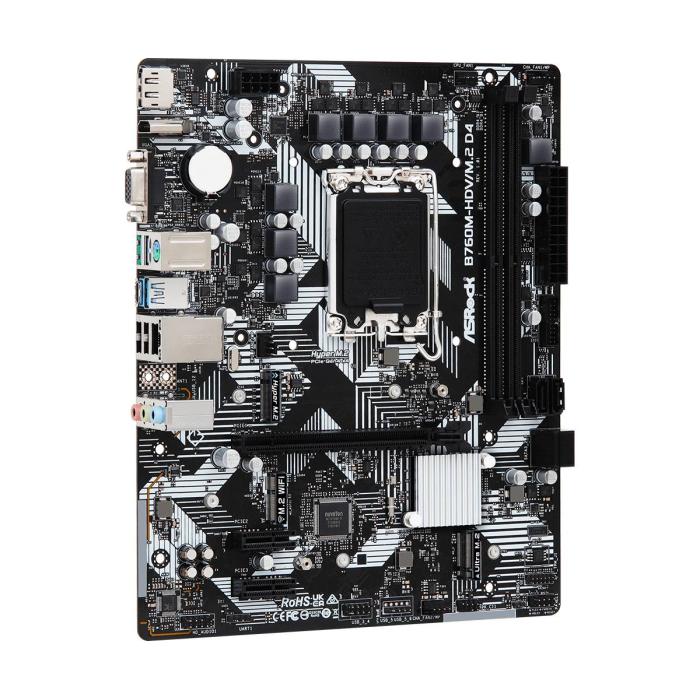

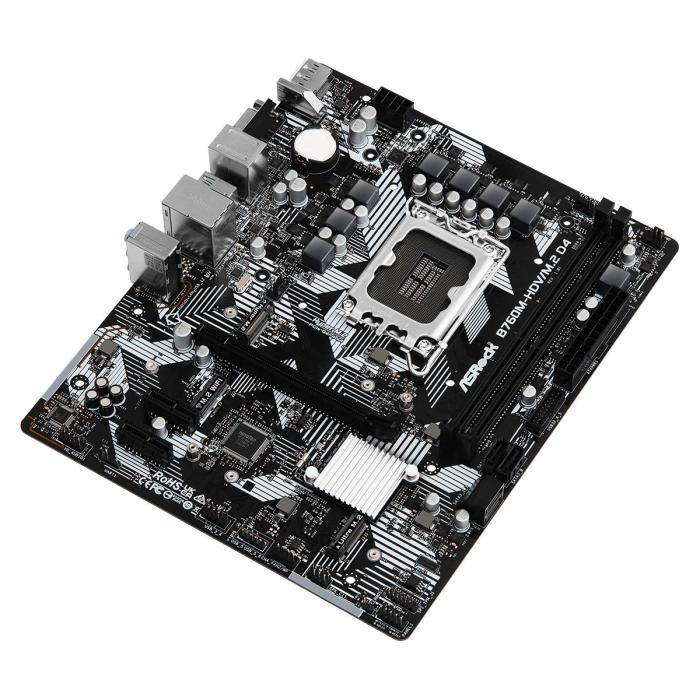

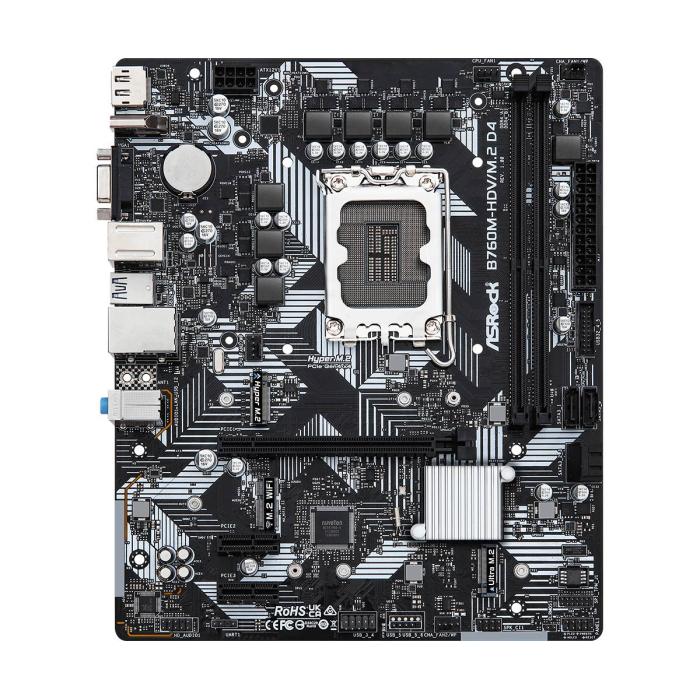

ASRock B760M-HDV/M.2 D4 motherboard in micro ATX format, designed with an LGA 1700 socket for Intel Core processors from the 10th to 13th generation and compatible with dual-channel DDR4 memory through two DIMM slots, supporting modules of up to 64 GB at speeds of 3200, 4400, and 5333 MHz. It features two storage slots, supporting M.2 and SATA III interfaces with RAID 0, 1, 5, and 10 configurations. This unit integrates HDCP graphics support and an 8-pin EPS power connector for the processor, though it does not support parallel processing. Connect your system with this board, which offers compatibility with unbuffered non-ECC memory, suiting basic desktop configurations.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 3200, 4400, 5333 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- HDCP: Yes
Internal I/O
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- USB 2.0 connectors: 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes

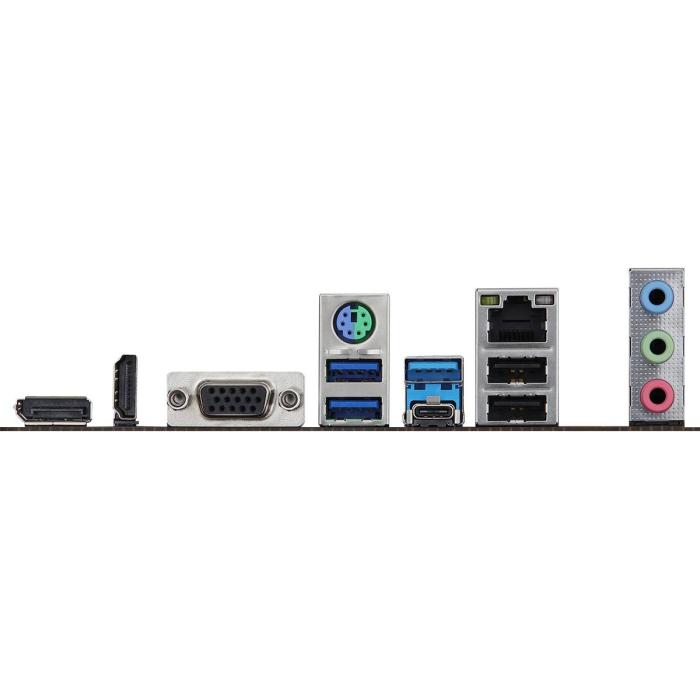

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
Features
- Motherboard chipset: Intel B760
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 Education x64, Windows 11 x64
- Certification: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
Weight & dimensions
- Width: 244 mm
- Depth: 201 mm
Packaging content
- Cables included: SATA
