Description

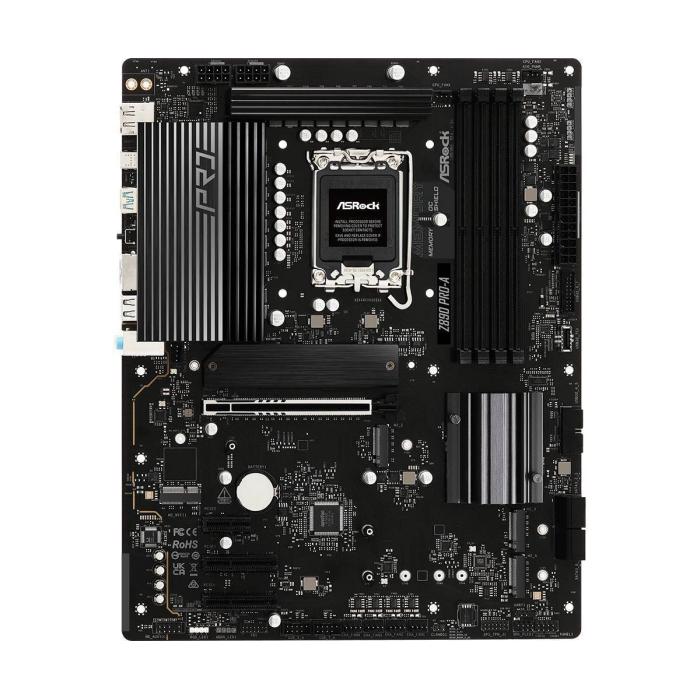

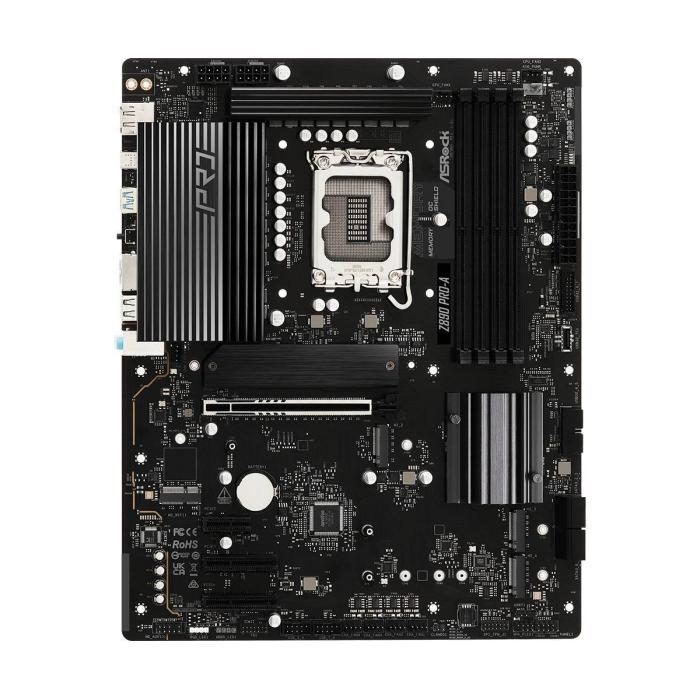

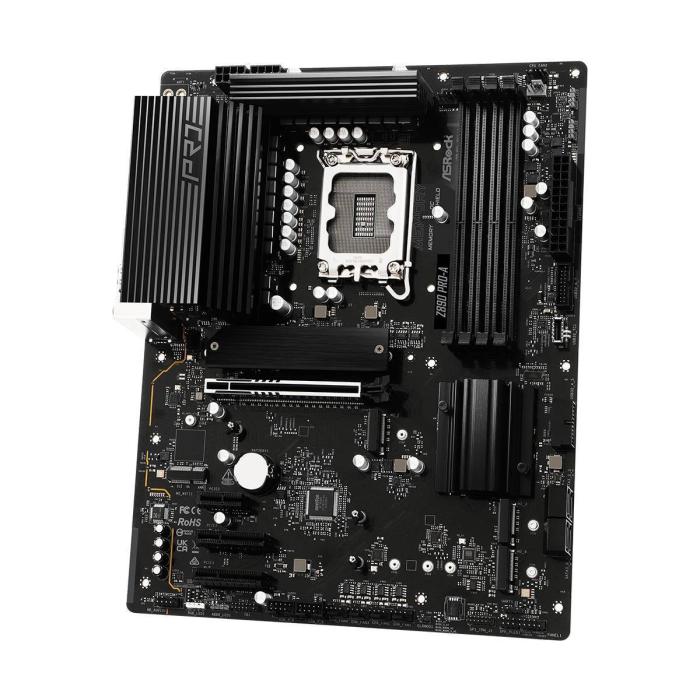

ASROCK Z890 Pro-A motherboard with LGA 1851 (Socket V1) socket for Intel Core Ultra (Series 2) processors, designed in ATX form factor. It features four DIMM slots for unbuffered DDR5-SDRAM memory, with dual-channel support and a maximum capacity of 256 GB, achieving clock speeds of up to 9066 MHz. In terms of storage, it offers compatibility with up to eight HDD or SSD drives via M.2 and SATA III interfaces, including support for RAID configurations at levels 0, 1, 5, and 10. This motherboard integrates controllers that manage up to four additional hard drives, facilitating system expansion with versatile storage options.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speed (max): 9066 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 8
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 4
- Audio connector: Yes
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 5
- TPM connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes

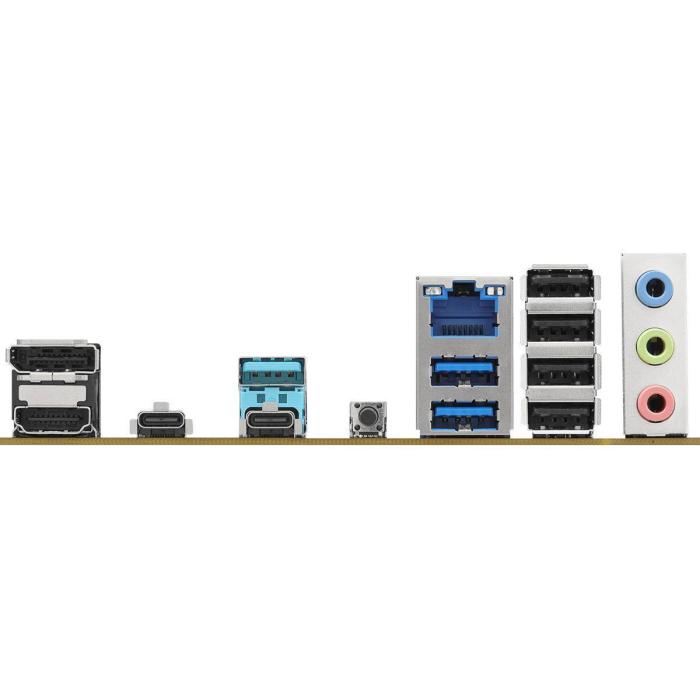

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- Thunderbolt ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: No
Features
- Motherboard chipset: Intel Z890
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x4 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
Packaging content
- Cables included: SATA
- Screws included: Yes
Technical details
- Compliance certificates: Federal Communications Commission (FCC), CE
