Description

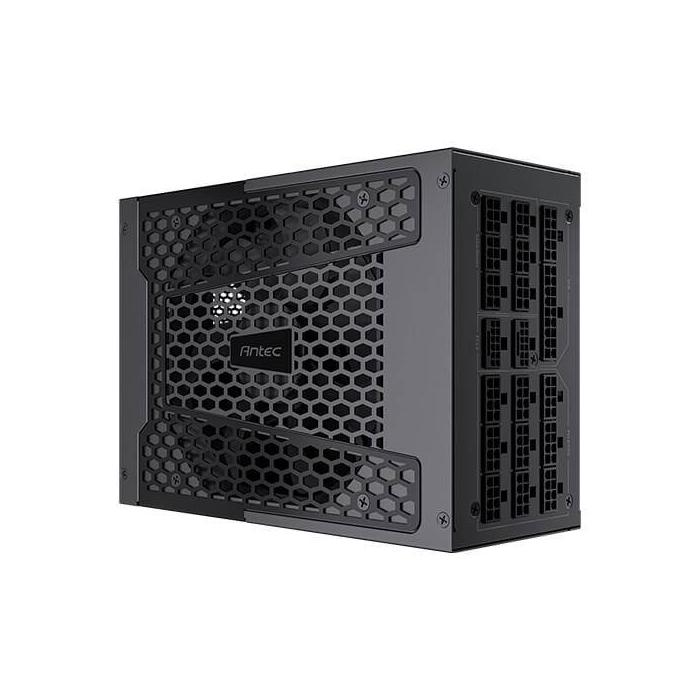

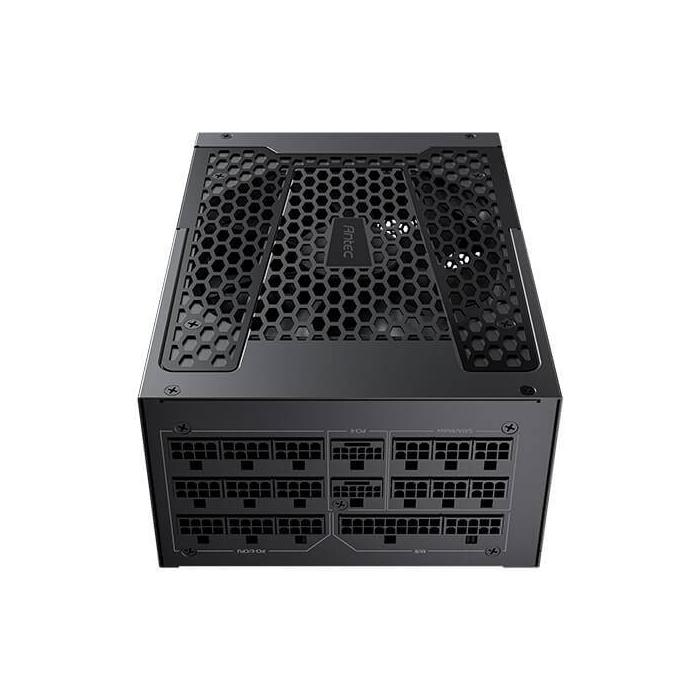

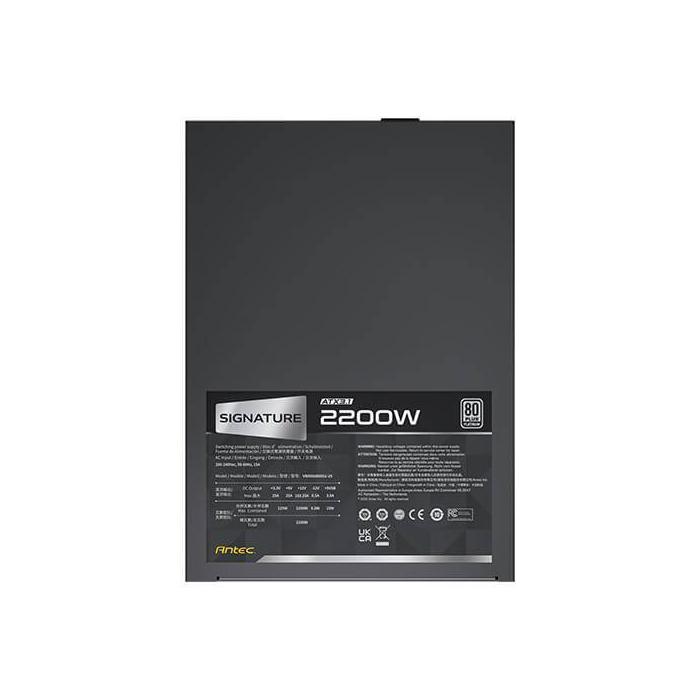

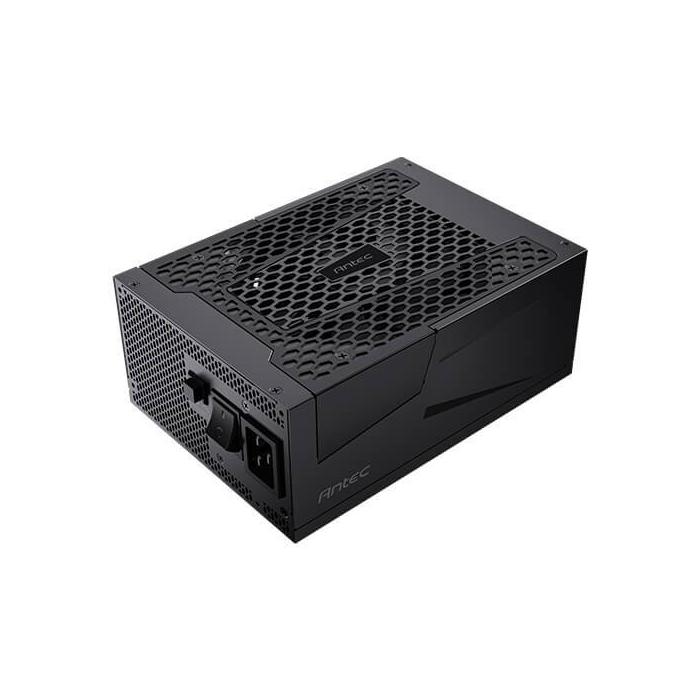

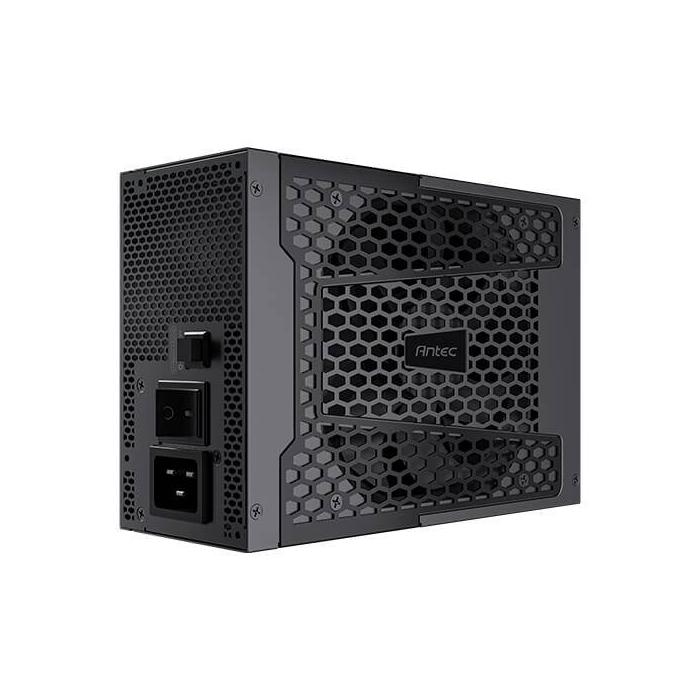

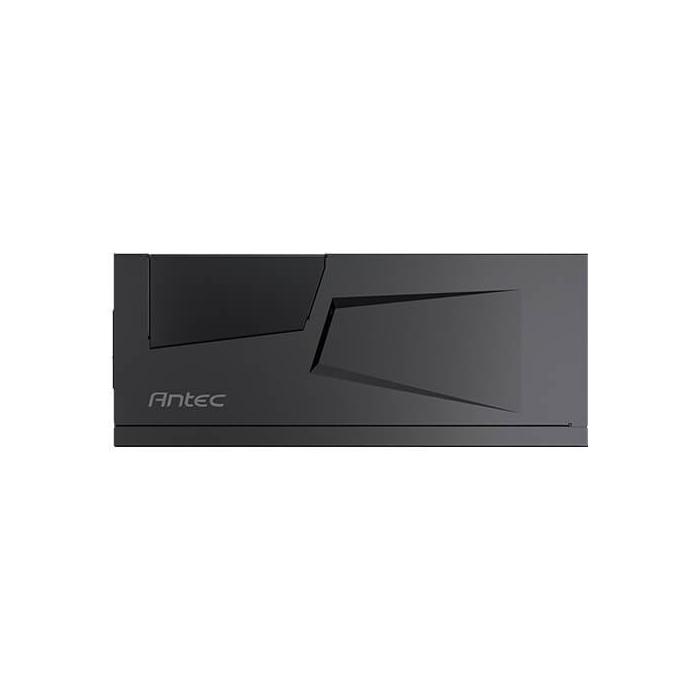

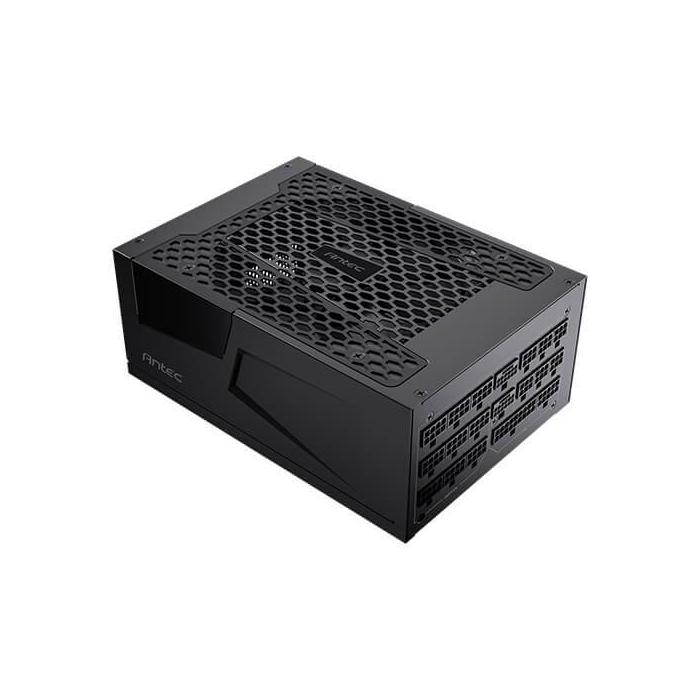

The Antec SIGNATURE 2200 Platinum is a 2200 W ATX power supply unit in black, with Platinum certification. It offers active PFC and supports an input of 200 to 240 V at 50/60 Hz, with an input current of 15 A. On the +12 V rail it delivers up to 183.33 A, while the +3.3 V and +5 V rails provide 25 A each. It incorporates protections against overcurrent, overvoltage, short circuit and undervoltage. It includes 18 SATA power connectors and a 12+4 pin PCI Express cable with a length of 700 mm.
Specifications

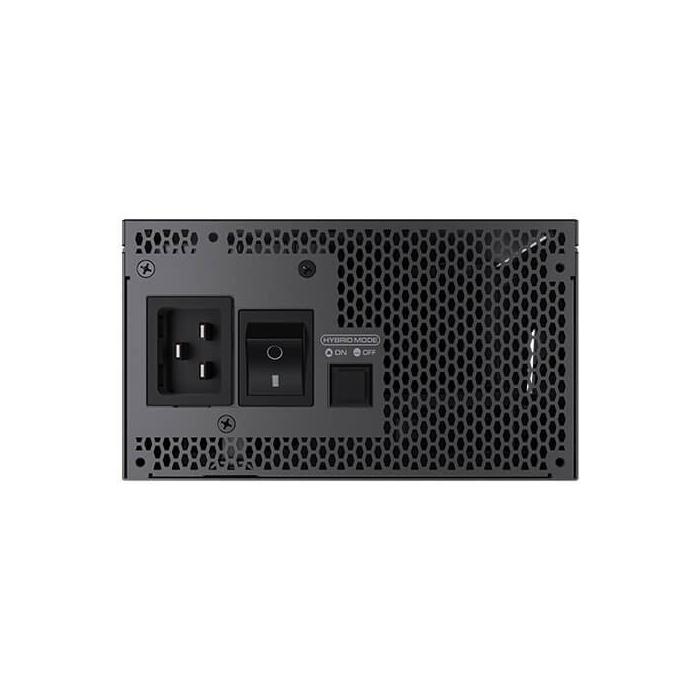

Power
- Total power: 2200 W
- AC input voltage: 200 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 125 W
- Combined power (+12V): 2200 W
- Combined power (+5V): 125 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 183.33 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Short circuit, Under voltage

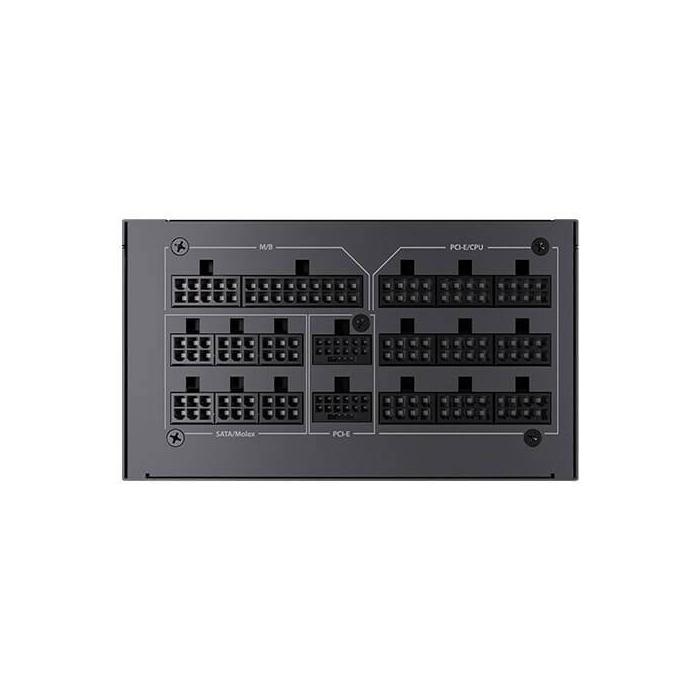

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 18
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 120, 450 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (12+4 pin): 2
- PCI Express power connectors (12+4 pin) cable length: 700 mm
- PCI Express power cable length: 75 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm

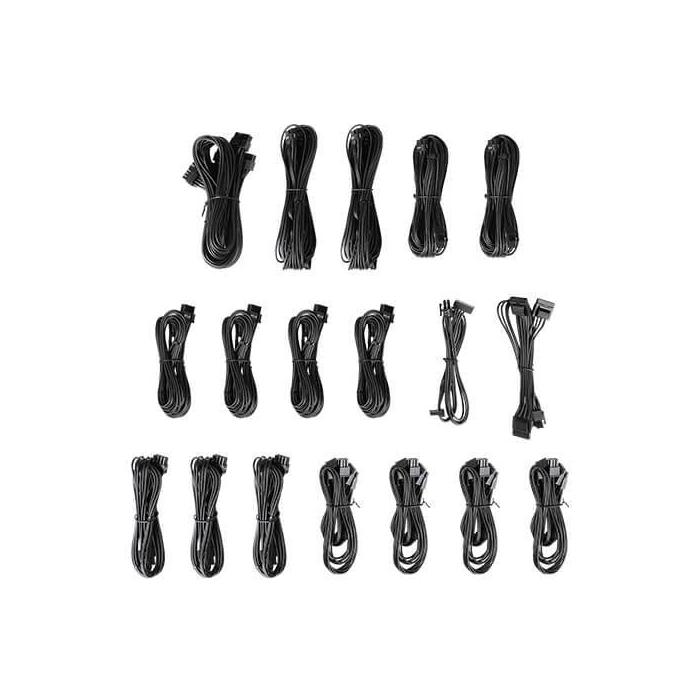

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
Design
- Product colour: Black
- Cooling type: Active

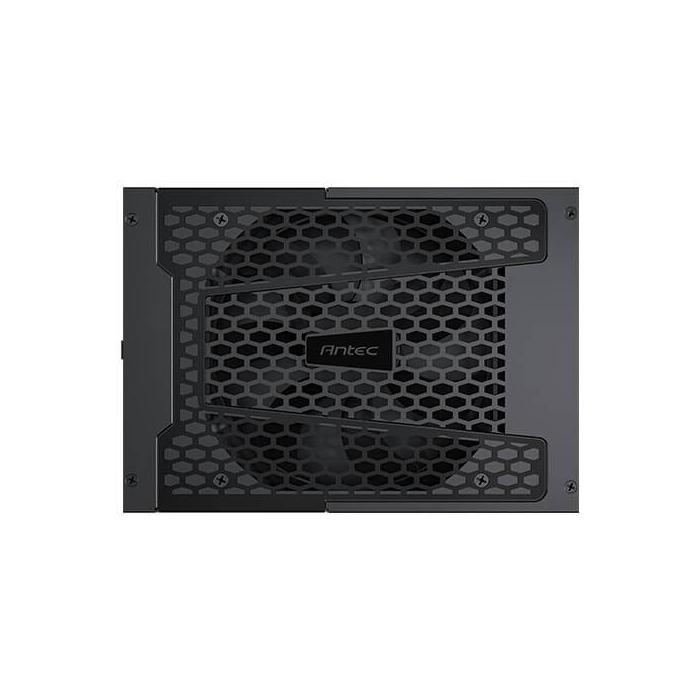

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 505 mm
- Depth: 600 mm
- Height: 205 mm
- Weight: 4.43 kg
Packaging data
- Package weight: 4.85 kg
