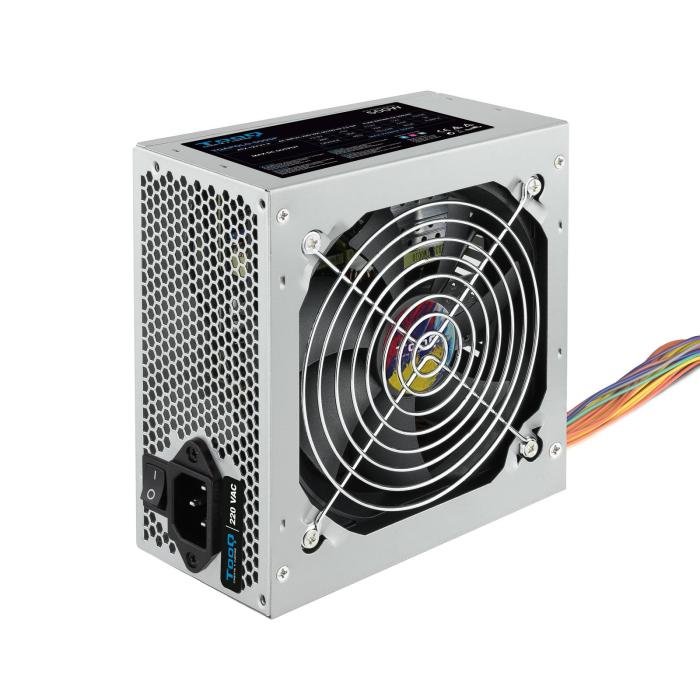

TooQ TQAPOLO-500SP power supply unit 500 W 20+4 pin ATX ATX Silver

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Product 7 image

TooQ TQAPOLO-500SP power supply unit 500 W 20+4 pin ATX ATX Silver

26.00 €

21.49 € without VAT

Amount

Brand: TOOQ

SKU: 90311 PRC: 344503 EAN: 8433281010260 PN: TQAPOLO-500SP

Description

TooQ TQAPOLO-500SP, 500 W, 220 V, 50 - 60 Hz, 2.5 - 5 A, Active, 28 A

Specifications

Power

Total power: 500 W
AC input voltage: 220 V
AC input frequency: 50 - 60 Hz
Input current: 2.5 - 5 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 28 A
Max output current (+12V): 22 A
Max output current (+5V): 30 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

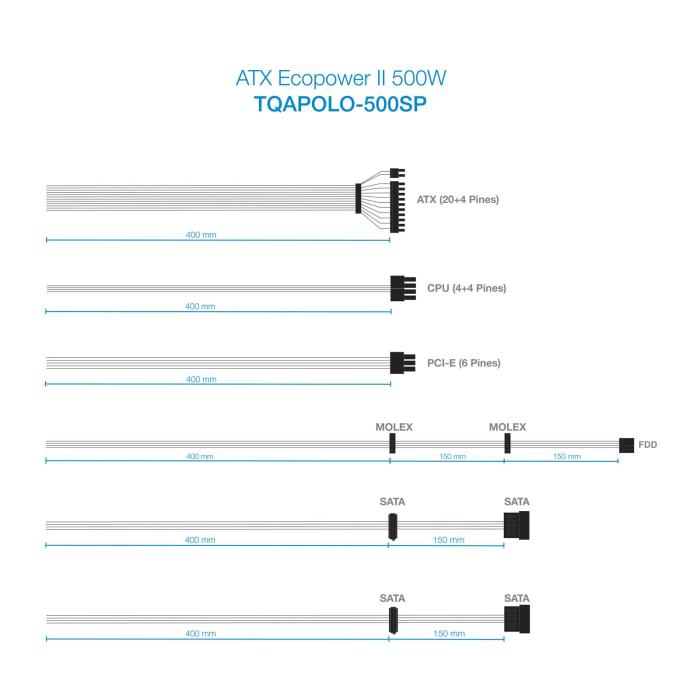

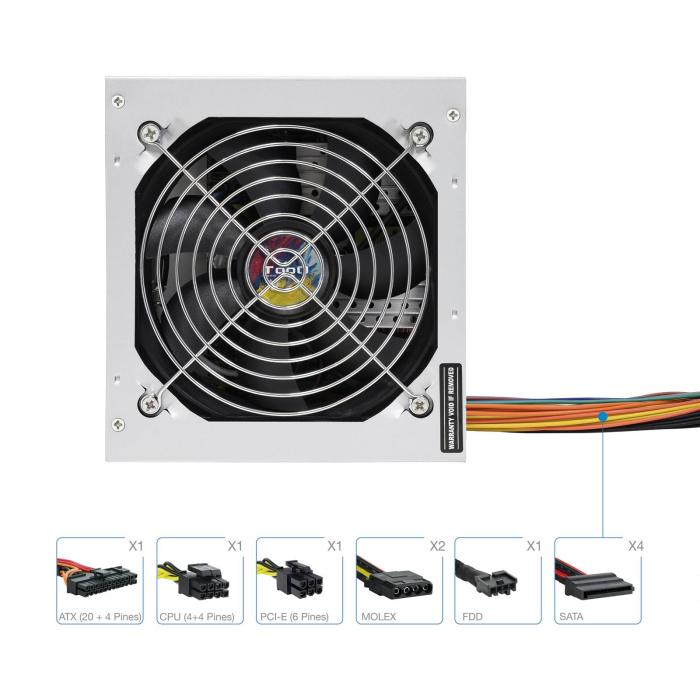

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 40 cm
Number of SATA power connectors: 4
SATA power cable length: 400, 550 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 400, 550 mm
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6-pin): 1
PCI Express power cable length: 40 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 40 cm
Floppy drive power connector: 1
Floppy disk drive connector: Yes
Floppy disk drive cable length: 70 cm
PCI Express connector: Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: No
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 1.3

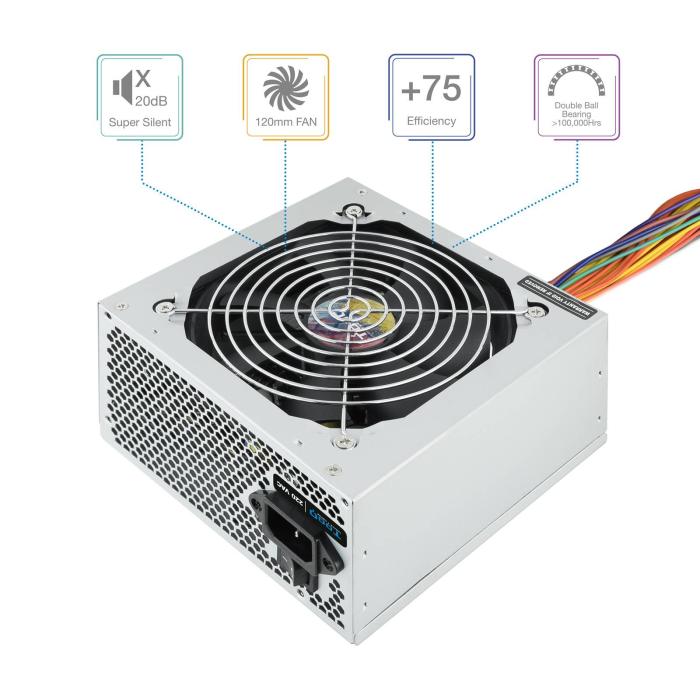

Design

Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

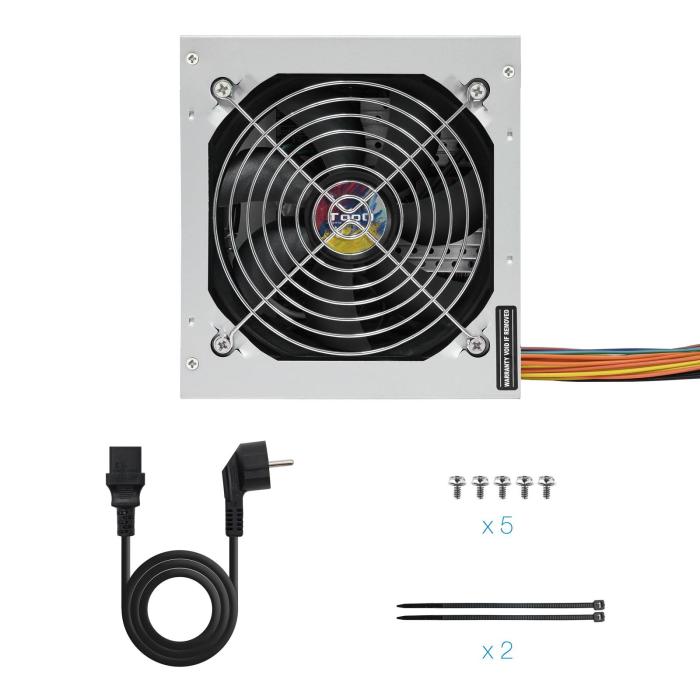

Packaging content

Cables included: AC

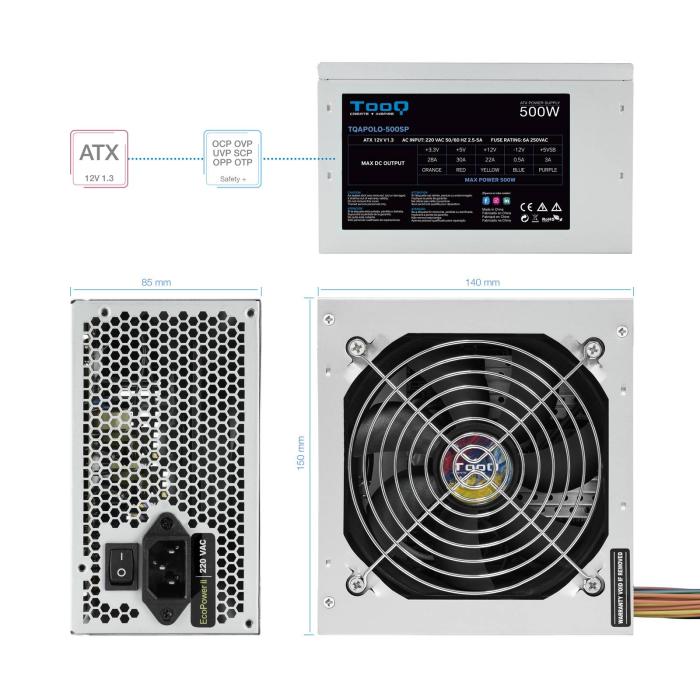

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 85 mm

Packaging data

Manual: Yes
Package width: 228 mm
Package depth: 159 mm
Package height: 100 mm
Package type: Box

Other features

Screws included: Yes
Number of screws: 5
Cable ties included: Yes
