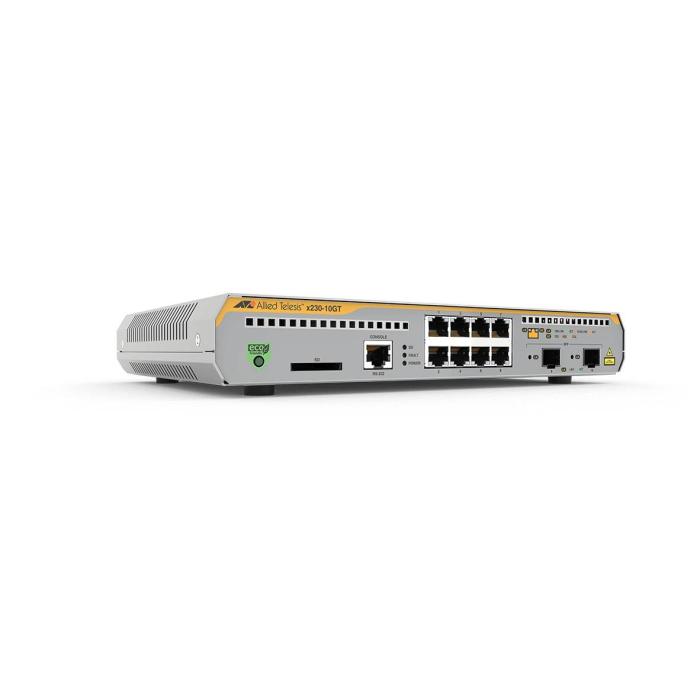

Allied Telesis AT-x230-10GT-50 Managed L3 Gigabit Ethernet (10/100/1000) Grey
More info
Brand: ALLIED TELESIS
636.00 €
SKU:
120696
PRC:
203955
EAN:
767035209630
PN:
AT-X230-10GT-50
Description
L2+ managed switch, 8 x 10/100/1000Mbps, 2 x SFP uplink slots, 1 Fixed AC power supply EU Power cord
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- Throughput: 14.9 Mpps
- MAC address table: 16000 entries
Security
- DHCP features: DHCP server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
- LED indicators: Yes
- Safety: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Performance
- Internal memory: 256 MB
Power
- AC input voltage: 90 - 260 V
- AC input frequency: 47/63 Hz
- Power consumption (typical): 16 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating altitude: 0 - 3048 m
- Heat dissipation: 55 BTU/h
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 265 mm
- Depth: 180 mm
- Height: 42.5 mm
- Weight: 1.5 kg
Packaging data
- Package width: 430 mm
- Package depth: 360 mm
- Package height: 150 mm
- Package weight: 2.85 kg
Logistics data
- Harmonized System (HS) code: 85176990
