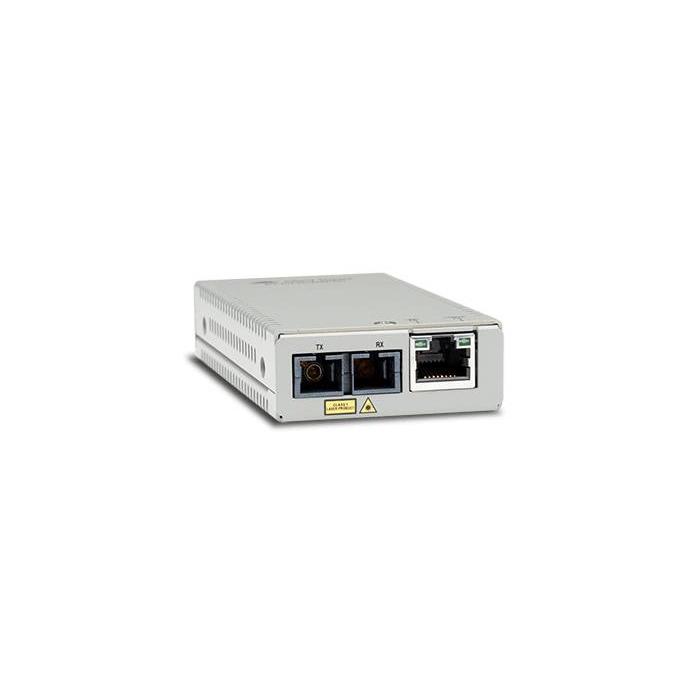

Allied Telesis AT-MMC200LX/SC-TAA-60 network media converter 100 Mbit/s 1310 nm Grey

Not avaliable

Allied Telesis AT-MMC200LX/SC-TAA-60 network media converter 100 Mbit/s 1310 nm Grey.   More info

Brand: ALLIED TELESIS
SKU: 86937 PRC: 309051 EAN: 767035216416 PN: 990-006322-60

Description

Specifications

Network

  • Maximum data transfer rate: 100 Mbit/s
  • Converter input interface: 10Base-T, 100Base-T
  • Converter output interface: 100Base-LX
  • Networking standards: IEEE 802.1Q
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10, 100 Mbit/s
  • Fiber ethernet cabling technology: 100BASE-LX
  • Packet forwarding rate (10 Mbps): 14880 pps
  • Packet forwarding rate (100 Mbps): 148880 pps
  • Packet forwarding rate (1 Gbps): 1488000 pps
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • VLAN support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Store-and-forward: Yes
  • Duplex system: Full

Performance

  • Maximum transfer distance: 20000 m
  • Wavelength: 1310 nm
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • Tx power (min): -15 dBmW
  • Tx power (max): -5 dBmW
  • Rx power (min): -32 dBmW
  • Rx power (max): -34 dBmW

Features

  • Internal: No
  • LED indicators: Yes
  • Product colour: Grey

Ports & interfaces

  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 2
  • Fiber optic connector: SC
  • DC-in jack: Yes

Power

  • Input voltage: 12 V
  • Input current: 0.14 A

Weight & dimensions

  • Width: 56 mm
  • Depth: 101.6 mm
  • Height: 21.8 mm

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -30 - 70 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3048 m

Packaging content

  • AC adapter included: Yes

Certificates

  • Safety: UL60950-1, EN60950-1
