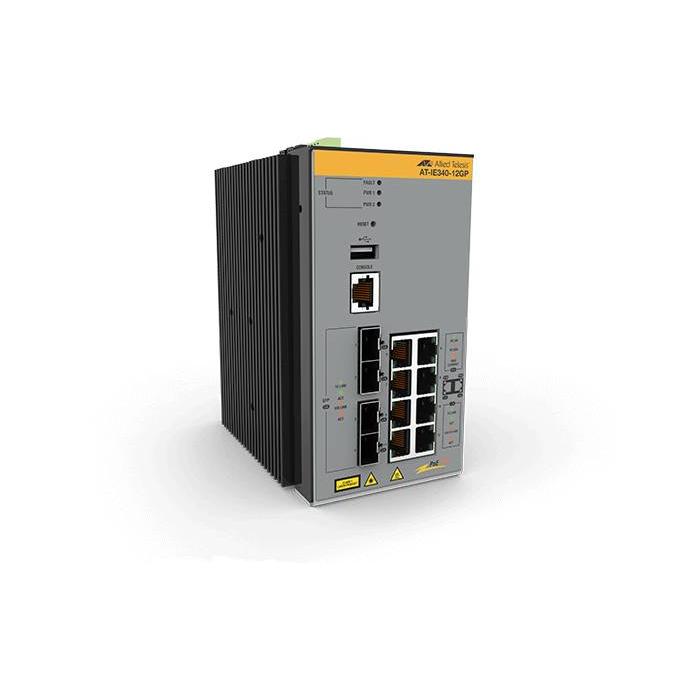

Name: Allied Telesis AT-IE340-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Brand: ALLIED TELESIS
Availability: OutOfStock

Allied Telesis AT-IE340-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Not avaliable

Allied Telesis AT-IE340-12GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 86487 PRC: 304620 EAN: 767035218977 PN: 990-006296-80

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic classification: Yes
Traffic shaping: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Console port: RJ-45
USB 2.0 ports quantity: 1

Network

Networking standards: IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.
10G support: No
Port mirroring: Yes
Full duplex: Yes
Policy-based routing: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 24 Gbit/s
Forwarding rate: 17.8 Mpps
MAC address table: 16000 entries
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Password protection: Yes

Multicast features

Multicast support: Yes

Protocols

Routing protocols: BGP, OSPF, RIP

Design

Rack mounting: No
Stackable: No
Product colour: Grey
Housing material: Aluminium, Metal
LED indicators: Yes
International Protection (IP) code: IP30
Wall mountable: Yes
DIN rail mounting: Yes
Electromagnetic compatibility: EN 55024, EN 61000-6-2

Performance

Memory type: DDR-SDRAM
Internal memory: 512 MB
Flash memory: 128 MB
Fanless: Yes
Export Control Classification Number (ECCN): 5A992C

Power

Power supply included: No
Redundant power supply (RPS) support: Yes
DC input voltage: 18 - 57 V
Power consumption (max): 271 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 90%
Operating altitude: 0 - 3000 m
Heat dissipation: 105.8 BTU/h

Weight & dimensions

Width: 91 mm
Depth: 139 mm
Height: 153 mm
Weight: 2.34 kg

Certificates

Certification: CE, FCC, ICES, RCM, TEC8, UL, VCCI RoHS, China-RoHS, WEEE

Logistics data

Harmonized System (HS) code: 85176990
