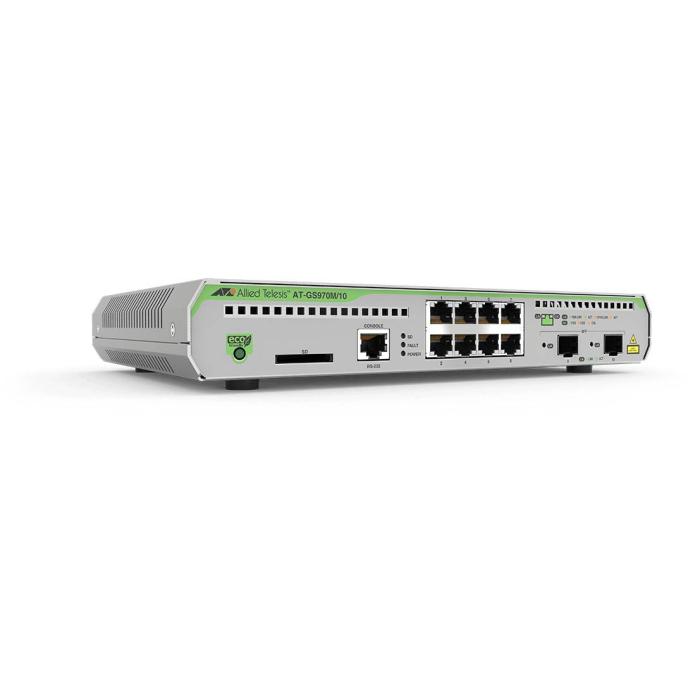

Allied Telesis AT-GS970M/10PS-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
More info
Brand: ALLIED TELESIS
791.84 €
654.41 €
without VAT
incl. 21 % VAT
Stock available: 1 ud.
Get it
on the
October 19
/
October 20
SKU:
118651
PRC:
203947
EAN:
767035211572
PN:
990-005799-50
Description
The Allied Telesis AT-GS970M/10PS-50 managed switch is an L3 device in black and grey designed for enterprise networks. It offers 8 Gigabit Ethernet (10/100/1000) RJ-45 ports and 2 SFP slots to expand connectivity. Its management is carried out via web and it supports quality of service (QoS), VLAN with up to 2048 virtual networks and virtual LAN functions such as Private VLAN and Port-based VLAN. It incorporates an RJ-45 console port and is powered via a DC input socket. The MAC address table supports 16000 entries and the packet buffer memory is 1.5 MB, with a latency of 7.8 µs on 10-100 Mbps traffic. It supports link aggregation and copper cabling technologies 10BASE-T, 100BASE-TX and 1000BASE-TX. Its dimensions are 210 x 42.5 x 275 mm (width x height x depth) and its weight is 2.1 kg, in 1U format for rack mounting.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- Console port: RJ-45
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 80
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX
- Link aggregation: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Port-based VLAN
- Number of VLANs: 2048
Data transmission
- Switching capacity: 20 Gbit/s
- Throughput: 14.9 Mpps
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 7.8 µs
- Latency (1 Gbps): 3.4 µs
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 1.5 MB
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black, Grey
- LED indicators: Yes
- Safety: FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1
Performance
- Memory type: DDR-SDRAM
- Internal memory: 256 MB
- Flash memory: 64 MB
- Noise level: 33 dB
Power
- Power consumption (max): 16 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 4000 m
- Heat dissipation: 55 BTU/h
Weight & dimensions
- Width: 210 mm
- Depth: 275 mm
- Height: 42.5 mm
- Weight: 2.1 kg
Packaging data
- Package width: 430 mm
- Package depth: 360 mm
- Package height: 150 mm
- Package weight: 3.45 kg
Logistics data
- Harmonized System (HS) code: 85176990
