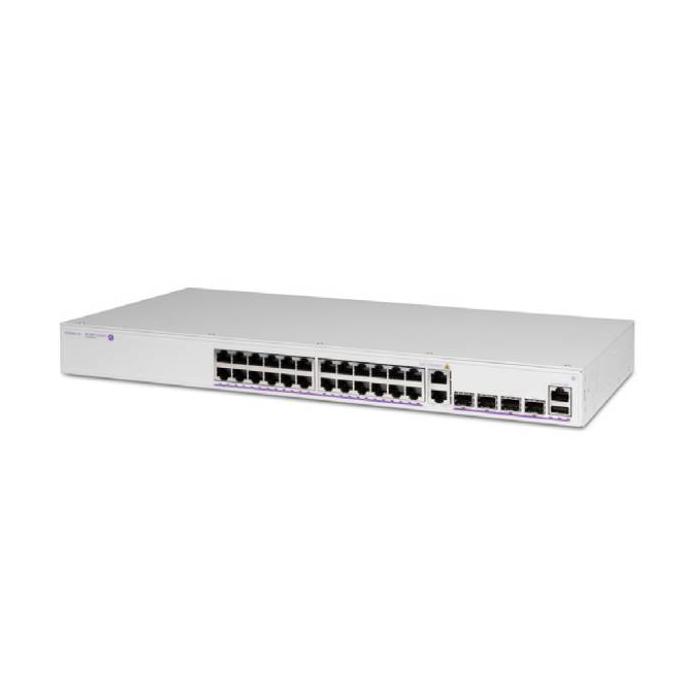

Alcatel-Lucent Enterprise OmniSwitch 6360-24 - Stackable Gigabit Ethernet LAN Switch

Product 1 image

Alcatel-Lucent Enterprise OmniSwitch 6360-24 - Stackable Gigabit Ethernet LAN Switch

Not avaliable

Amount

Brand: ALCATEL-LUCENT

SKU: 96531 PRC: 396666 EAN: 3326744978335 PN: OS6360-24-EU

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802
10G support: No
Port mirroring: Yes
Policy-based routing: Yes
Flow control support: Yes
Link aggregation: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Auto-sensing: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Tagged VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 92 Gbit/s
Throughput: 68.5 Mpps
MAC address table: 16000 entries
Static route: Yes
Jumbo frames support: Yes
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS
Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Stainless steel
LED indicators: Yes
Number of fans: 1 fan(s)

Performance

Built-in processor: Yes
Processor frequency: 800 MHz
Internal memory: 1024 MB
Flash memory: 1000 MB
Noise level: 42 dB
Mean time between failures (MTBF): 2595000 h

Power

Power source: AC
Power supply included: Yes
Power consumption (max): 24 W
Power plug type: Type G

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Heat dissipation: 82 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm
Weight: 3.1 kg
