Description

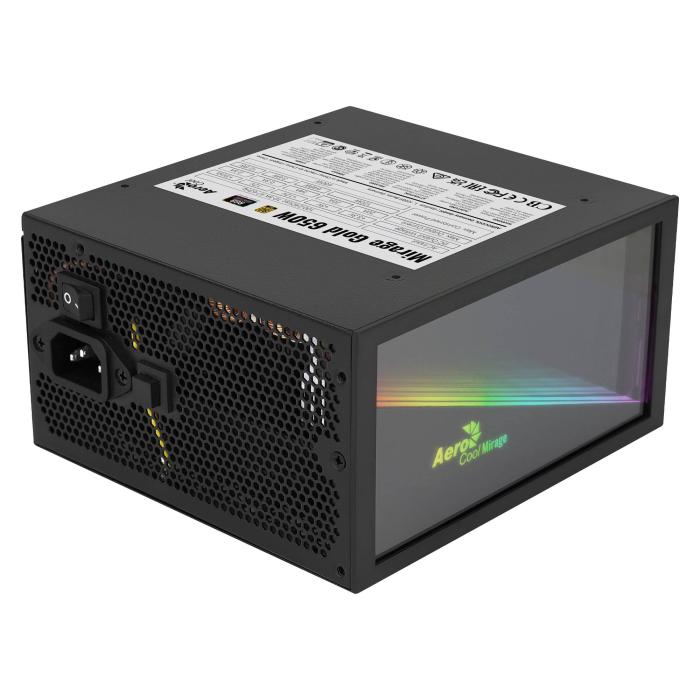

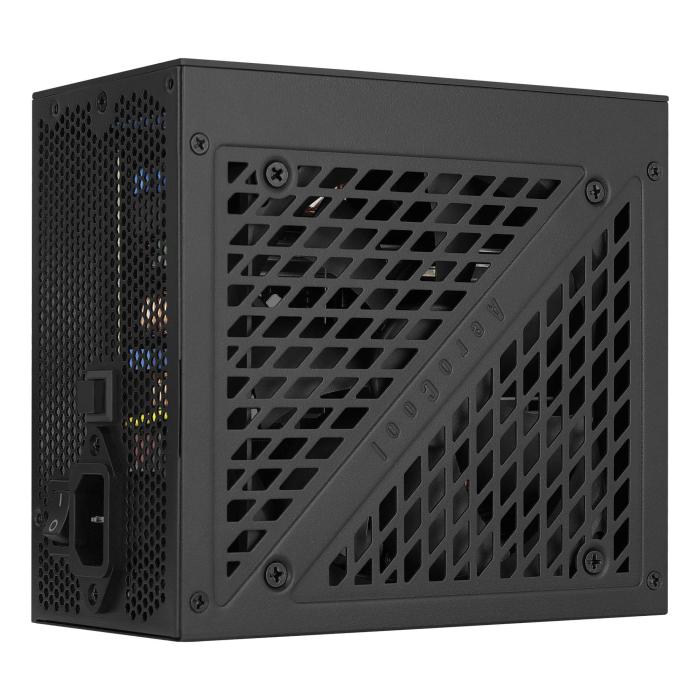

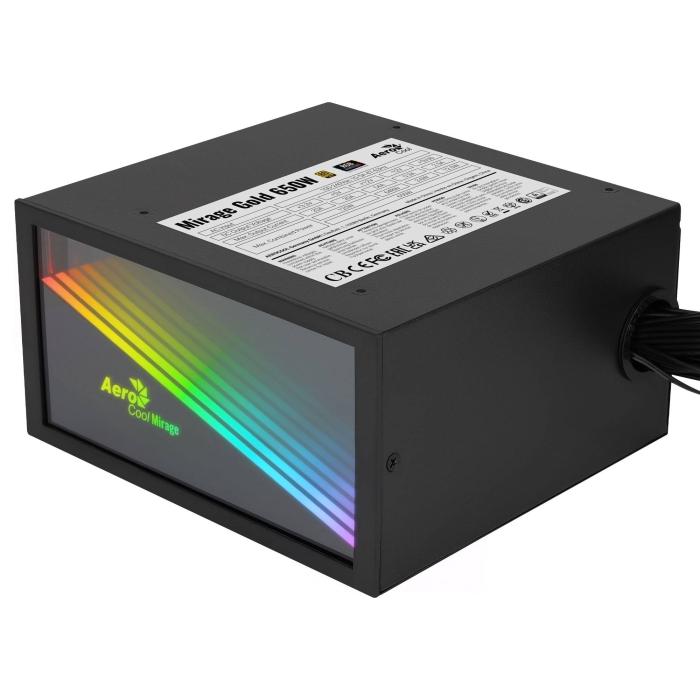

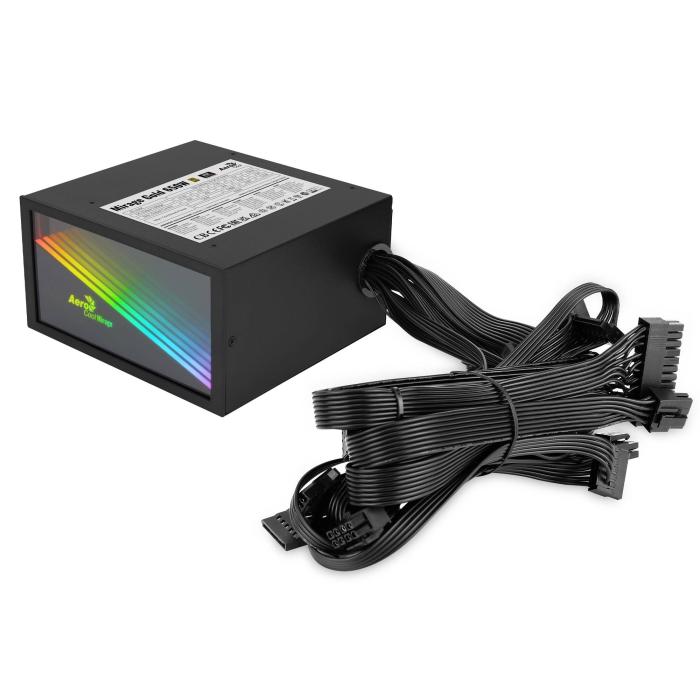

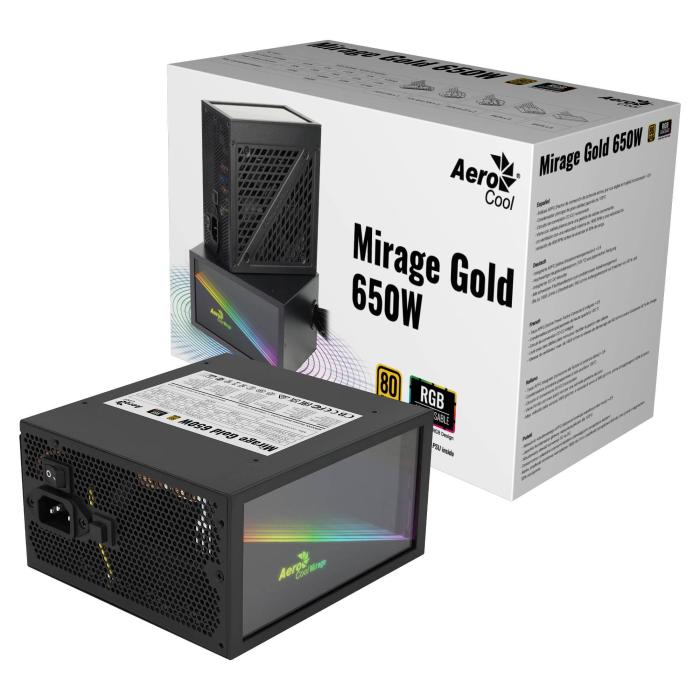

PC power supply Aerocool MIRAGEGOLD650 650 W with 80 PLUS Gold certification, black colour and ATX form factor. It features a 12 cm fan and delivers 90% efficiency. It supports an AC input voltage of 100 - 240 V with a frequency of 47 - 63 Hz and an input current of 10 - 5 A. Its non-modular cabling includes a 20+4 pin ATX motherboard power connector, 6 SATA power connectors, 3 PATA connectors and 2 6 + 2 pin PCI Express connectors. The combined power of the +12 V rail is 648 W, with a maximum output current of 54 A, while the 3.3 V rail delivers 120 W and 20 A. It is based on the ATX 2.52 version and is intended for use with a PC.
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 10 - 5 A
- Combined power (+3.3V): 120 W
- Combined power (+12V): 648 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 54 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- Number of PATA power connectors: 3
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.52
Design
- Product colour: Black
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
Certificates
- Compliance certificates: RoHS
