Description

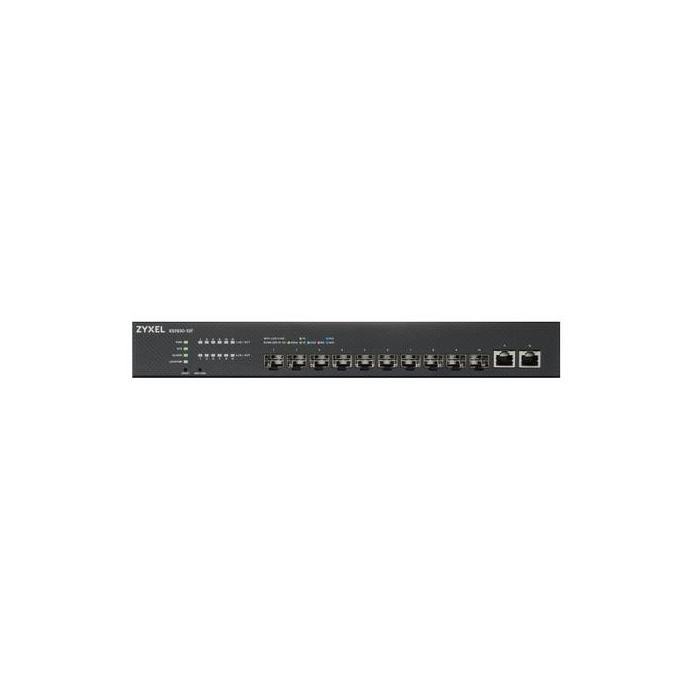

The Zyxel XS1930-12F-ZZ0101F is a managed L2/L3 layer switch in black, designed for networks that demand control and speed. It offers 10G support and a data transfer rate of 1000, 2500, 5000 and 10000 Mbit/s, with ten slots for SFP+ modules. It can be managed via the web and supports configuration of location settings via CLI, as well as MIB support. It incorporates quality of service (QoS), ARP inspection, VLAN support and spanning tree protocol, together with flow control, storm transmission control, link aggregation and port mirroring. It complies with the IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an and IEEE 802.3z network standards, and is powered via an AC-in power connector. Its dimensions are 484 x 79 x 337 mm (width x height x depth), with a weight of 3.63 kg.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- MIB support: Yes
Ports & interfaces
- SFP+ module slots quantity: 10
- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s
- VLAN support: Yes
- Number of VLANs: 4000
Data transmission
- Switching capacity: 240 Gbit/s
- Forwarding rate: 178.5 Mpps
- MAC address table: 16000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 2 MB
Security
- DHCP features: DHCP client, DHCP relay
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS, SHA-2, SSL/TLS
- SSH/SSL support: Yes
- Loop protection: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
Performance
- Internal memory: 256 MB
- Flash memory: 32 MB
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 24.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 84.91 BTU/h
Weight & dimensions
- Width: 484 mm
- Depth: 337 mm
- Height: 79 mm
- Weight: 3.63 kg
Logistics data
- Harmonized System (HS) code: 85176990
