Description

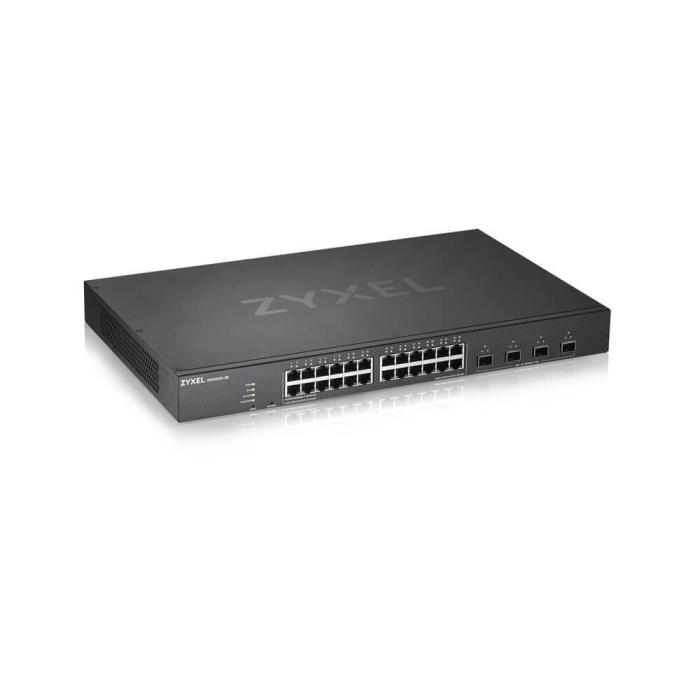

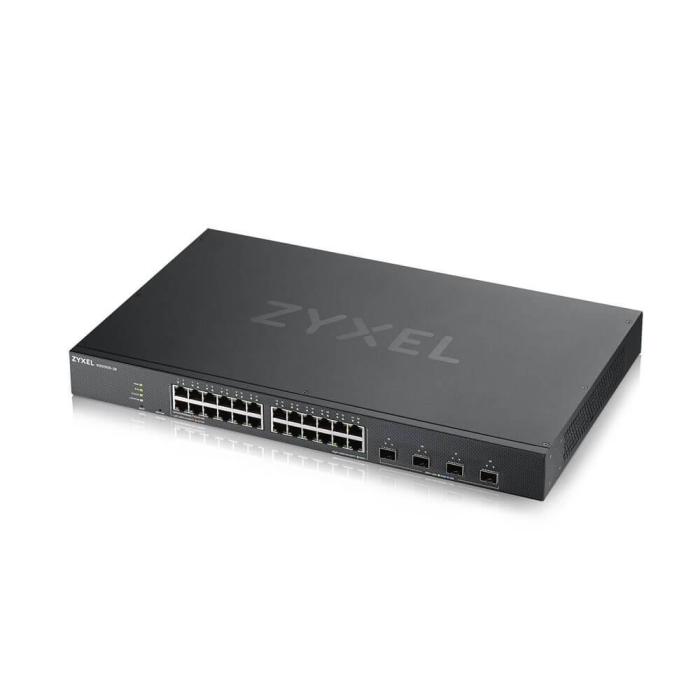

Zyxel XGS1930-28, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- Fiber optic connector: SFP+
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- IP routing: Yes
- Routing entries: 32
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Voice VLAN, Port-based VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 128 Gbit/s
- Forwarding rate: 95.2 Mpps
- MAC address table: 16000 entries
- Static route: Yes
- Path MTU discovery: Yes
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP relay, DHCPv6 relay, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS
- SSH/SSL support: Yes
- Loop protection: Yes
- Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
- Password protection: Yes
- CPU defense: Yes
Multicast features
- Multicast support: Yes
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Product colour: Black
- Safety: LVD, BSMI
- Electromagnetic compatibility: FCC 15 A, CE A, BSMI EMC
Performance
- Internal memory: 512 MB
- Flash memory: 32 MB
- Noise level: 0 dB
- Mean time between failures (MTBF): 1211024 h

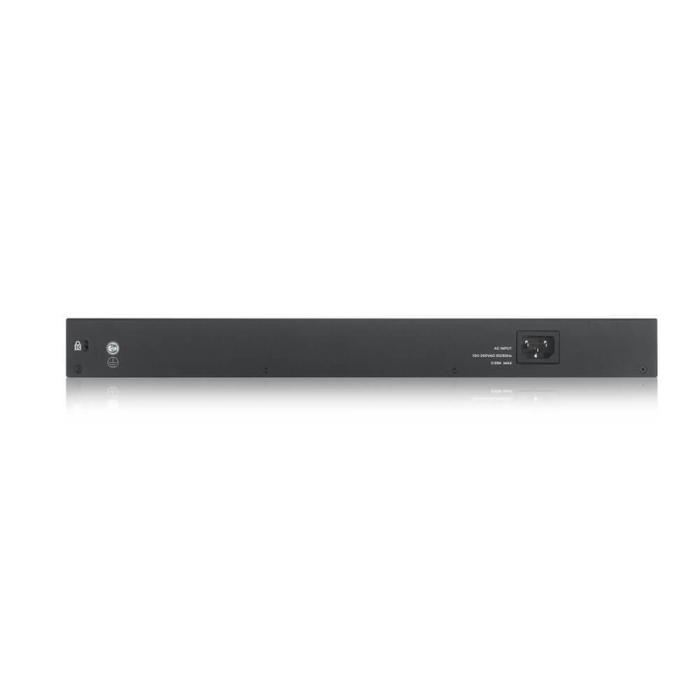

Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 24.6 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 95%
- Heat dissipation: 83.886 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 270 mm
- Height: 44 mm
- Weight: 3.4 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Packaging data
- Package width: 616 mm
- Package depth: 355 mm
- Package height: 107 mm
- Package weight: 4.47 kg
Certificates
- Certification: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
