Description

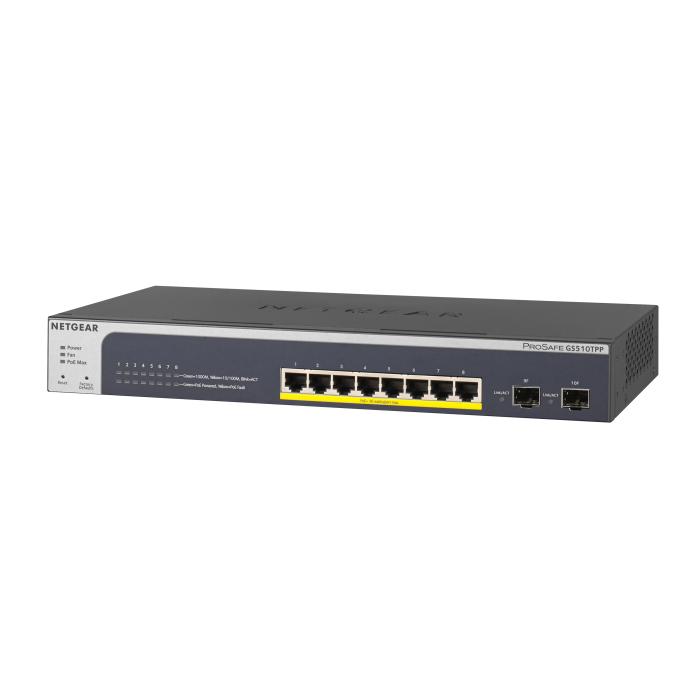

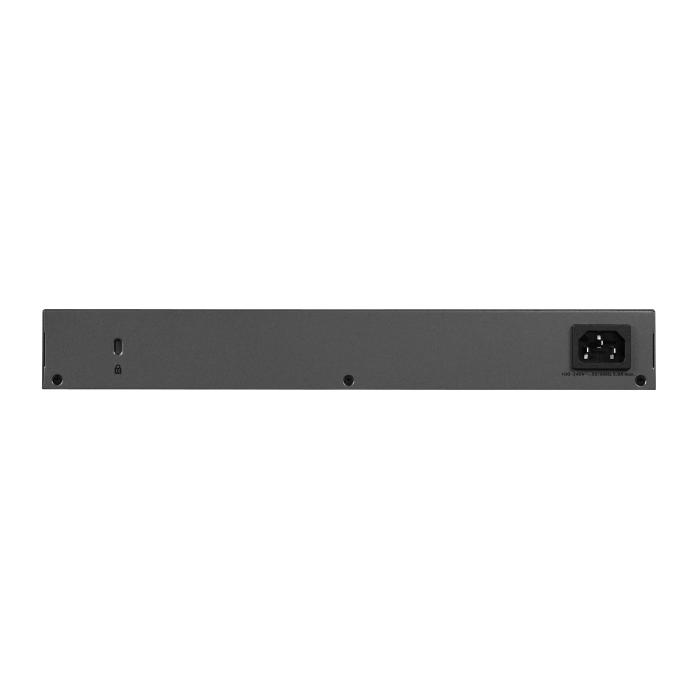

The NETGEAR GS510TPP managed switch comes in black and offers 10/100/1000 Mbit/s Gigabit Ethernet connectivity. It incorporates eight Gigabit Ethernet RJ-45 ports and two slots for SFP modules, as well as an RJ-45 console port and DC input jack. As an L2/L3/L4 managed switch, it supports QoS, VLAN with up to 256 virtual networks and spanning tree protocol. It also supports storm transmission control, link aggregation, flow control and full-duplex operation. Its copper cabling technology covers 10BASE-T, 100BASE-T and 1000BASE-T. With dimensions of 328 x 43 x 169 mm (width x height x depth) and a weight of 1.83 kg, it integrates into network installations that require segmentation and advanced traffic management.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3/L4
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- Console port: RJ-45
- Power connector: DC-in jack
Network
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Number of VLANs: 256
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- Full duplex: Yes
- Flow control support: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- MAC address table: 16000 entries
- Latency (1 Gbps): 3.313 µs
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1.5 MB
Security
- Access Control List (ACL): Yes
- Access Control List (ACL) rules: 100
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
- Number of multicast groups filtered: 512
Design
- Rack mounting: Yes
- Product colour: Black
Performance
- Built-in processor: Yes
- Processor frequency: 400 MHz
Power
- Power source: PoE
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 190 W
Weight & dimensions
- Width: 328 mm
- Depth: 169 mm
- Height: 43 mm
- Weight: 1.83 kg
Packaging content
- Rack mount kit: Yes
Logistics data
- Harmonized System (HS) code: 85176990
