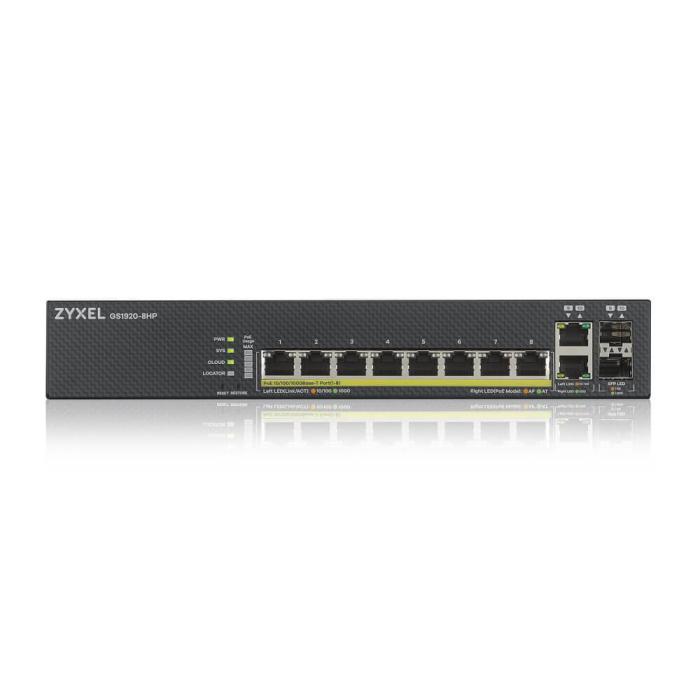

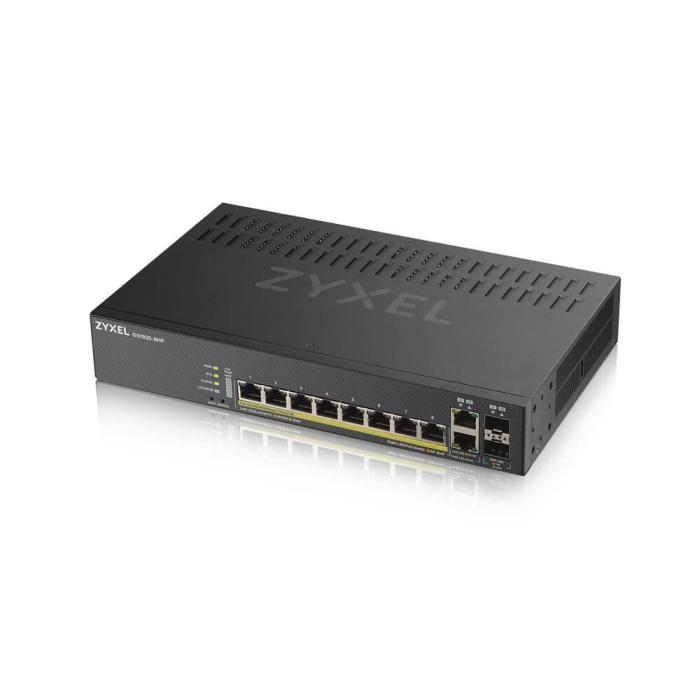

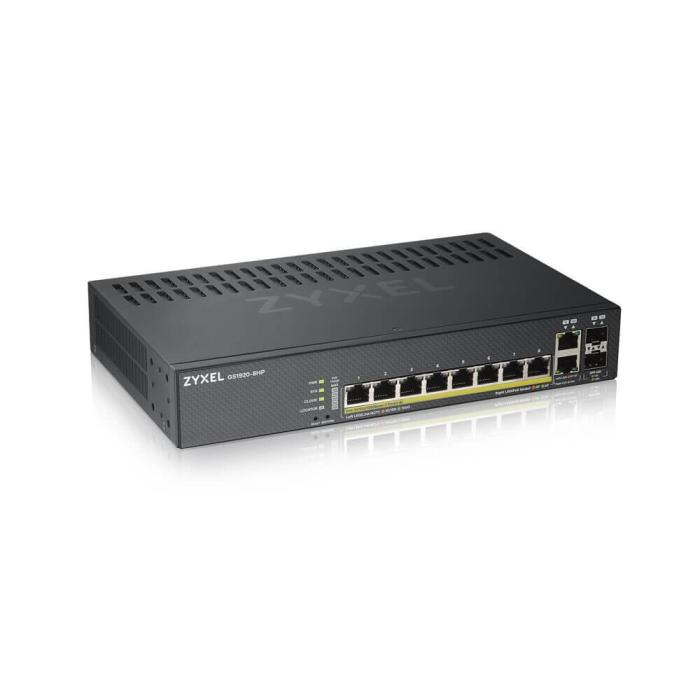

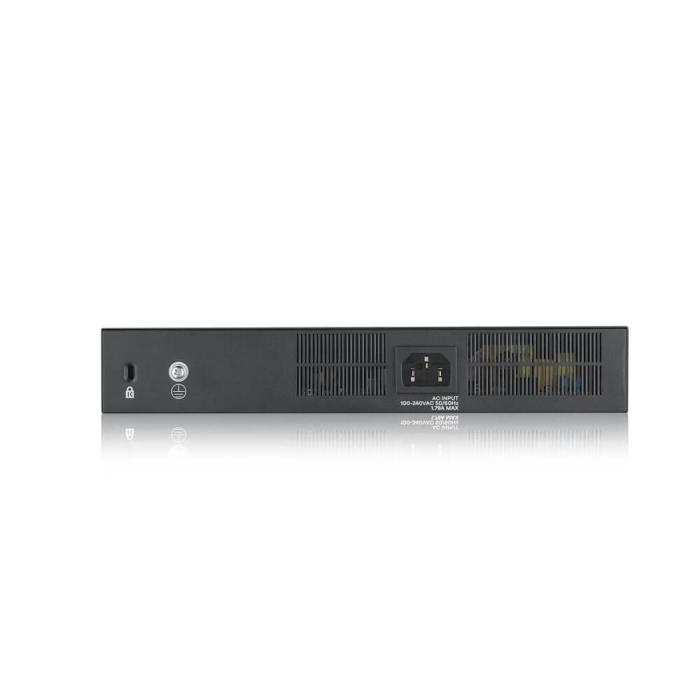

Name: Zyxel GS1920-8HPV2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: ZYXEL
Price: 168.54 USD
Availability: InStock

Zyxel GS1920-8HPV2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

$168.54

$168.54 without VAT

Zyxel GS1920-8HPV2 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black. More info

Amount

Brand: ZYXEL

SKU: 81233 PRC: 235986 EAN: 4718937602230 PN: GS1920-8HPV2-EU0101F

Description

Specifications

Management features

Switch type: Managed
Quality of Service (QoS) support: Yes
ARP inspection: Yes
System event log: Yes
MIB support: RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Fiber optic connector: SFP

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802
10G support: No
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T
Flow control support: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 15 Mpps
MAC address table: 16000 entries
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SNMP, SNMPv3
MAC address filtering: Yes
IP-MAC-Port binding: Yes
Authentication: Guest VLAN, Port-based authentication
Password protection: Yes
Authentication type: IEEE 802.1x, RADIUS
CPU defense: Yes
Queue scheduling algorithms: SPQ, WFQ, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Design

Rack mounting: No
Product colour: Black
LED indicators: Yes
Wall mountable: Yes
Safety: LVD, BSMI
Electromagnetic compatibility: FCC 15 A, CE A, BSMI EMC

Performance

Noise level: 0 dB
Mean time between failures (MTBF): 513985 h
Internal memory: 256 MB
Flash memory: 32 MB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 161.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Total Power over Ethernet (PoE) budget: 130 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Heat dissipation: 551.74 BTU/h

Weight & dimensions

Width: 267 mm
Depth: 162 mm
Height: 44 mm
Weight: 1.9 kg

Packaging content

Cables included: AC

Packaging data

Package width: 375 mm
Package depth: 235 mm
Package height: 61 mm
Package weight: 2.73 kg

Certificates

Certification: RoHS

Logistics data

Harmonized System (HS) code: 85176990
