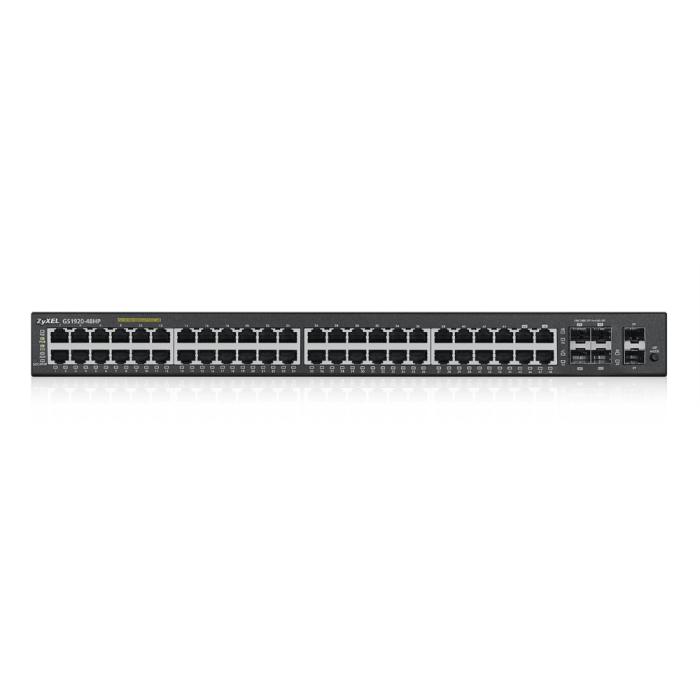

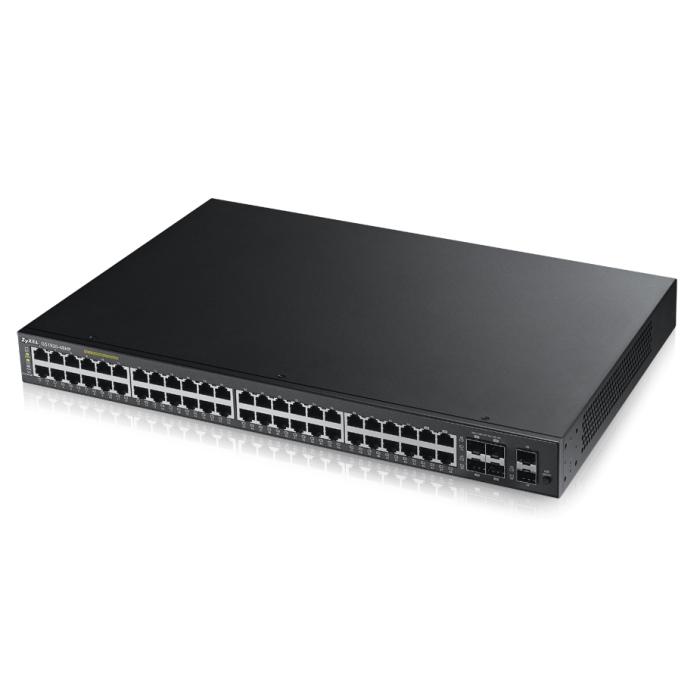

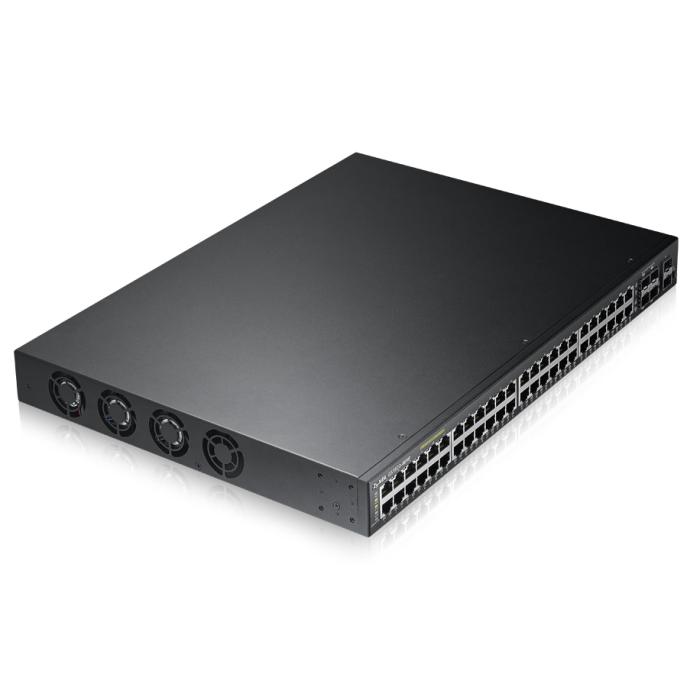

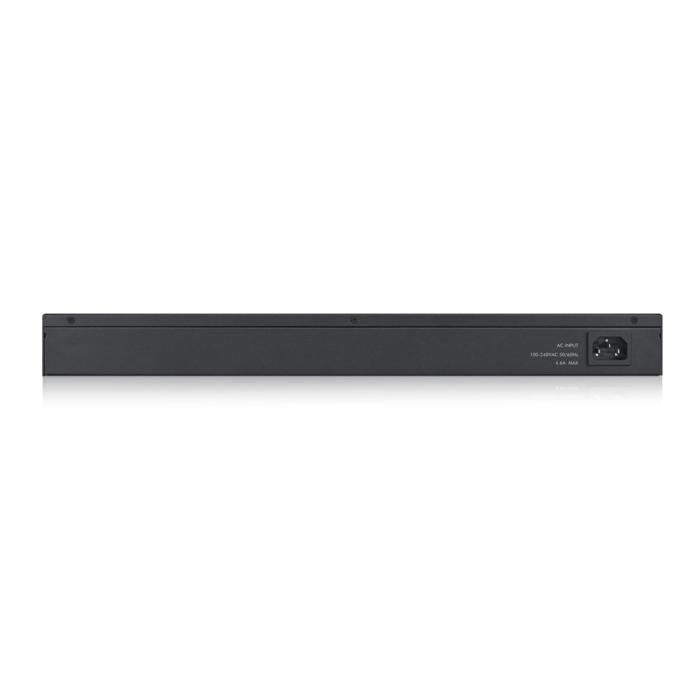

Zyxel GS1920-48HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Not avaliable

Zyxel GS1920-48HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black.   More info

Brand: ZYXEL
SKU: 113476 PRC: 56178 EAN: 4718937577262 PN: GS1920-48HP-EU0101F

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 44
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • QSFP+ module slots quantity: 2
  • Console port: RJ-45
  • Power connector: DC-in jack

Network

  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3
  • 10G support: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes

Data transmission

  • Switching capacity: 100 Gbit/s
  • Throughput: 74 Mpps
  • MAC address table: 16000 entries
  • Jumbo frames support: Yes

Security

  • DHCP features: DHCP client
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: 802.1x RADIUS, SSH, SSL/TLS

Multicast features

  • Multicast support: Yes

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Safety: LVD, BSMI

Performance

  • Mean time between failures (MTBF): 120761 h

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 503 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 48
  • Total Power over Ethernet (PoE) budget: 375 W

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 10 - 95%
  • Heat dissipation: 1572.01 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 330 mm
  • Height: 44.5 mm
  • Weight: 5.13 kg

Packaging data

  • Package type: Box
  • Package width: 586 mm
  • Package depth: 452 mm
  • Package height: 97 mm
  • Package weight: 6.25 kg

Certificates

  • Certification: FCC Part 15, CE EMC, BSMI ENC, RoHS
