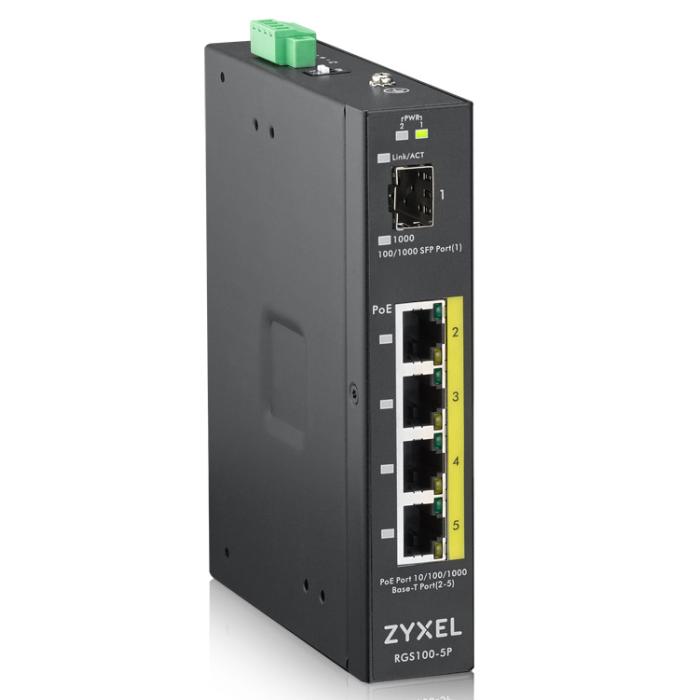

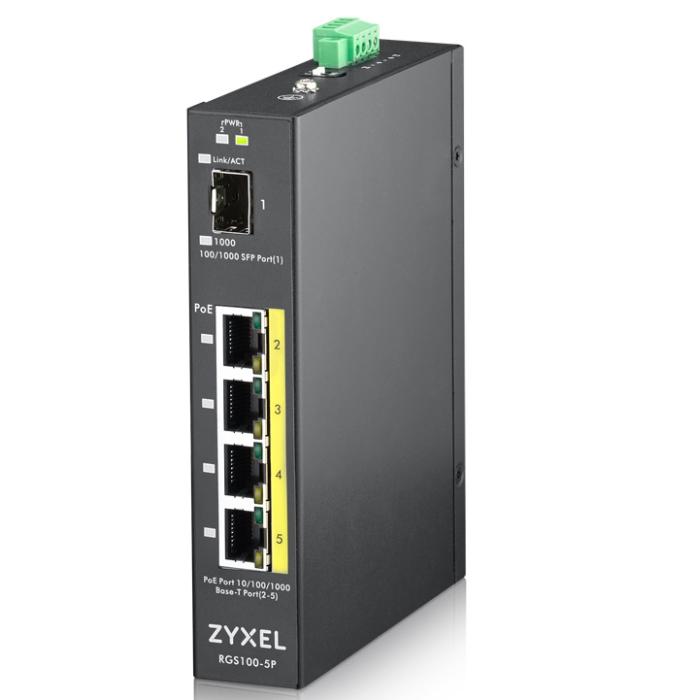

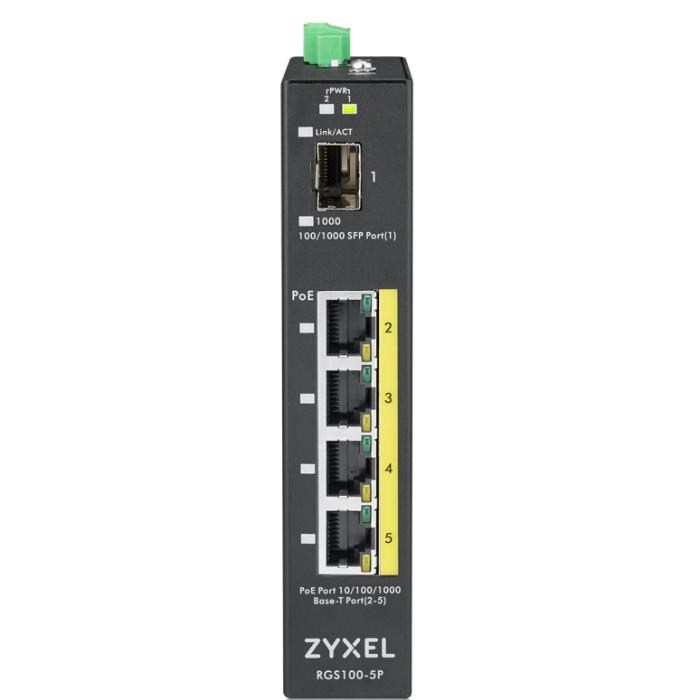

Name: Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: ZYXEL
Price: 346.59 USD
Availability: InStock

Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

$346.59

$346.59 without VAT

Amount

Brand: ZYXEL

SKU: 77636 PRC: 139937 EAN: 4718937592036 PN: RGS100-5P-ZZ0101F

Description

Zyxel RGS100-5P, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable

Specifications

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1
Fiber optic connector: SFP

Network

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
MAC address auto-learning supported: Yes
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X
Transmission distance (max): 40 km

Data transmission

Switching capacity: 10 Gbit/s
Throughput: 7.44 Mpps
MAC address table: 2000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 0.25 MB

Multicast features

Multicast support: Yes

Design

Rack mounting: Yes
Product colour: Black
Housing material: Metal
International Protection (IP) code: IP30
Wall mountable: Yes
DIN rail mounting: Yes

Performance

Plug and Play: Yes
Mean time between failures (MTBF): 568430 h

Power

DC input voltage: 12 - 58 V
Input voltage: 12 - 58 V
Power consumption (max): 125 W
Power protection features: Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 42625 BTU/h

Weight & dimensions

Width: 29.1 mm
Depth: 107.3 mm
Height: 139 mm
Weight: 500 g

Packaging content

Rack mount kit: Yes

Packaging data

Wall mounting kit: Yes
Package width: 70 mm
Package depth: 177.8 mm
Package height: 205 mm
Package weight: 700 g

Logistics data

Harmonized System (HS) code: 85176990
