Description

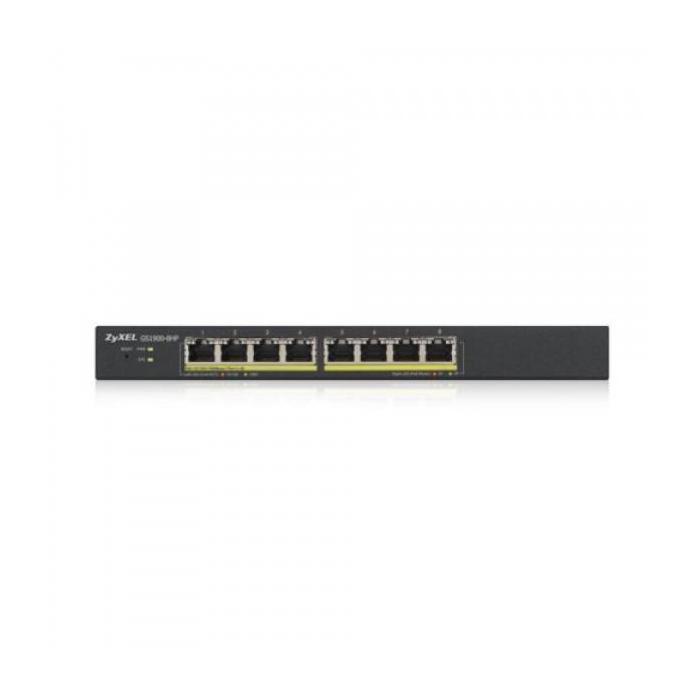

The Zyxel GS1900-8HP v3 managed switch, in black, offers 8 Gigabit Ethernet (10/100/1000) ports with RJ-45 connector and web-based management. Its L2 layer allows network segmentation through VLAN support and traffic prioritisation with quality of service (QoS). It incorporates flow control, storm control and rate limiting to keep performance stable. Switching reaches a capacity of 16 Gbit/s, with a MAC address table of 8000 entries and 8 transmission queues. It supports 9216-byte Jumbo frames and Auto MDI/MDI-X and full-duplex functions. Power is supplied via DC input jack. Its dimensions are 250 x 27 x 104 mm (width x height x depth) and its weight 710 g.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

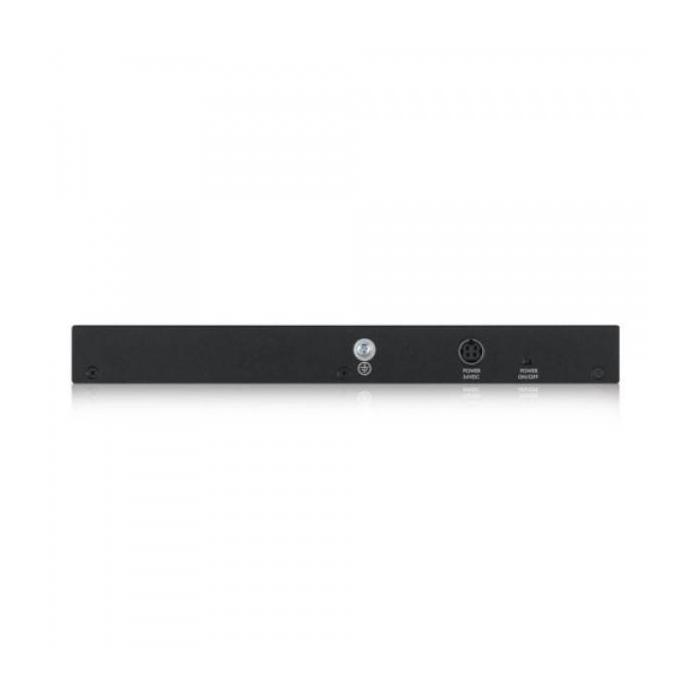

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 80
- Full duplex: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- MAC address table: 8000 entries
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
- MAC address filtering: Yes
Multicast features
- Multicast support: Yes
Design
- Product colour: Black
- Reset button: Yes
Performance
- Mean time between failures (MTBF): 533086 h
Power
- Power source: AC/DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 90 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 70 W
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 250 mm
- Depth: 104 mm
- Height: 27 mm
- Weight: 710 g
Certificates
- Certification: CE, FCC, C-Tick, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
Similar products
Few units left
Zyxel GS1900-8 Managed L2 Gigabit Ethernet (10/100/1000) Black
58.80 €
Get it
on the
October 16
/
on the
October 19
Few units left
Zyxel GS1200-8HP-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
53.90 €
Get it
on the
October 16
/
on the
October 19

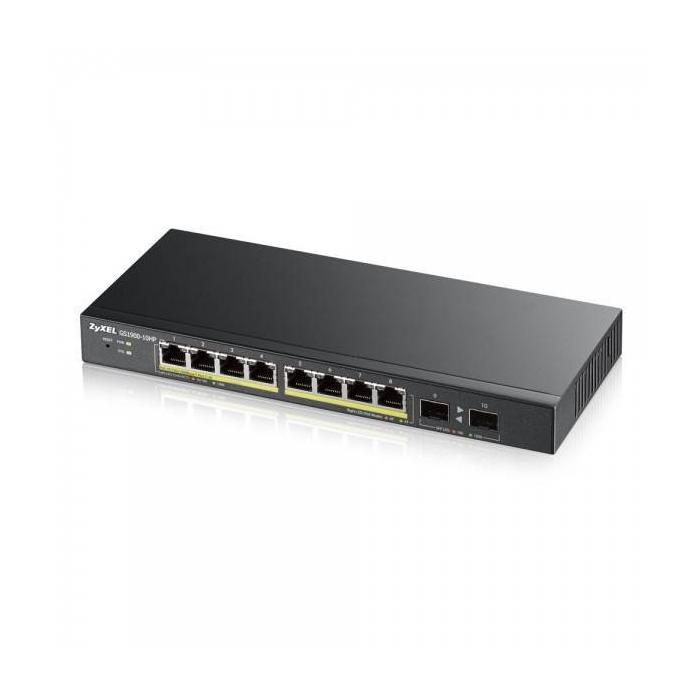

Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
