Description

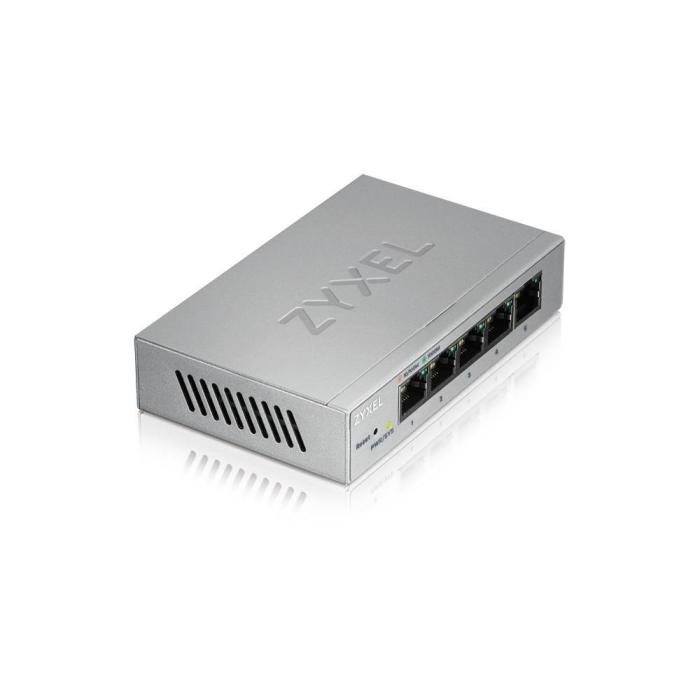

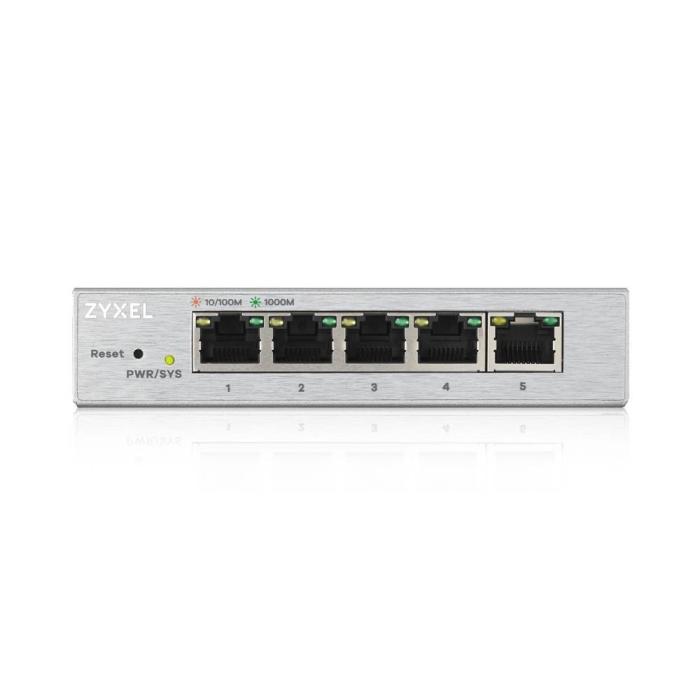

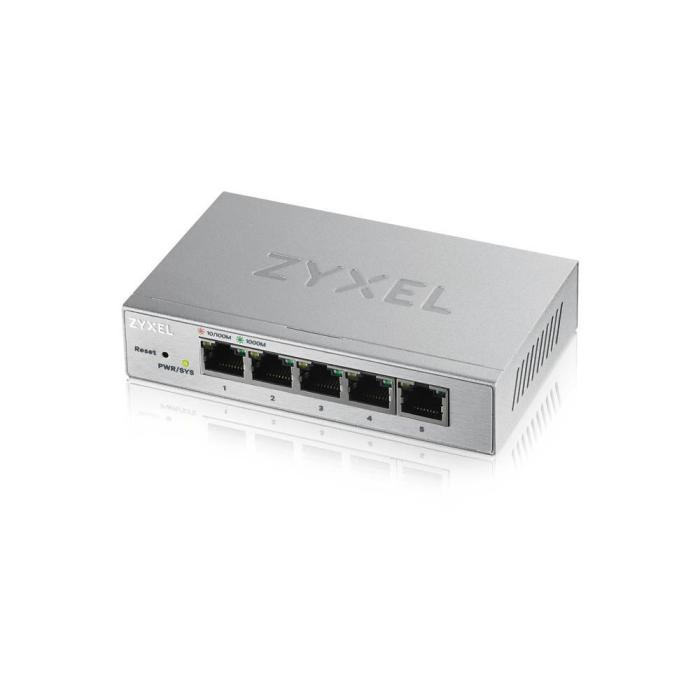

The Zyxel GS1200-5 managed switch in silver offers five Gigabit Ethernet (10/100/1000) RJ-45 ports to expand your home or small office network. Its management is carried out via web, with support for QoS, VLAN and flow control to prioritise critical traffic. It incorporates functions such as link aggregation, port mirroring and storm transmission control, and complies with the IEEE 802.1Q, 802.1p, 802.3ab, 802.3az, 802.3u, 802.3x and 802.3z standards. It reaches a switching capacity of 10 Gbit/s and manages a MAC address table of 2000 entries. It supports Jumbo Frames and has a packet buffer memory of 1 MB, as well as Auto MDI/MDI-X. It is powered via a DC input jack and its dimensions are 121 x 26 x 75 mm (width x height x depth), with a weight of 233 g.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

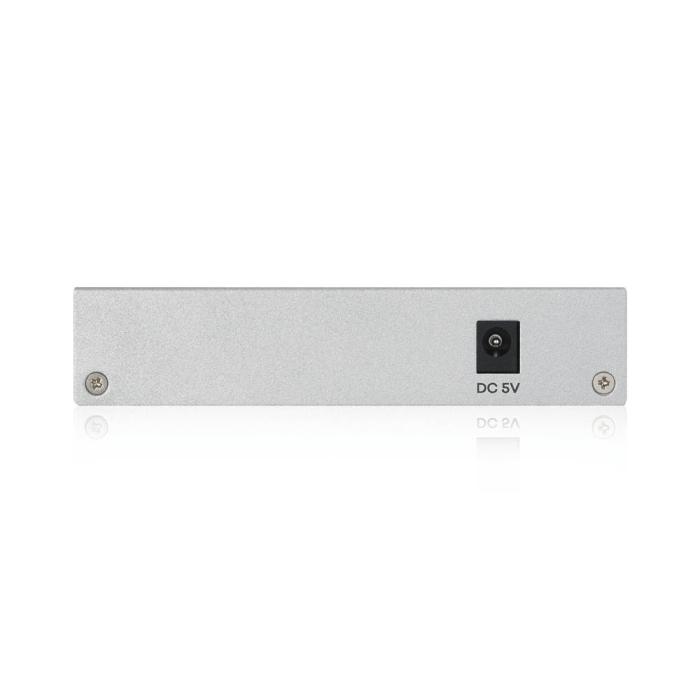

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- Authentication: Auto VLAN, MAC-based authentication
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: IGMPv1,IGMPv2,IGMPv3
Design
- Rack mounting: No
- Product colour: Silver
- LED indicators: Power
- Safety: CE-LVD, BSMI
- Electromagnetic compatibility: CE, FCC, BSMI, Class B
Performance
- Firmware upgradeable: Yes
Power
- DC input voltage: 5 V
- Input current: 1 A
- Power consumption (max): 2.03 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 121 mm
- Depth: 75 mm
- Height: 26 mm
- Weight: 233 g
Packaging content
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
- Package type: Box
- Rubber feet: Yes
- Package width: 127 mm
- Package depth: 82 mm
- Package height: 95 mm
- Package weight: 388 g
Logistics data
- Harmonized System (HS) code: 85176990
